MX-M503N MX-RP11 28 – 1
MX-M503N
Service Manual
[28] MX-RP11

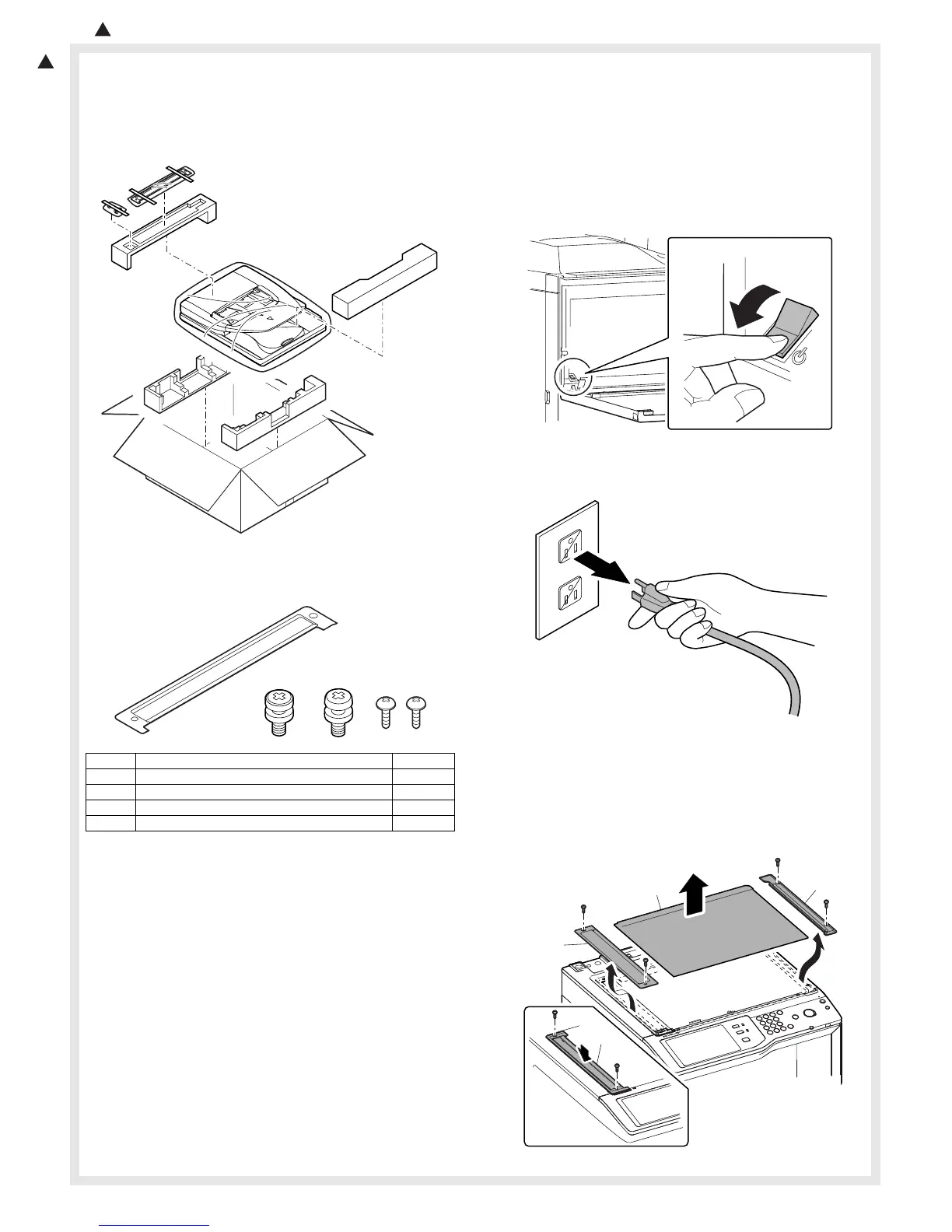

1. Unpacking
A. Removal of the RSPF
B. Check the packed items
1) Check that all the items are included in the package.
2. Installation
<Note before installation>
* Before starting installation, check to insure that the data lamp on
the operation panel does not light up or blink.
A. Turn off the power of the main unit.
1) Turn OFF the power switch on the operation panel.
2) Open the front cabinet.
Turn OFF the power switch in the front cabinet of the main unit.
3) Disconnect the power plug of the main unit from the power out-
let.
B. RSPF unit installation
1) Remove the screws, and remove the glass holder (A).
Remove the table glass (B).
Remove the screws, and remove the glass holding left OC (C).
Arrange the SPF glass unit (D) (package part No. 1) and
tighten the screws.
No. Names of bundles Quantity
1 SPF glass unit 1
2 Step screw R 1
3 SPF step screw R 1
4 Screw (M5 x 16) 2
To Next Page
