MX-M503N MX-RP11 28 – 2

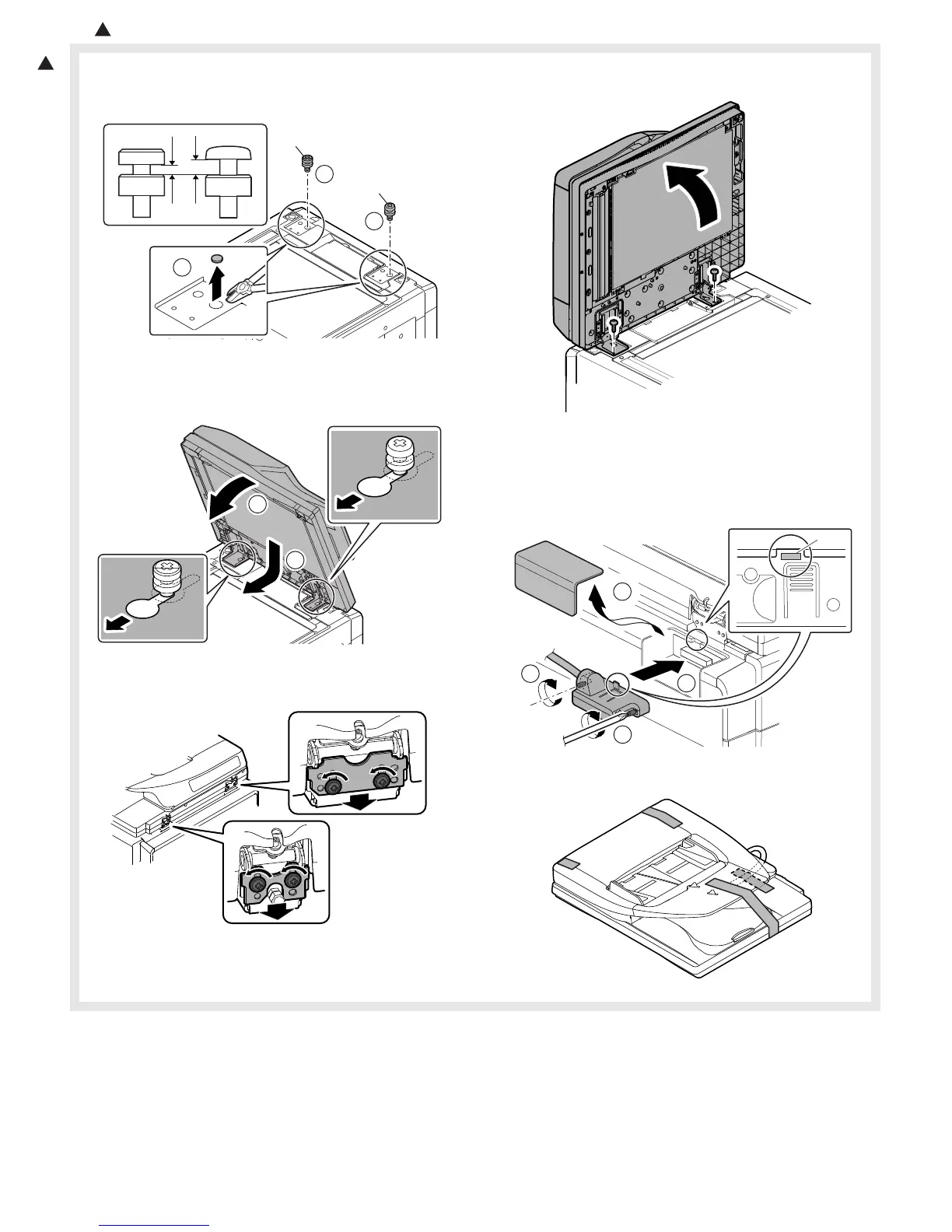

2) Cut the screw hole in the cabinet, and install the SPF step
screw R (a) (package part No. 3) and the step screw R (b)
(package part No. 2).
3) Insert the SPF step screw R and the step screw R into the
screw hole in the hinge section of the RSPF unit. Slide the unit
toward the front side and close.
4) Loosen the screw on the angle adjustment plate in the rear
side of the machine and lower the angle adjustment plate.
5) Raise the RSPF unit upright, and fix it with the accessory
screw (M5 x 16) (package part No. 4).
6) Remove the connector cover. Connect the interface connector.
Check to insure that the projection (A) of the interface connec-
tor is in the groove on the main unit side as shown in the fig-
ure.
Tighten the connector fixing screw.
7) Remove the fixing tape.
To Next Page
