MX-M503N MX-FN11 9 – 1
MX-M503N
Service Manual
[9] MX-FN11
1. Unpacking
A. Removal of the finisher
* For removal of the finisher, manpower of two persons or more is
required.

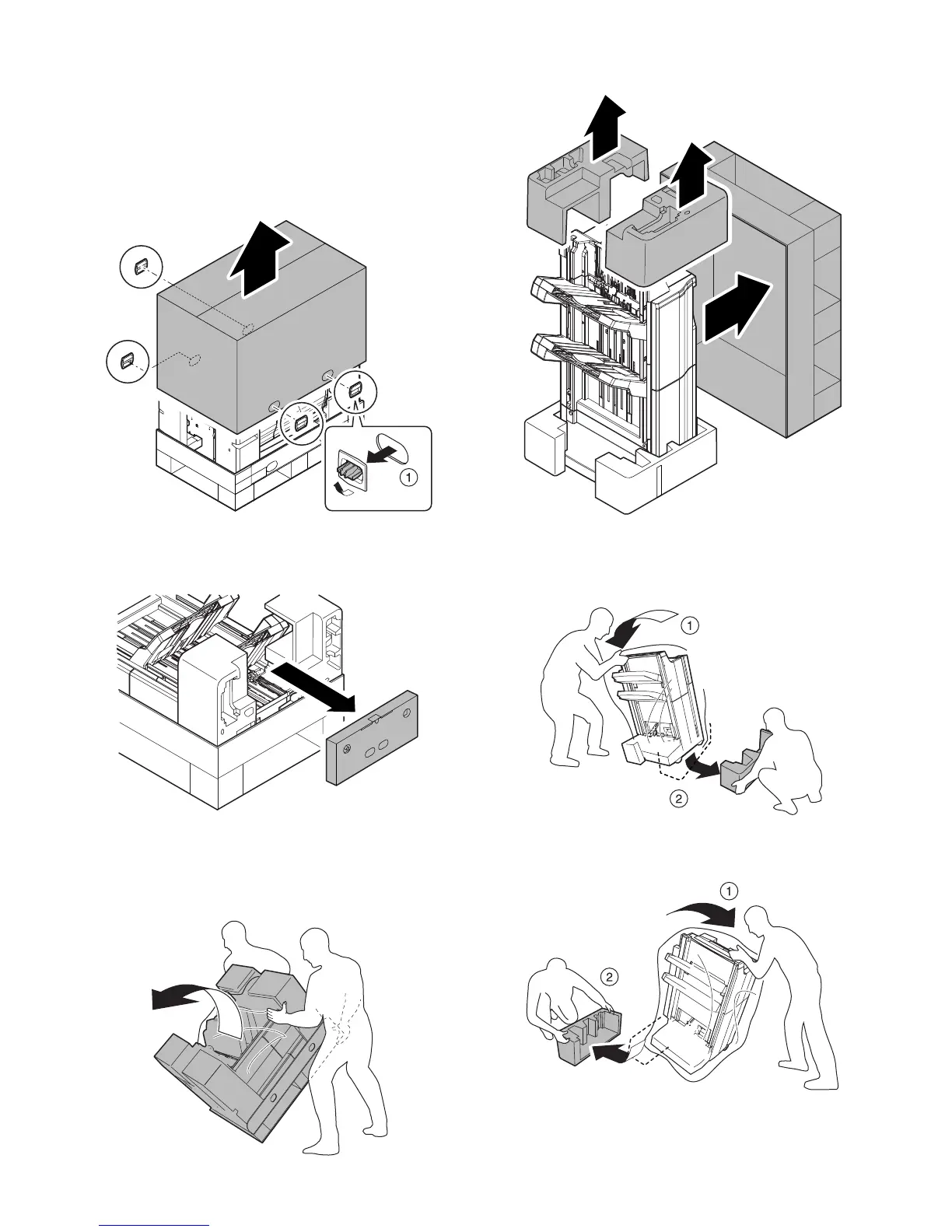

1) Remove the fixing material, and remove the top case.
2) Remove the bundled items from packing cushion.
3) Holding the upper part of the saddle stitch finisher by two peo-
ple, pull up the saddle stitch finisher, and make it stand upright.
(Be careful to sliding worker's foot.)
4) Remove the skid and packing cushions.
5) One person tilt the finisher, another person remove the lower
tray.
6) Remove the other side similarly.
To Next Page
