MX-M503N MX-LCX1 3 – 1
MX-M503N
Service Manual
[3] MX-LCX1

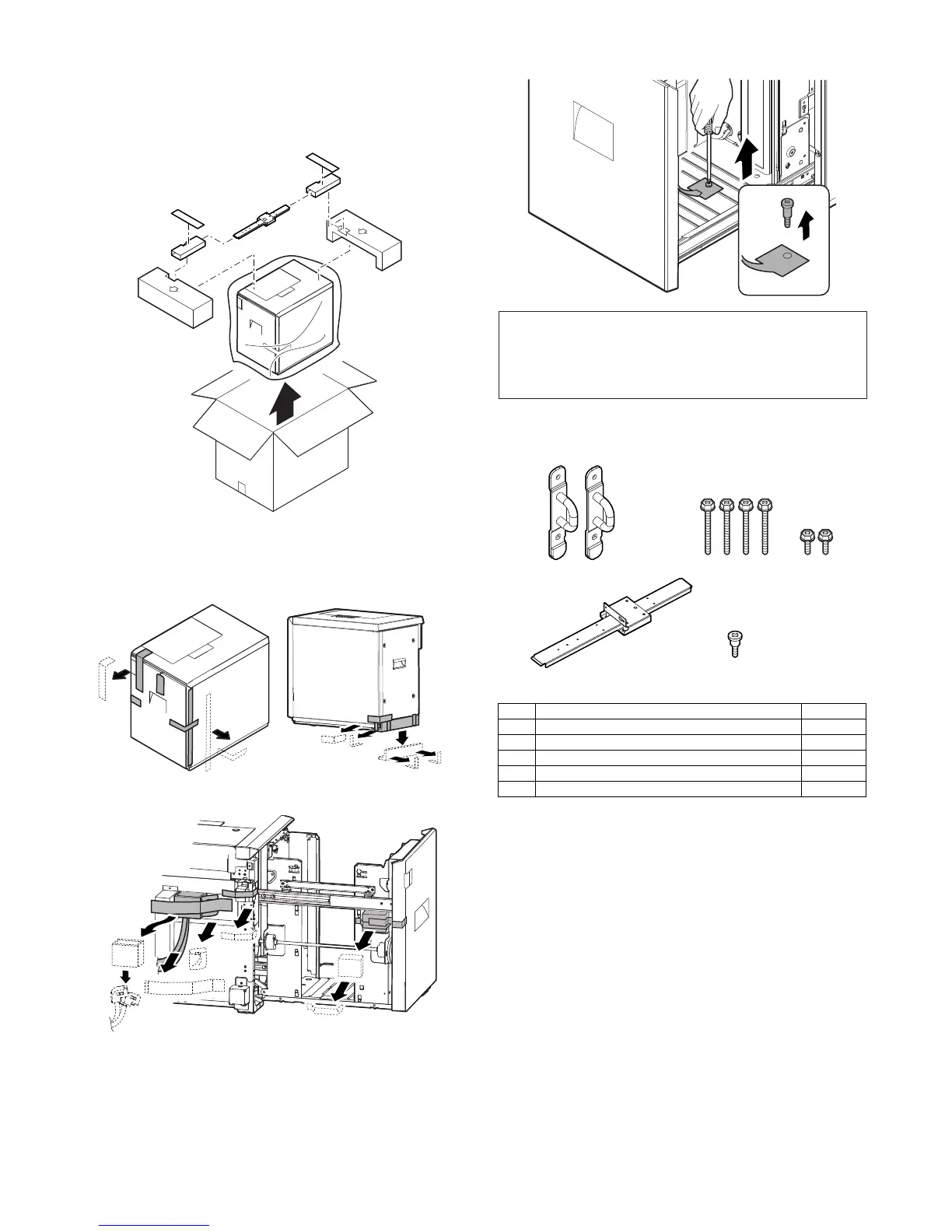

1. Unpacking
A. Removal of the large capacity tray unit
B. Removal of the fixing material and packing
parts
1) Remove the fixing material.
2) Remove the fixing material and the packing parts.
3) Remove the paper feed desk fixing screw.
C. Check the packed items
1) Check that all the items are included in the package.
2. Installation
<Note before installation>
* Before starting installation, check to insure that the data lamp on
the operation panel does not light up or blink.
A. Turn off the power of the main unit
1) Turn OFF the power switch on the operation panel.
No. Names of bundles Quantity
1 Mounting plate upper 2
2 Connection unit 1
3 Fixing screw A (Hexagon with seat, S-tight, M4 x 35) 4
4 Fixing screw B (Hexagon with seat, S-tight, M4 x 12) 2
5 Fixing screw C (screw 4 x 8 cup) 1
NOTE:
Before turning on the power, check to insure that the fixing
screw of the tray is removed. If the power is turned on
without removing the fixing screw, a trouble may be
resulted.
To Next Page
