MX-M503N MX-LCX1 3 – 2

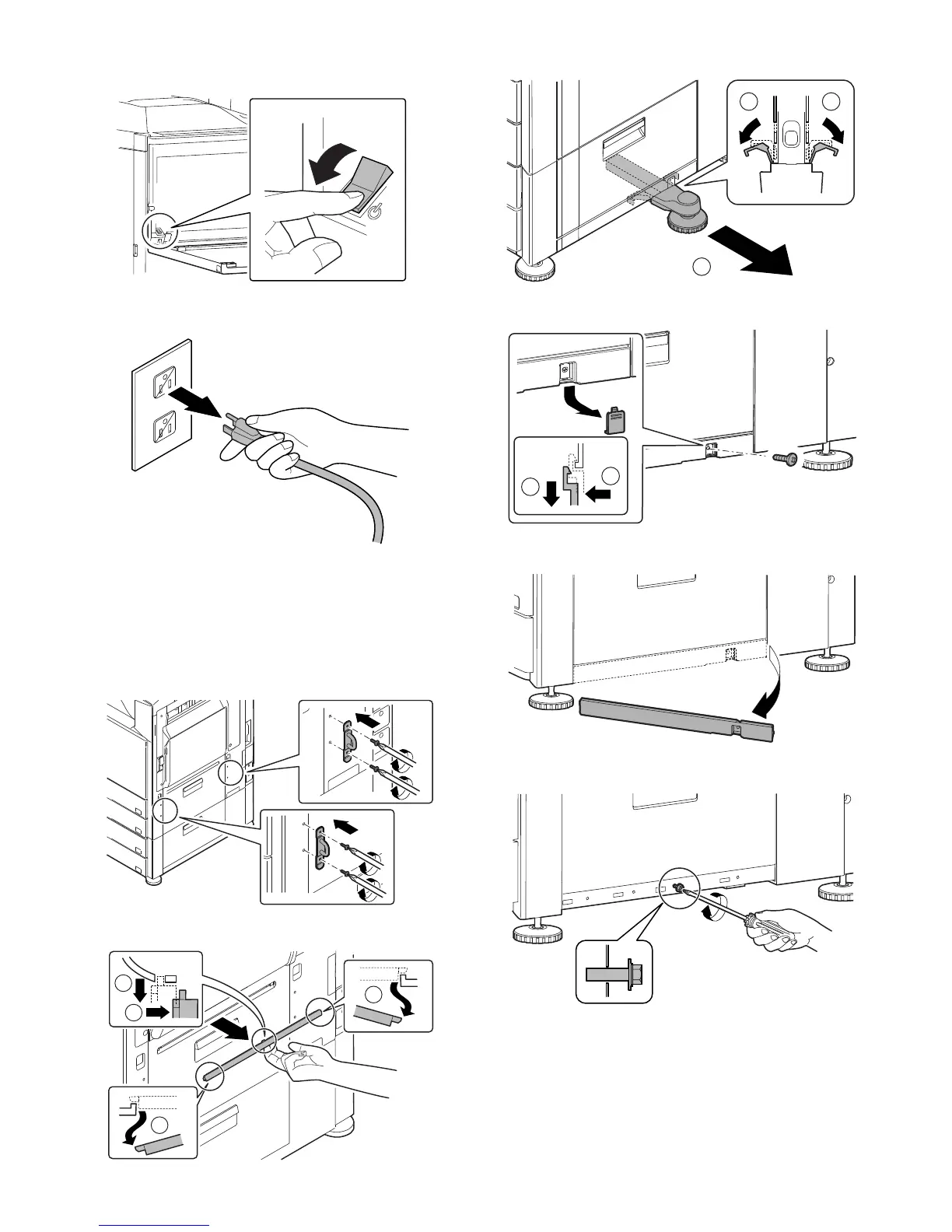

2) Open the front cabinet.
Turn OFF the power switch in the front cabinet of the main unit.
3) Disconnect the power plug of the main unit from the power out-
let.
B. Connection of the main unit and the large
capacity tray unit
1) Install the mounting plate upper (package part No. 1) to the
right side of the main unit with the fixing screw A (package part
No. 3).
* When installing, put the rubber section of the mounting plate
upper on the lower side.
2) Remove the right door cover from the machine.
3) Disengage the pawl, and remove the right adjuster.
4) Remove the screw cap, and remove the screw.
5) Remove the cover.
6) Temporarily fix the fixing screw B (package part No. 4) midway.
OFF
