MX-M503N Dehumidifying heater 27 – 5

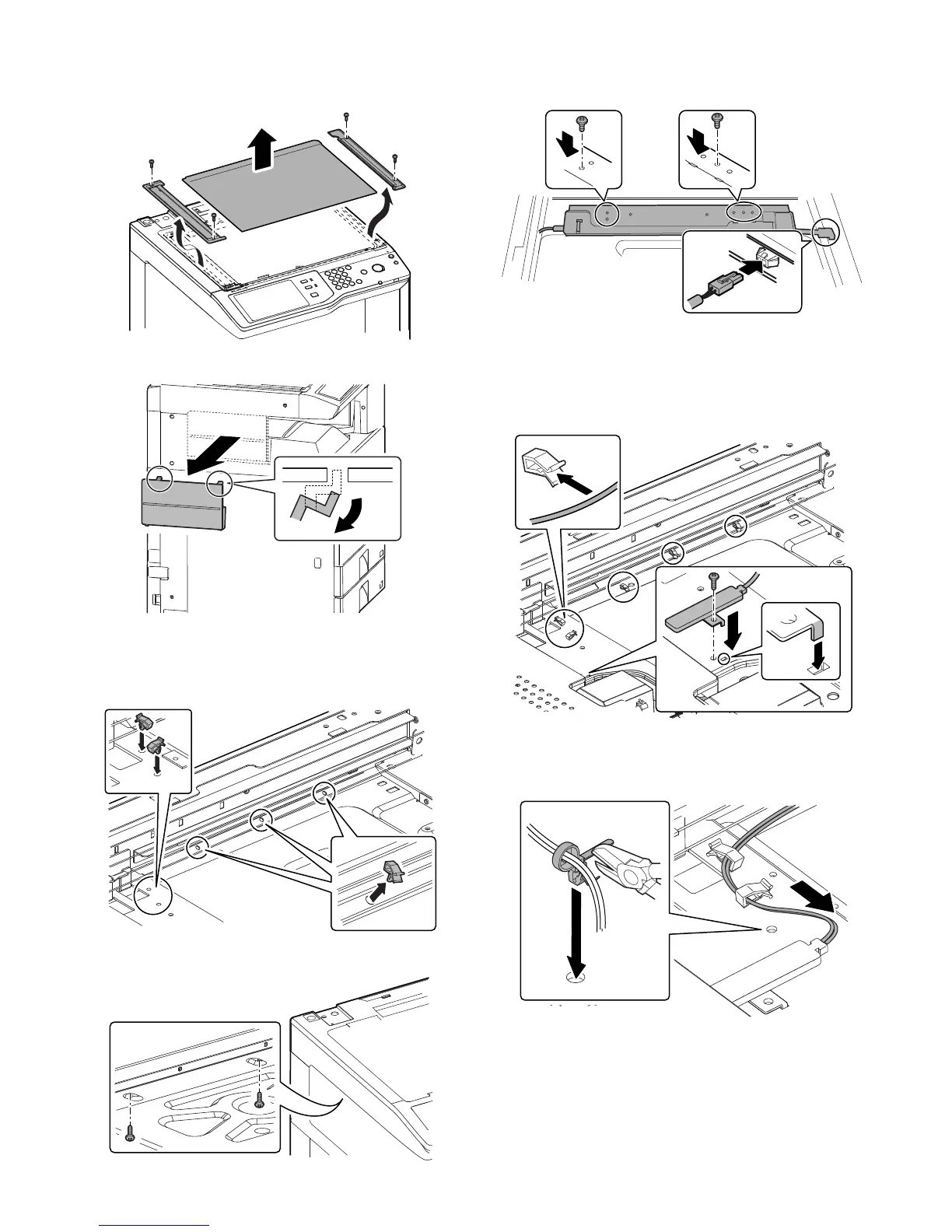

(2) Removal of the table glass, the paper exit cover
1) Remove the screw, and remove the SPF glass and the glass
holder. Remove the table glass.
2) Remove the paper exit cover.
(3) Installation of the scanner heater unit
1) Attach the clamp (package part No. 16) to the scanner frame.
NOTE: When installing, be careful to prevent damage of the wire.
2) Remove two screws from the scanner bottom.
3) Connect the harness of the scanner heater. Install the heater
fixing plate of the scanner heater unit, and secure it with the
screw (M3x4 Round-tipped) (package part No. 17).
4) Install the scanner heater and secure it with the screw (M4x6
Bind machine screw) (package part No. 18). Pass the harness
through the clamp.
NOTE: The convex part of the scanner heater must be inserted
into the hole of the scanner frame.
5) Tighten the loose scanner heater harness by pulling it in the
arrow direction and secure it with the snap band (packing part
No. 19) then cut its tip to approx. 5 mm or less.
To Next Page
