MX-M503N MX-FNX9 4 – 4

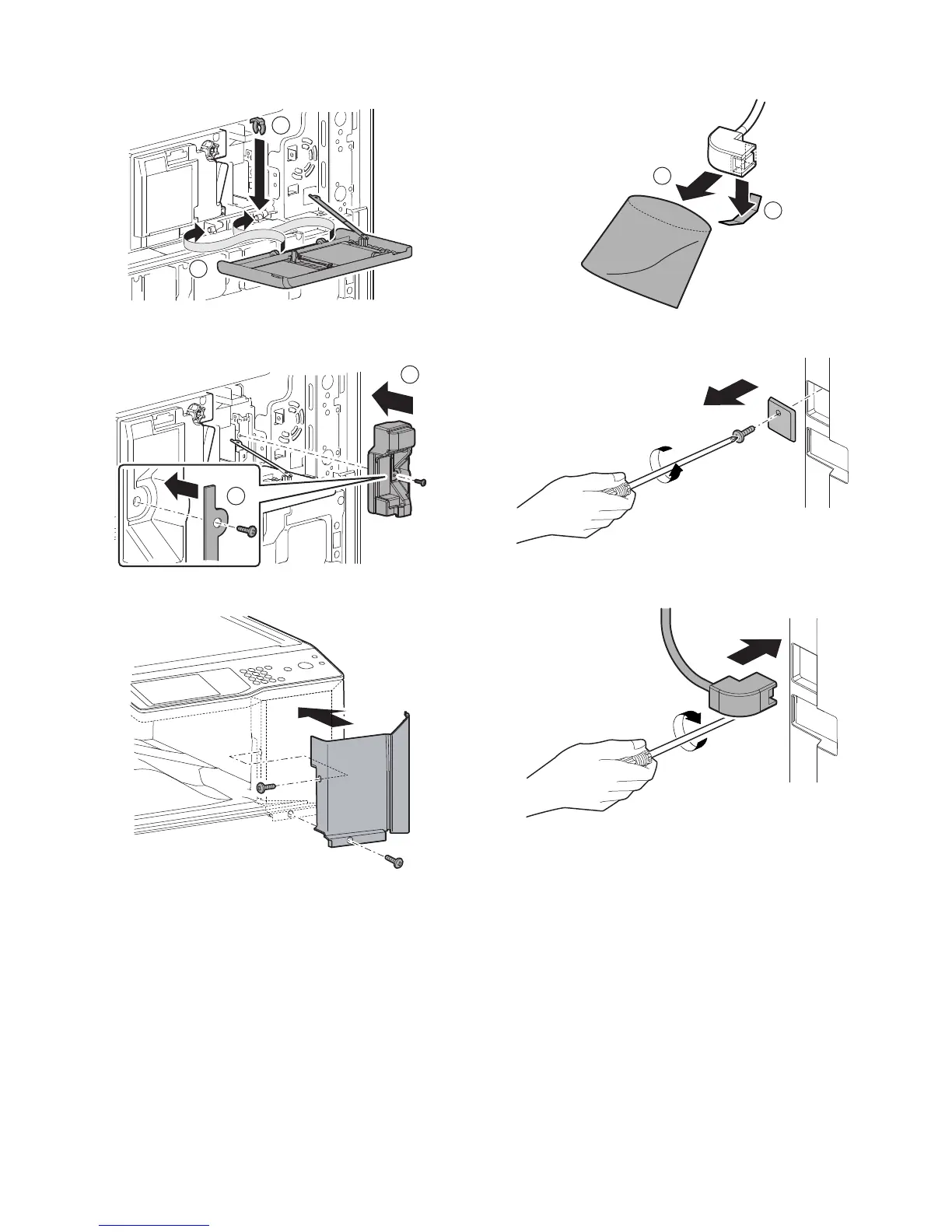

13) Install the front open/close cover (package part No. 4) to the
front rail stay rotating shaft, and fix it with the resin clip (pack-
age part No. 9).
14) Fix the punch cover (package part No. 5) together with the
band (metal fixture) with the fixing screw (package part No. 8).
15) Install the front cabinet upper with two screws.
D. Connector Installation
1) Remove the protection material and fixing tape.
2) Remove the screw, and remove the connector cover.
3) Connect the finisher connector with the main unit connector,
and tighten with a screw.
To Next Page
