MX-M503N MX-FN10 7 – 4

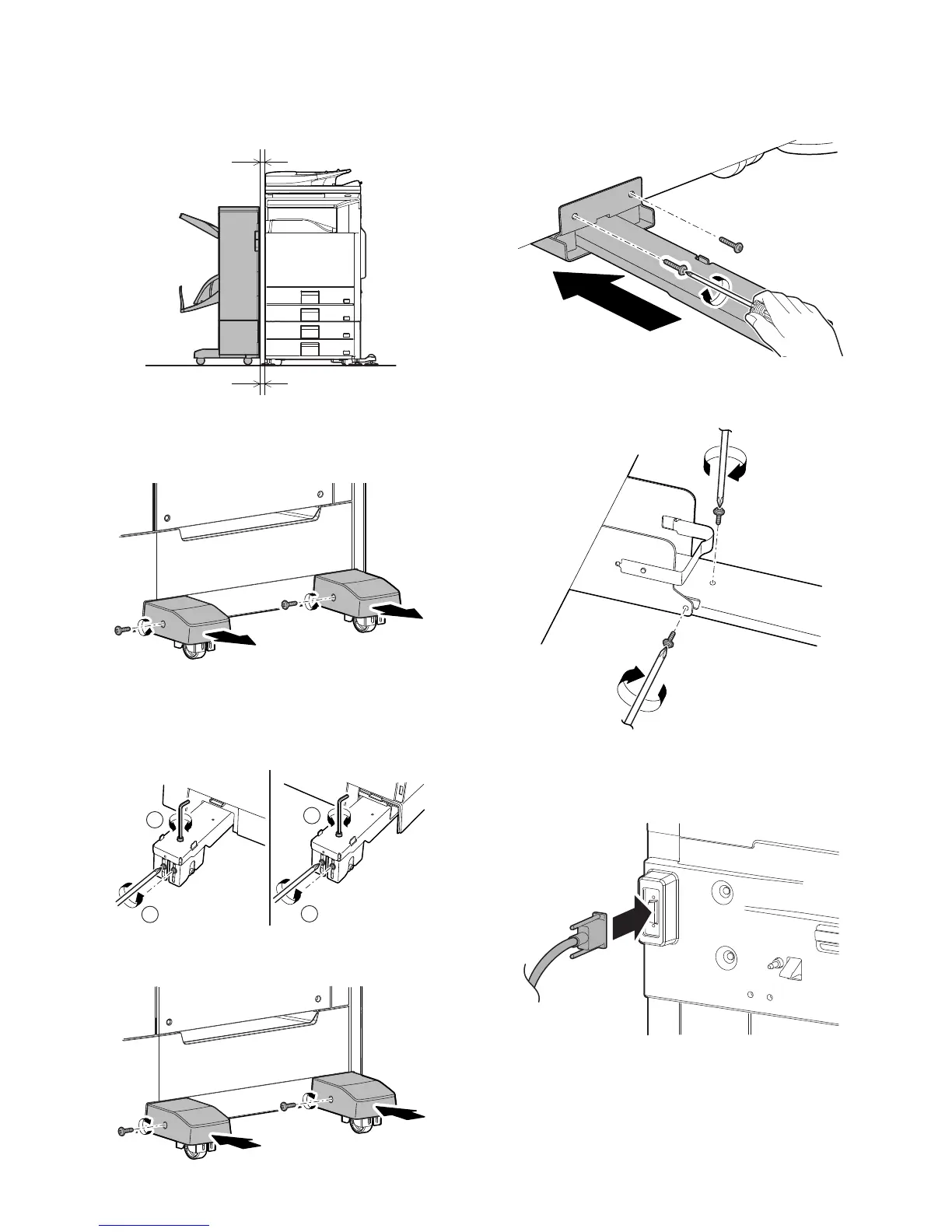

(2) When the guide pin is fit with the connection hole
in the finisher:
1) Insert the finisher into the main unit. Check to insure that the
upper and lower clearances between the main unit and the fin-
isher are even.
2) If the upper and lower clearances between the main unit and
the finisher are not even, remove the screw (one for each) of
the foot covers on the front/rear sides, and remove the foot
cover.
3) Loosen four fixing screws of the adjustment section, and turn
the height adjustment screws on the front/rear sides to adjust
so that the clearances are even.
* By making space between the main body and ground, the
adjustment screw can be turned by the finger.
4) When the clearances are even, tighten the fixing screw of the
adjustment section, and install the foot cover.
E. Connection of the main unit and saddle
finisher
1) Fix the connection plate (package part No. 2) to the paper feed
desk with fixing screws B (package part No. 7).
2) Install the rail bracket to the frame with fixing screws C (pack-
age part No. 8).
F. Connector connection
1) Connect the finisher connector with the connector of the inter-
face pass unit, and tighten the screw.
