MX-M503N MX-PNX5A/B/C/D 8 – 3

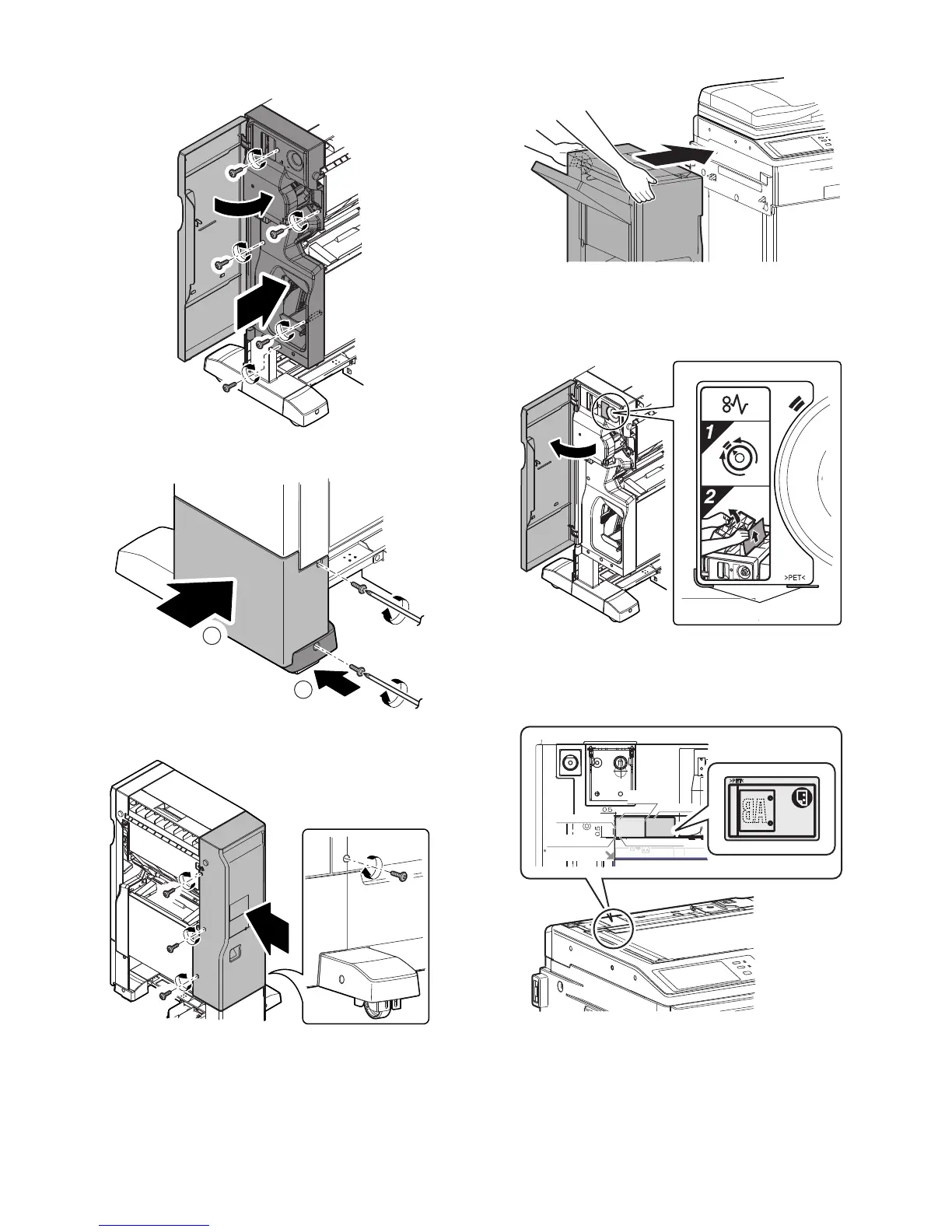

8) Fix the front inner cover with screws, and close the front
cover.
9) Fix the front lower cover with a screw.
10) Fix the rear cover with a screw.
11) Install the saddle finisher to the main unit.
C. Punch jam processing label attachment
1) Open the front cover, apply the punch jam processing label
(package part No. 3) in position as shown in the figure.
D. Punch position label attachment
1) Attach the label to the position indicated in the figure.
[For scanner]
1
2
000
-
0000
Label attachment reference
Second label
Corner R end fitting
Lose the
clearance.
First label
Label attachment
reference
Corner of the "upper
cabinet rear"
Corner R end fitting
