MX-M503N MX-PNX6A/B/C/D 10 – 4

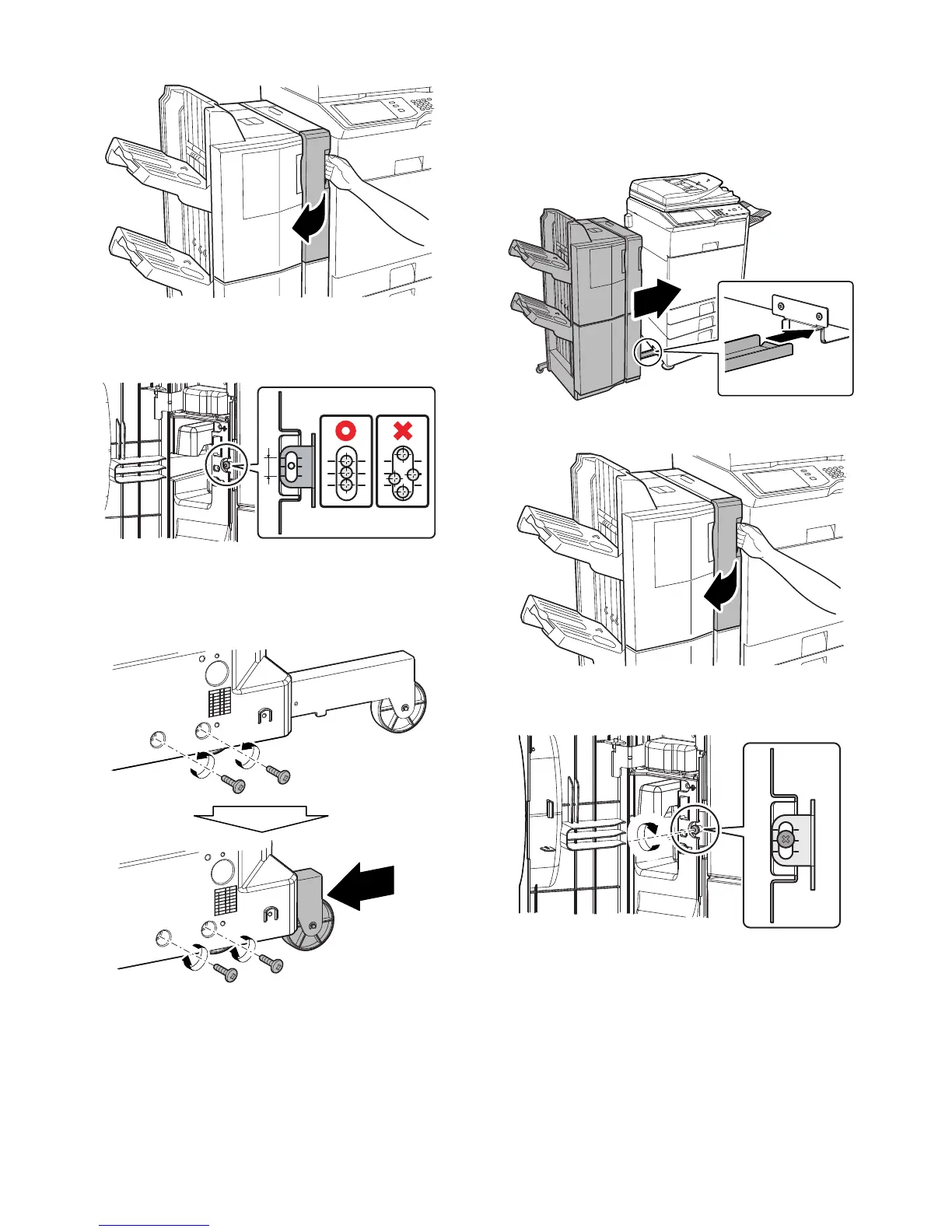

2) Open the front door of punch unit.
3) Check that the center of the screw hole of the punch unit is in
the range of specification of an oval hole of the mounting fix-
ture in front side of main unit.
* When not the range of specification, progress to the proce-
dure of "E. Adjustment".
If the adjustment is not required, remove the screw from the
screw hole directly and push the caster into it until the instal-
lation fixing.
E. Adjustment
* Refer to the adjustment procedures in the MX-FN11 Service
Manual.
F. Install to main unit
1) Engage the finisher that has installed punch unit to the main
unit.
2) Open the front door of punch unit.
3) Secure the main unit and the punch unit with the fixing screw
(Package part No. 4 of the MX-FN11).
