• MX-M282N/M362N/M452N/M502N

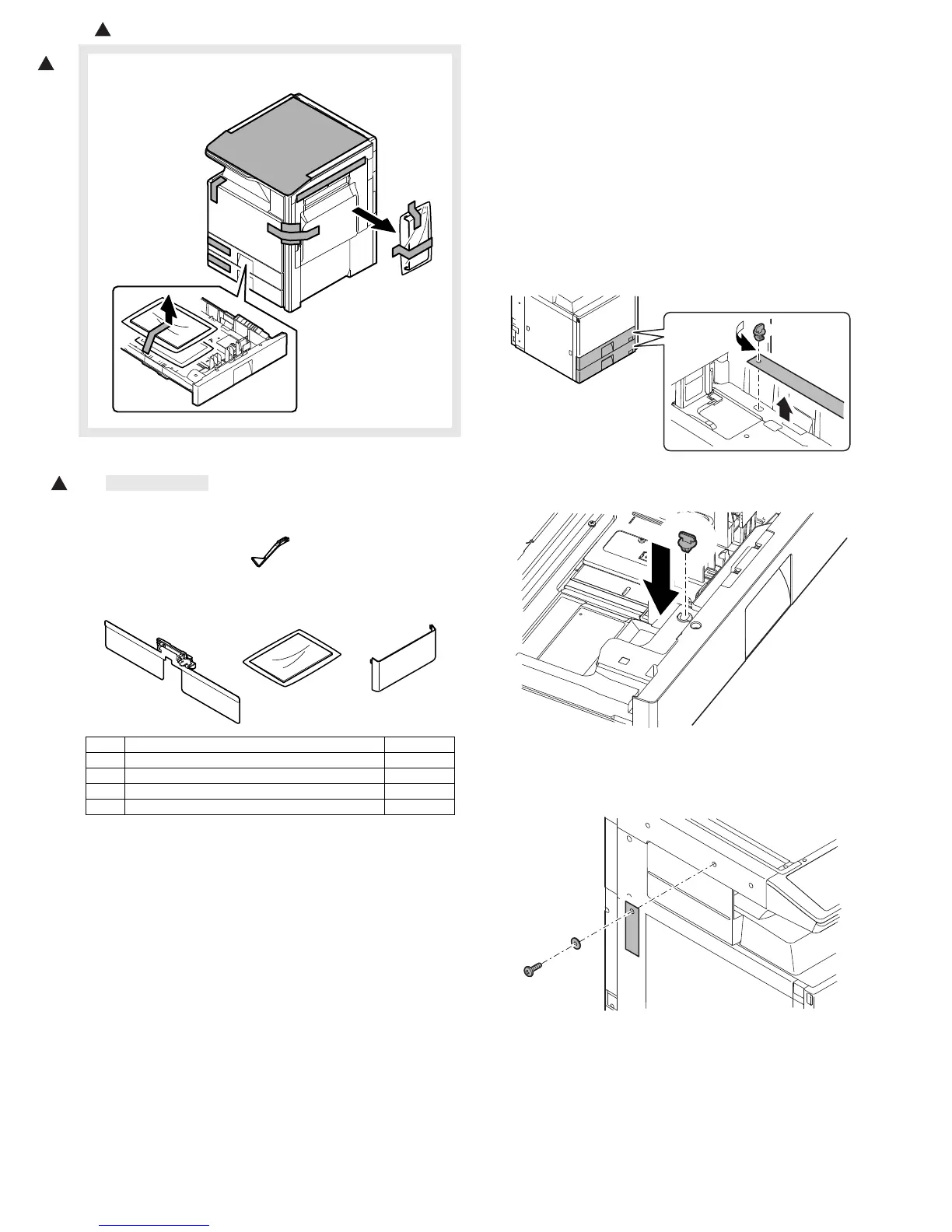

C. Check the parts packed together
1) Check that all the parts are in the package.
* Expect Europe.
4. Installation
<Note before installation>
* When connecting the main unit with the optional STAND/1 X 500
SHEET PAPER DRAWER (MX-DEX8) or STAND/2 X 500
SHEET PAPER DRAWER (MX-DEX9), first unpack and install
the MX-DEX8 or MX-DEX9; then unpack the main unit and
securely place the main unit on the MX-DEX8 or MX-DEX9
before installing the main unit.
A. Lock release
(1) Tray rotation plate lock release
1) Pull out the tray, and remove the rotation plate fixing material
and the tray note label.
2) Attach the removed fixing material to the position shown in the
figure for storage.
(2) Scanner (2/3 mirror unit) lock release
1) Remove the optical unit fixing screw, and remove the note
label.
NO. Parts name Quantity
1 Paper exit full detection actuator 1
2 Paper holding plate unit 1
3 Operation manual 1
4 Operation manual pocket 1
