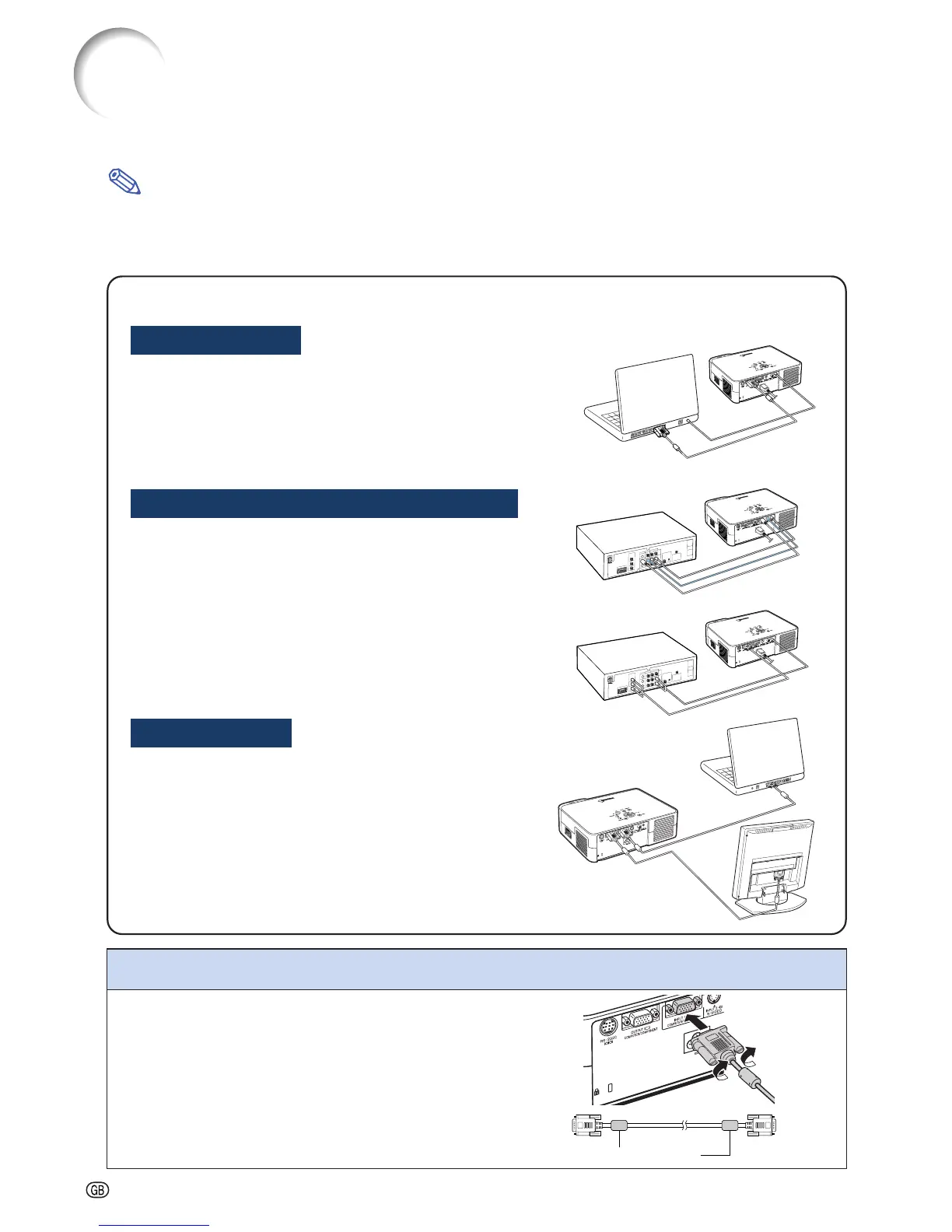

Connecting the Projector to Other Devices
Before Connecting
Note
•
Before connecting, be sure to unplug the power cord of the projector from the AC outlet and turn off the devices
to be connected. After making all connections, turn on the projector and then the other devices.
When connecting a computer, be sure that it is the last device to be turned on after all the connections are made.
• Be sure to read the operation manuals of the devices to be connected before making connections.
This projector can be connected to:
A computer using:
■
An RGB cable and a ø3.5 mm stereo or mono au-
dio cable (commercially available) (See page 51.)
■ A DIN-D-sub RS-232C adaptor (AN-A1RS) (sold
separately) and an RS-232C
serial control cable (AN-C10RS) (sold separately)
(See page 54.)
Component video or audio-visual equipment:
■ A VCR, Laser disc player or other audio-visual
equipment (See page 52.)
■ A DVD player or DTV* decoder (See page 53.)
*DTV is the umbrella term used to describe the new
digital television system in the United States.
A monitor using :
■ Two RGB cables (One is supplied, the other is
sold separately) (See page 55.)
Connecting the thumbscrew cables
■ Connect the thumbscrew cable making sure that
it fits correctly into the terminal. Then, firmly se-
cure the connectors by tightening the screws on
both sides of the plug.
■ Do not remove ferrite cores attached to the RGB
cable.
Ferrite core
To Next Page
