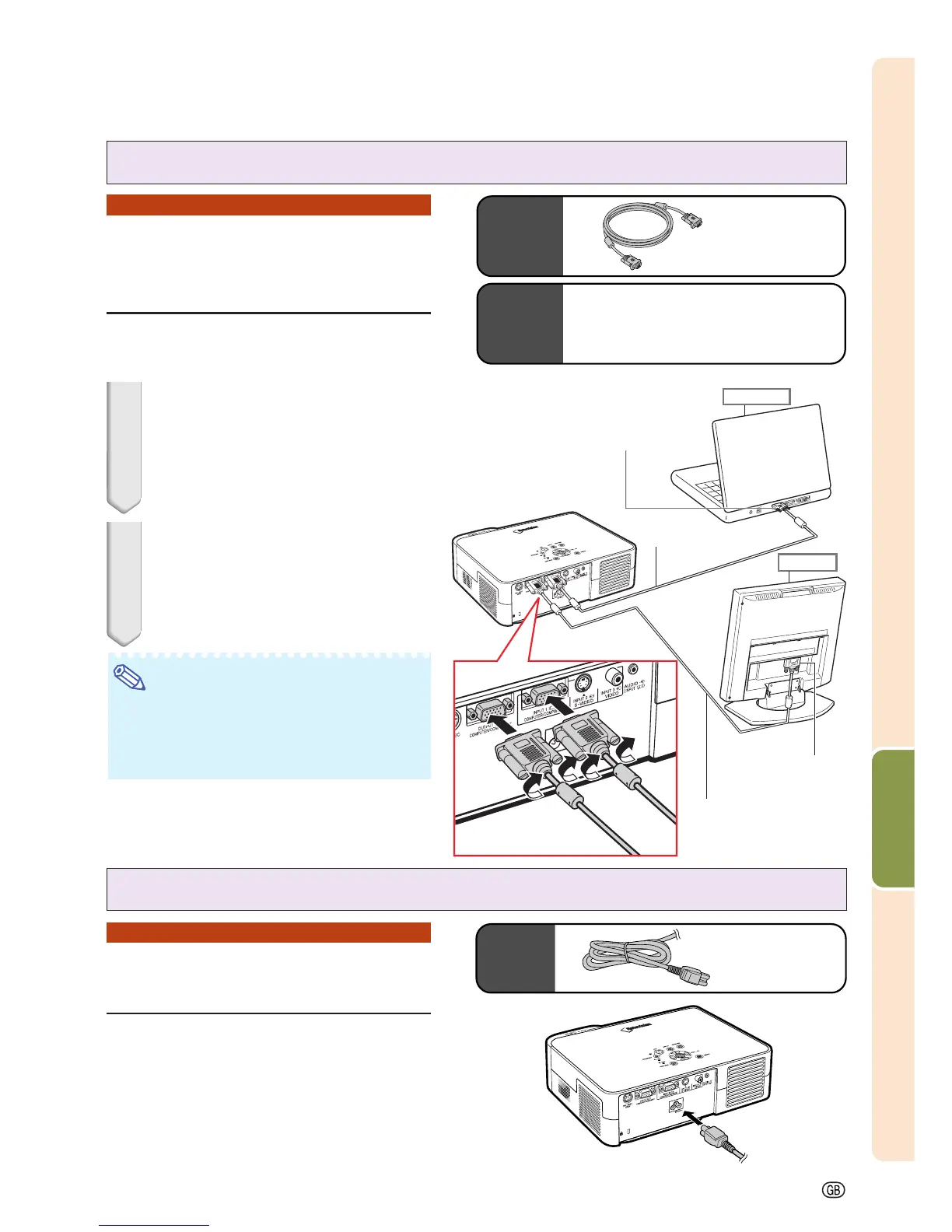

Connections
Connecting to a Monitor
Watching Images on
Both the Projector and a
Monitor
You can display computer images on both the
projector and a separate monitor using RGB
cables.
1 Connect the projector to the
computer using the supplied
RGB cable.
• Secure the connectors by tightening the
thumbscrews.
2 Connect the projector to the
monitor using the computer
RGB cable (sold separately).
• Secure the connectors by tightening the
thumbscrews.
Note
• Analog RGB signals as well as Component
signals can be output to the monitor.
• For this connection, computer RGB cable
(sold separately) is required.
To RGB input port
Computer
Monitor
To RGB
input port
RGB cable
Computer RGB cable
(sold separately)
To the monitor
To the computer
Power cord
Supplied
accessory
RGB cable
Supplied
accessory
Optional
cable
Computer RGB cable
AN-C10BM
(32'10" (10.0 m))
Connecting the Power
Cord
Plug the supplied power cord into the
AC socket on the rear of the projector.
Connecting the Power Cord to the Projector
