PG-C30XU

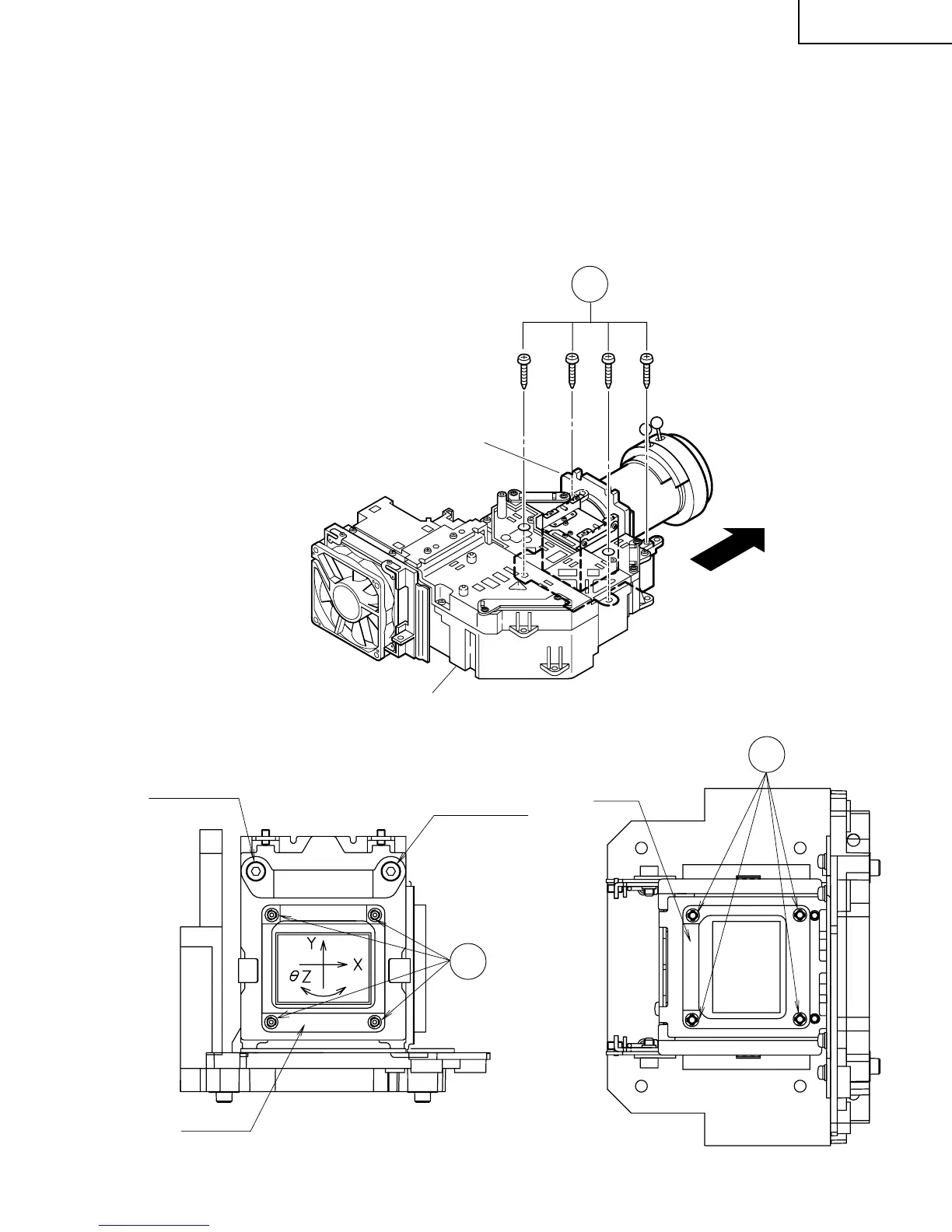

Replacing the LCD panels
Detach the top panel and the optical mechanism unit in advance.
(1) Remove the four prism holder lock screws. Detach the prism holder from the optical mechanism unit.
(2) Remove the LCD panel lock screws (four each for the R-, G- and B-LCD panels). Detach the LCD panels from the
prism holder.
(3) Mount a new LCD panel in the reverse order of the above steps (1) and (2).
~ Readjust the convergence and focus. Note that the G-LCD panel needs no convergence adjustment and has
a small adjustment range in the Z direction.
G-LCD
SIDE VIEW
G-LCD panel
mounting screws
Lock screw "d"
Lock screw "d"
R.B-LCD panel
mounting screws
R.B-LCD
SIDE VIEW (from inside)
2
2
1
Prism holder
Optical Mechanism Unit
