Sharp PN-K321 Service Manual

PN-K321/K322B OUTLINE OF THE PRODUCT 1 - 8

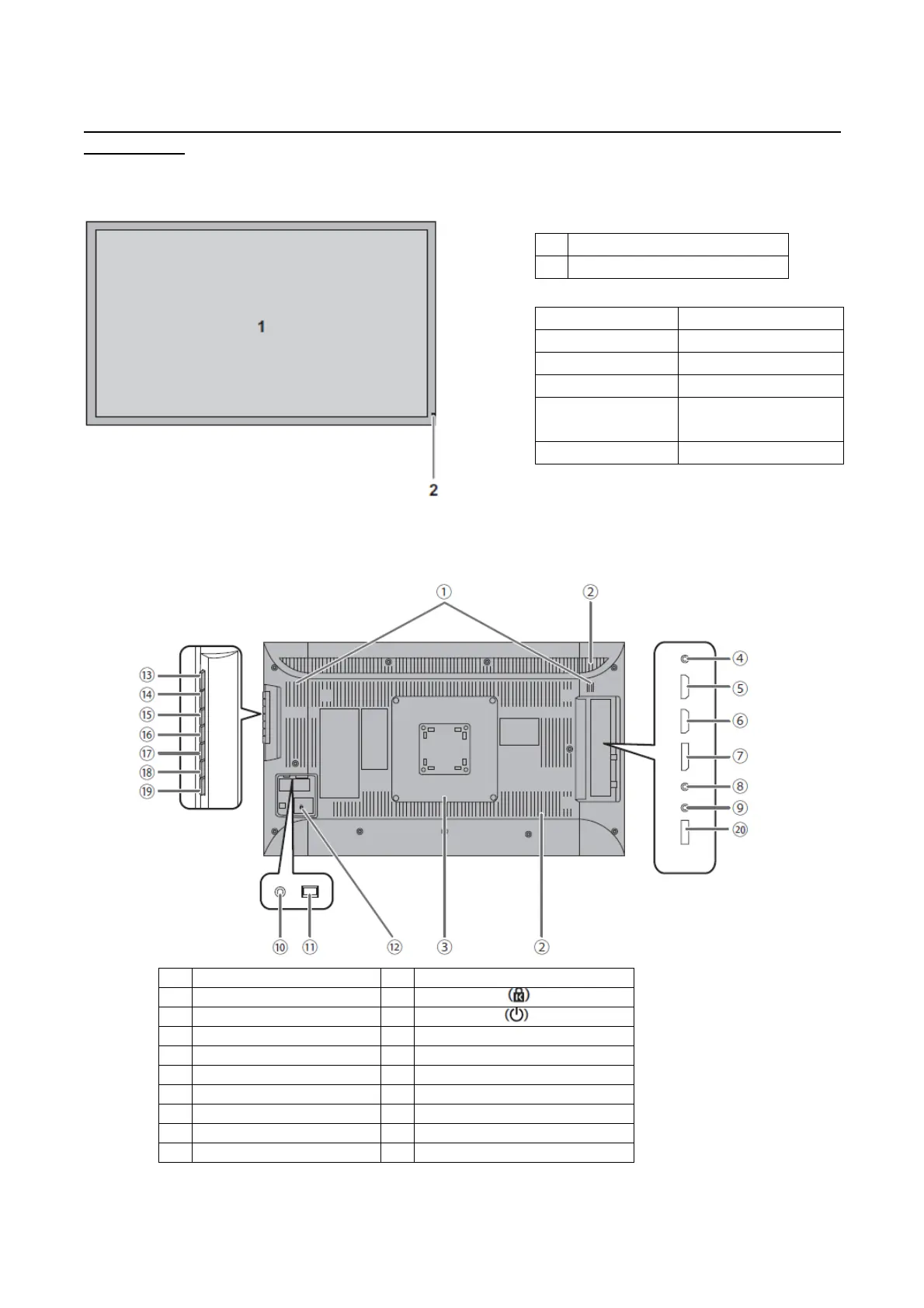

2. PART NAMES AND FUNCTION
2 - 1.DISPLAY
PN-K321/K321H
■FRONT VIEW
1 LCD panel
2 Power LED
(State the power light is lit)
Lighting Status Status Description
Green lit. Power on
Off lit. Power off (Standby mode)
Greenflashing. Input signal waiting mode
Flash alternately red
and green
Temperature trouble
Flash red Hard trouble
When switching the main power switch or the POWER
button off and back on, always wait for at least 5
seconds. A short interval may result in a malfunction.
■Rear view
1 Speakers 11 Main power switch
2 Vents 12 Antitheft hole
3 Attachment plate 13 Power button
4 RS-232C input terminal 14 Brightness adjustment button ()
5 PC/AV HDMI 1 input terminal 15 Brightness adjustment button ()
6 PC/AV HDMI 2 input terminal 16 [VOL+/] button
7 DisplayPort input terminal 17 [VOL-/] button
8 Audio input terminal 18 [MENU/ENTER] button
9 Headphone terminal 19 [INPUT/RETURN] button
10 AC input terminal 20 USB input terminal(for service)
