PN-K321/K322B OUTLINE OF THE PRODUCT 1 - 9
PN-K322B

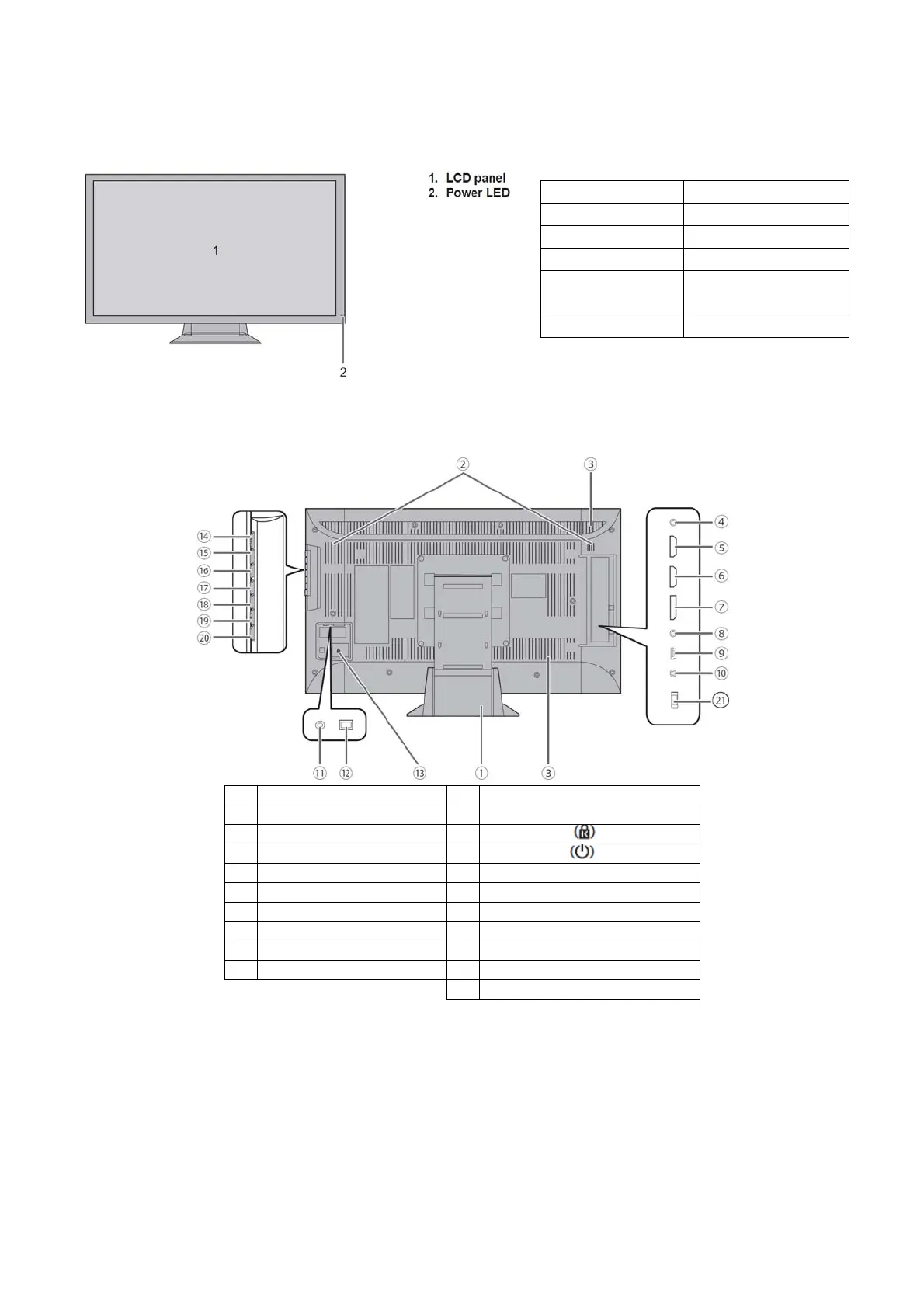

■FRONT VIEW
When switching the main power switch or the POWER
button off and back on, always wait for at least 5 seconds.
A short interval may result in a malfunction.
■Rear view
1 Stand 11 AC input terminal
2 Speakers 12 Main power switch
3 Vents 13 Antitheft hole
4 RS-232C input terminal 14 Power button
5 PC/AV HDMI 1 input terminal 15 Brightness adjustment button ()
6 PC/AV HDMI 2 input terminal 16 Brightness adjustment button ()
7 DisplayPort input terminal 17 [VOL+/] button
8 Audio input terminal 18 [VOL-/] button
9 USB (mini-B) port 19 [MENU/ENTER] button
10 Headphone terminal 20 [INPUT/RETURN] button
21 USB terminal (for service)
Lighting Status Status Description
Green lit. Power on
Off lit. Power off (Standby mode)
Greenflashing. Input signal waiting mode
Flash alternately red
and green
Temperature trouble
Flash red Hard trouble
