PN-K321/K322B INSTALLATION, ADJUSTMENT, SETTING 2 - 6
1 – 6.INSTALLING THE STAND (SUPPLIDED)
(Caution)
• Disconnect all cables from the monitor.
• Firmly tighten the installation screws (supplied) with the hex
wrench (supplied).
• Ensure that you have sufficient space to work.
■ Attaching the stand
Remove all packaging materials before starting work.
To prevent the table (etc.) from being damaged by the stand
pedestal, spread a thick, soft cloth (blanket, etc.) and work on
the cloth.

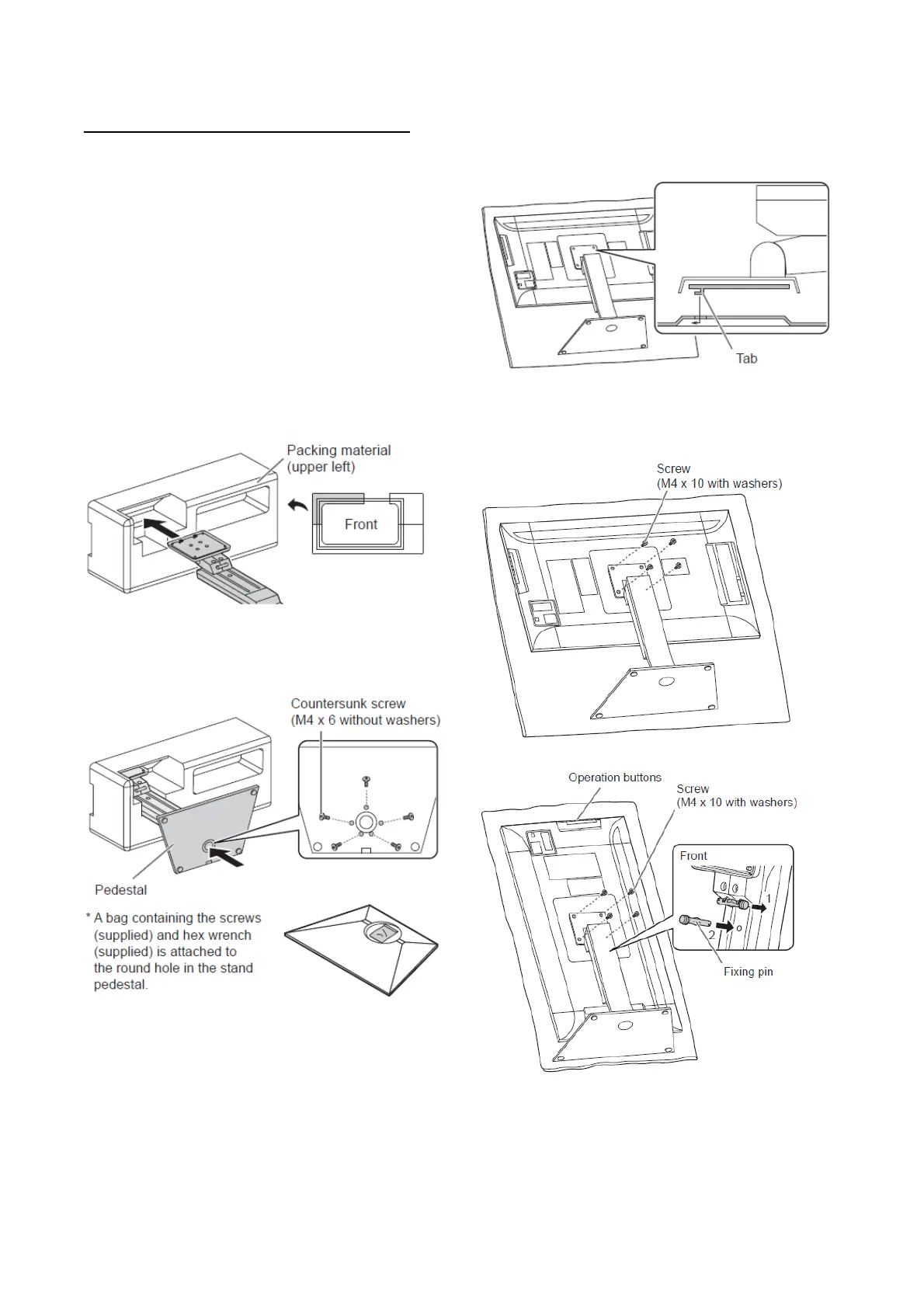

1. Insert the stand strut into the packaging material (upper left) as
shown.
2. While supporting the stand pedestal with your hand, fasten to
the stand strut with the supplied countersunk screws (M4 x 6
without washers) (x5).
Use the supplied hex wrench.
3. Spread a thick, soft cloth (blanket, etc.) that will prevent
damage to the LCD panel on a stable flat surface where the
entire monitor can be placed, and place the monitor with the
LCD panel face down on the cloth.
4. Place the stand on the monitor.
Hook the tab on the stand under the mounting plate
(preinstalled on monitor).
5. Fasten the stand to the monitor with the supplied
screws (M4 x 10 with washers) (x4).
Use the supplied hex wrench.
（Landscape）
（Portrait）
* If the monitor will be used in the portrait orientation, pull out the
fixing pin (1), and insert it into the hole (2) as shown above.
* To remove the stand, place the monitor and stand as shown
above and remove the screws.
