PN-K321/K322B SERVICE MENU/VARIOUS SETTING TOOL OPERATING PROCEDURES 4 - 7
5. OTHER FUNCTION
In this machine, the following functions can be set with OSD
5-1. MODEL NAME SETTING FUNCTION
5-2. SERIAL NUMBER SETTING FUNCTION
5-3. USAGE TIME SETTING FUNCTION
5-4. SYSTEM LOG AND TEMPERATURE LOG INITIALIZATION
5-5. SYSTEM LOG AND TEMPERATURE LOG PRESERVATION TO USB MEMORY
5-6. USER SETTING VALUE PRESERVATION TO USB MEMORY

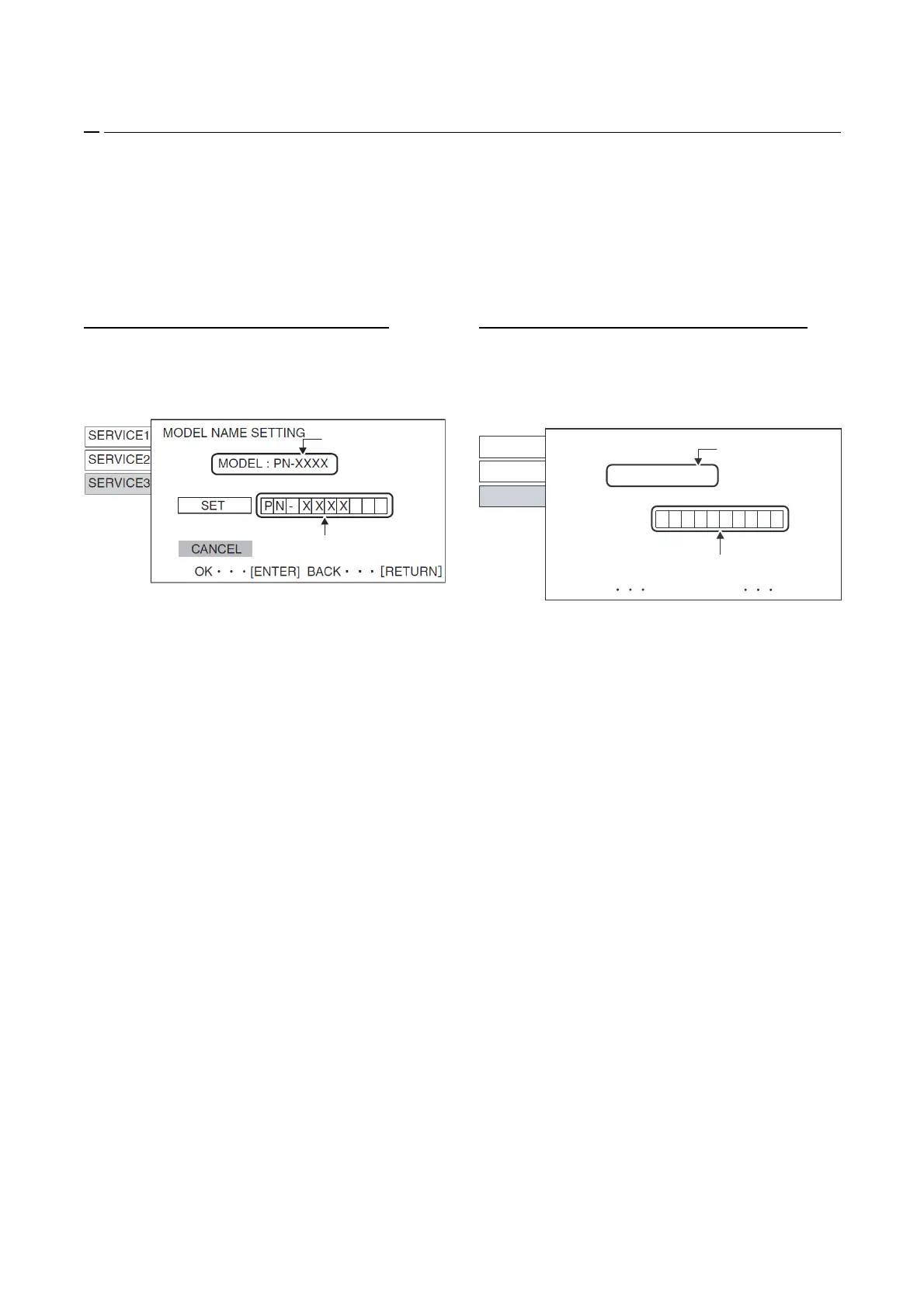

5 – 1. MODEL NAME SETTING FUNCTION
1) Display SERVICE MENU 3.
2) Select "MODEL NAME SETTING" by using [VOL+ ()], [VOL-
()] buttons, and press [ENTER] button.
The screen of MODEL NAME SETTING is displayed.
3) Move the cursor to [SET] by using [VOL+ ()], [VOL- ()]
buttons, and then move the cursor to the edit line by using
[BRIGHT- ()], [BRIGHT+ ()] buttons.
<CAUTION>
*During the change procedure, do not close the window by
pressing [INPUT/RETURN] button. If the window is forcefully
closed halfway through the procedure due to power shut-off or
signal change etc., the figures being changed won't be written.
4) When the change has been completed, put the cursor on "Edit
line" and press [ENTER] button. The changed figures are
written, and then the screen returns to SERVICE MENU 3.
If "RETURN" is pushed, the changed figures won't be written.
<MEMO>
*The tailing blank columns are trimmed when the figures are
written.
Meanwhile, the blank columns among the figures are written as
spaces.
5 – 2. SERIAL NUMBER SETTING FUNCTION
1) Display SERVICE MENU 3.
2) Select "S/N SETTING" by using [VOL+ ()], [VOL- ()]
buttons, and press [ENTER] button.
The screen of S/N SETTING is displayed.
S/N SETTING
BACK [RETURN]
SERVICE1
SERVICE2
SERVICE3
S/N : 8A012345K
8A K012345
Current S/N
Edit line
OK [MENU]
3) By using [BRIGHT- ()], [BRIGHT+ ()] buttons, move the
cursor to the column which you want to change, and then
change the figure by [VOL+ ()], [VOL- ()] buttons.
<MEMO>
*The usable characters are 0 to 9, A to Z (capital letters only),
space, - (hyphen), _(underbar) and .(comma).
<CAUTION>
*During the change procedure, do not close the window by
pressing [INPUT/RETURN] button.
If the window is forcefully closed halfway through the procedure
due to power shut-off or signal change etc., the figures being
changed won't be written.
4) When the change has been completed, press [ENTER] button.
The changed figures are written, and then the screen returns to
SERVICE MENU 3.
If "RETURN" is pushed, the changed figures won't be written.
<MEMO>
The tailing blank columns are trimmed when the figures are
written. Meanwhile, the blank columns among the figures are
written as spaces.
Model name
String you want to edit
To Next Page
