PN-K321/K322B SERVICE MENU/VARIOUS SETTING TOOL OPERATING PROCEDURES 4 - 9
5 – 4. SYSTEM LOG AND TEMPERATURE LOG
TO USB FLASHDRIVE
■USB FLASH DRIVE
Use the USB Flash Drive corresponding to the following standard.
- Format : FAT32/FAT16
- USB : 2.0/1.1
(CAUTION)
・It does not correspond to SD card reader.
・It does not correspond to USB HUB
・ Don’t use the USB Flash Drive enciphered
■SAVE LOG

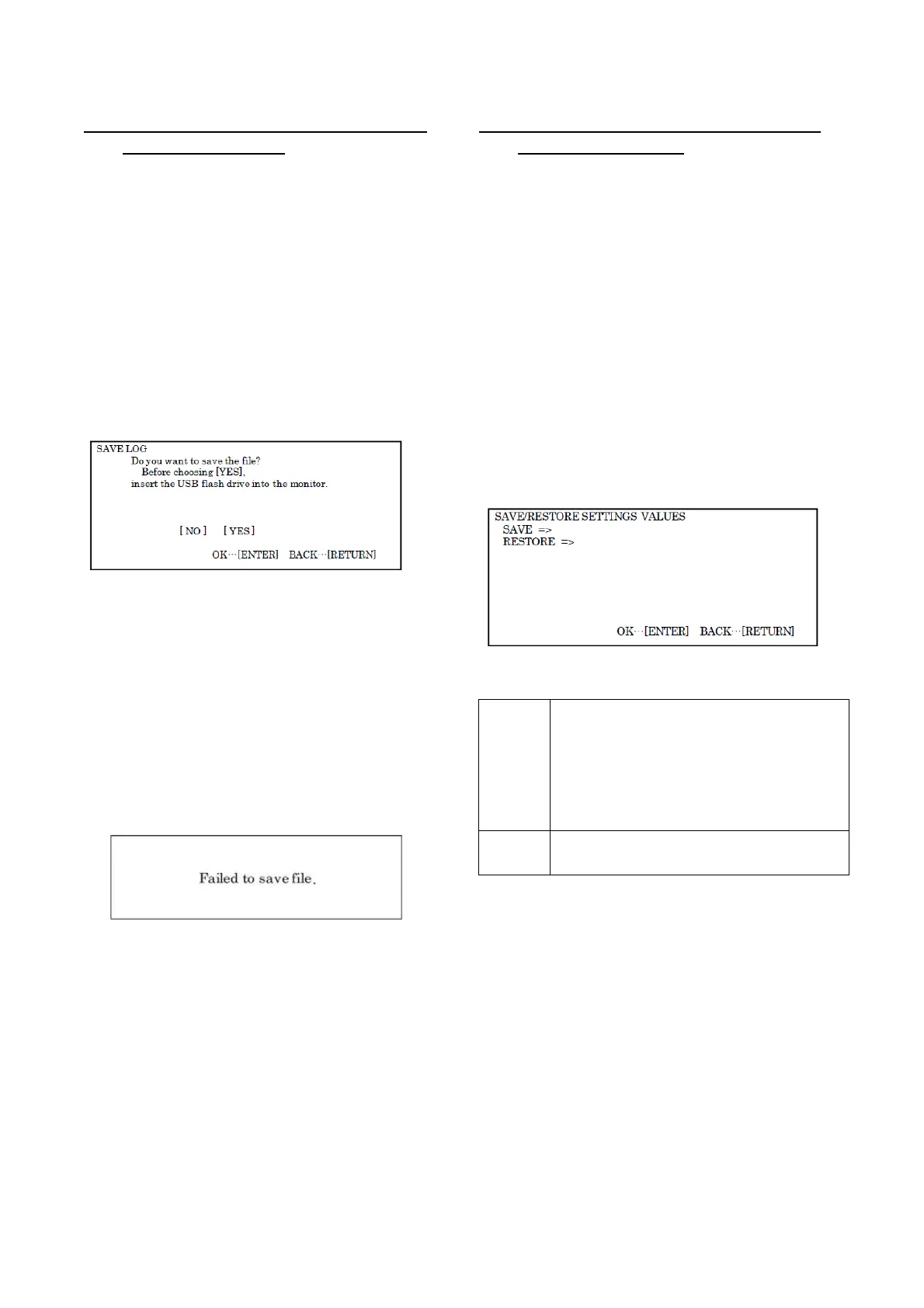

1 ) Press [ENTER] button in "Save Log" of SERVICE MENU3.
The following screen is displayed
2 ) Connect USB Flash Drive to the monitor
(As for USB, the screw stop of the lid is carried out)
3) If a cursor is united with [Yes] and press [ENTER] button,
Preservation will begin.
4 ) If preservation is successful, it will return to SERVICE MENU.
The file of [XXlog_(model name)_(serial number)_(time).dat] is
created by the root directory of a USB Flash Drive.
Display the saved file with an InfoDisp Report tool.
5 ) The following OSD is displayed when writing goes wrong.
Reput USB Flash Drive, or there is OFF-ON of power supply,
and carry out again.
6 )Even if it carries out repetition implementation, when you fail,
exchange USB Flash Drive
5 – 5. USER SETTING VALUE PRESERVATION
TO USB FLASH DRIVE
■USB FLASH DRIVE
Use the USB Flash Drive corresponding to the following
standard.
- Format : FAT32/FAT16
- USB : 2.0/1.1
(CAUTION)
・It does not correspond to SD card reader.
・It does not correspond to USB HUB
・Don’t use the USB Flash Drive enciphered
■USER SETTING VALUE BACKUP
1) Press [ENTER] button in "SAVE/RESTORE SETTINGS
VALUE" of SERVICE MENU3. The following screen is
displayed
2 ) If a cursor is united with [SAVE] and press [ENTER] button,
Select the item to save and press [ENTER] button.
ALL Almost all preset values are saved except a setup
changed by the state of a main part.
Information which is not saved
- IP address of LAN
- The preset value etc. which change with input
signals, such as a clock and a phase
ONLY
Only setup of image adjustment is saved.
3 ) Connect USB Flash Drive to the monitor
4) If a cursor is united with [Yes] and press [ENTER] button,
preservation will begin.
5 ) If preservation is successful, it will return to SERVICE MENU.
The file of [XXprop_(model name)_(serial number)_(time).bak]
is created by the root directory of a USB Flash Drive.
6 ) The following OSD is displayed when writing goes wrong.
To Next Page
