PN-K321/K322B SERVICE MENU/VARIOUS SETTING TOOL OPERATING PROCEDURES 4 - 23

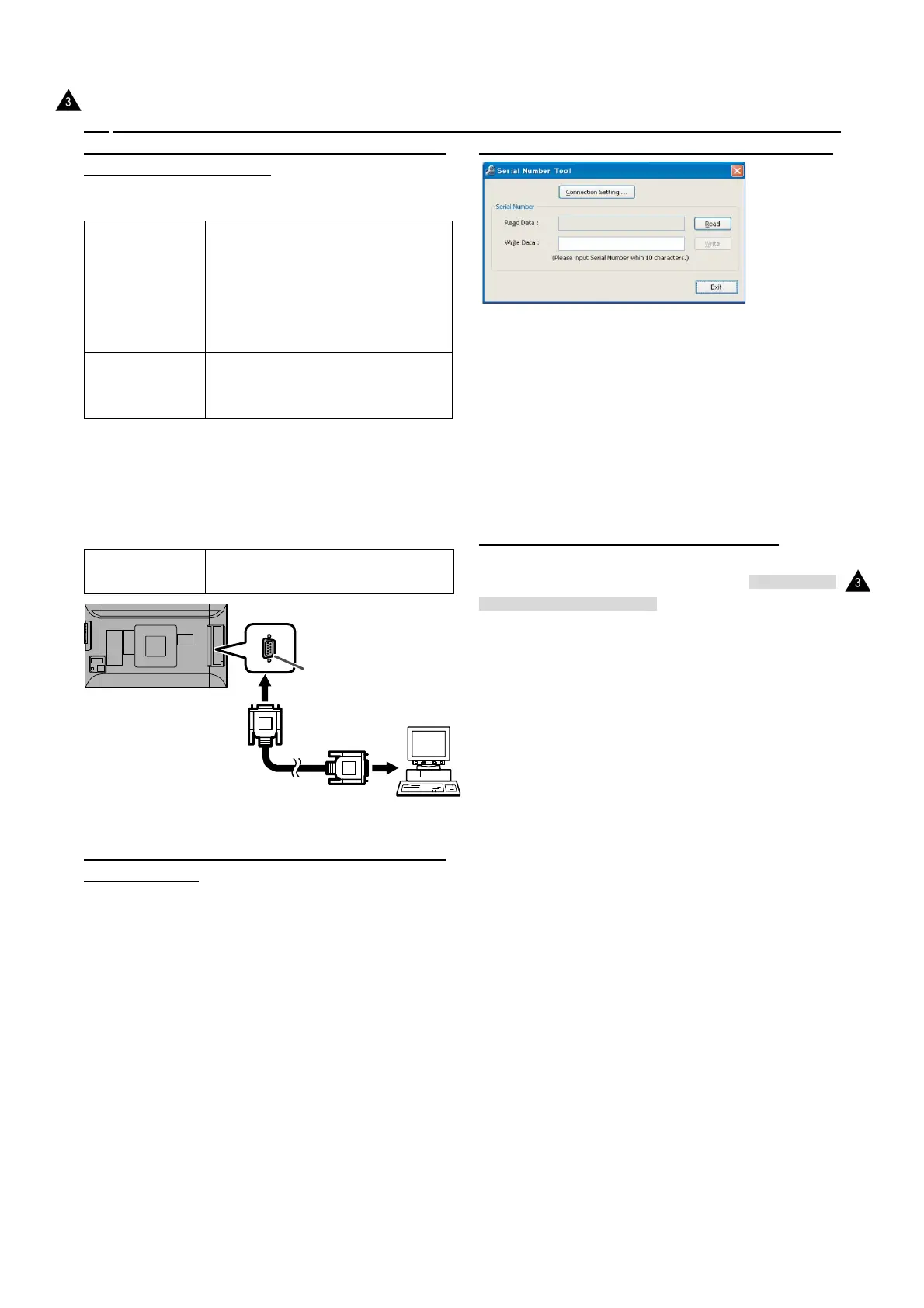

11. SERIAL NUMBER WRITING PROCEDURES
11-1. OPERATING CONDITIONS OF THE SERIAL
NUMBER SETTING TOOL
The operating conditions of the Gamma setting read tool of the
information display are as follows.
OS
(32bit Only)
・Windows XP
・Windows Vista
・Windows 7
An authorized copying and distribution
package of Microsoft Visual C++ 2005 or
later is required to be installed.
Communication
port
・
RS-232C port recognized as a COM port
(Which allows communication in 9600/
19200/ 38400bps.)
■When connected to the information display with an RS-232C
cable
The required RS-232C cable is as shown below. Connect the
PC’s COM port and the RS-232C input terminal of the display with
the cable.
* The conversion cable for RS-232C connection is necessary.
RS-232C cable
Straight cable (D-SUB 9 pin female -
female)
RS-232 straight cable
(commercially available)
To COM port
PC
RS-232C input
terminal
11-2. START-UP OF THE SERIAL NUMBER
SETTING TOOL
Press [Serial Number] button of the Service Tool Launcher.
11-3. SERIAL NUMBER SETTING PROCEDURES
The procedures of setting serial numbers with use of the Serial
Number Setting Tool are as follows.
1 ) Press [Connection Setting...] button to configure the
communication settings.
2 ) Input the serial number you need to set in the field of Write
Data.
3 ) Press [Write] button.
4 ) Press [Read] button, and confirm that the set serial number is
displayed in the Read Data field.
11-4. SERIAL NUMBER CHECK METHOD
Display [INFORMATION] > [OTHERS] menu to indicate the
display information, and check the serial number by pressing the
button on the side of the monitor .
: ’13/Dec
