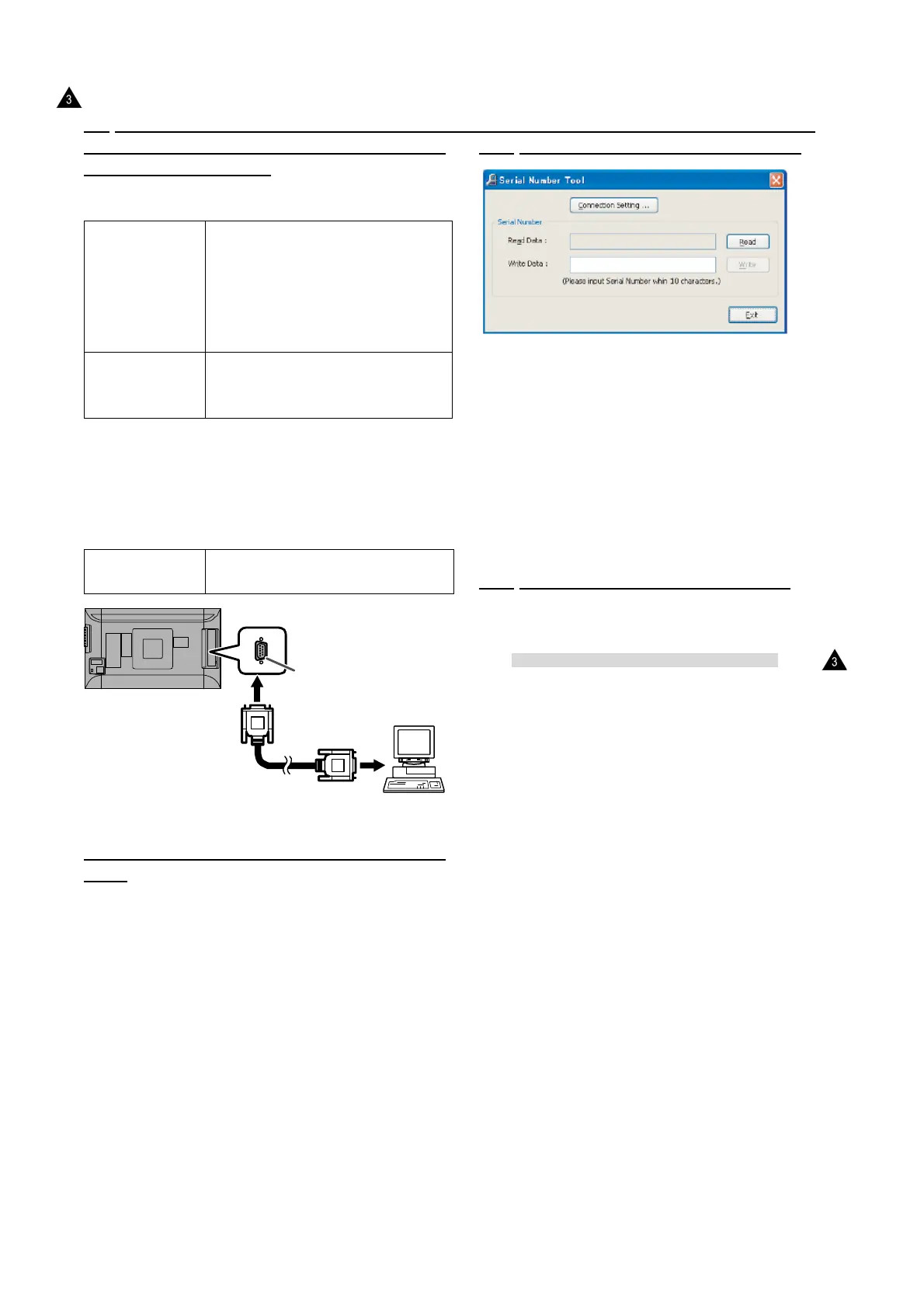

PN-K321/K322B SERVICE MENU/VARIOUS SETTING TOOL OPERATING PROCEDURES 4 - 24
12. USAGE TIME SETTING PROCEDURE
12-1. OPERATING CONDITIONS OF THE SERIAL
NUMBER SETTING TOOL
The operating conditions of the Gamma setting read tool of the
information display are as follows.
OS
(32bit Only)
・Windows XP
・Windows Vista
・Windows 7
An authorized copying and distribution
package of Microsoft Visual C++ 2005 or
later is required to be installed.
Communication
port
・
RS-232C port recognized as a COM port
(Which allows communication in 9600/
19200/ 38400bps.)
■When connected to the information display with an RS-232C
cable
The required RS-232C cable is as shown below. Connect the
PC’s COM port and the RS-232C input terminal of the display with
the cable.
* The conversion cable for RS-232C connection is necessary.
RS-232C cable
Straight cable (D-SUB 9 pin female -
female)
RS-232 straight cable
(commercially available)
To COM port
PC
RS-232C input
terminal
12-2. START-UP OF THE USAGE TIME SETTING
TOOL
Press [Usage Time] button of the Service Tool Launcher.
12-3. USAGE TIME SETTING PROCEDURES
The procedures of setting usage time with use of the Usage Time
Setting Tool are as follows.
1 ) Press [Connection Setting...] button to configure the
communication settings.
2 ) Input the usage time you need to set in the field of Write Data.
It should be from “000000” to “200000.” Make sure to input a
6-digit number.
3 ) Press [Write] button.
4 ) Press [Read] button, and confirm that the set usage time is
displayed in the Read Data field.
12-4. USAGE TIME SETTING PROCEDURE
With an image displayed on the display, enter the SERVICE
MENU 1, and check the USAGE TIME on the column of USAGE
TIME by pressing the button on the side of the monitor
Press the [MENU/ENTER] and the [INPUT/RETURN] button for
about 5 seconds (the LED blinks, or the "F" mark is displayed in
the upper left corner of screen.), or, press the [BRIGHT- ()],
[BRIGHT+ ()], [BRIGHT- ()] and [BRIGHT+ ()] buttons in
sequence with pointing the cursor to the [Other] menu.
: ’13/Dec
