PN-K321/K322B SERVICE MENU/VARIOUS SETTING TOOL OPERATING PROCEDURES 4 - 32
16. USER SETTING DATA TOOL OPERATING PROCEDURES
■Overview
In this Model, the position gap correction value between LCD panel and touch panel is registered into touch panel control board. So, when
a touch panel is replaced by new one, it is necessary to check the position gap between LCD panel and touch panel. And if the gap is over
the acceptable value, adjustment work is needed.
And drawing check is also required in order to confirm whether the new panel operates correctly.

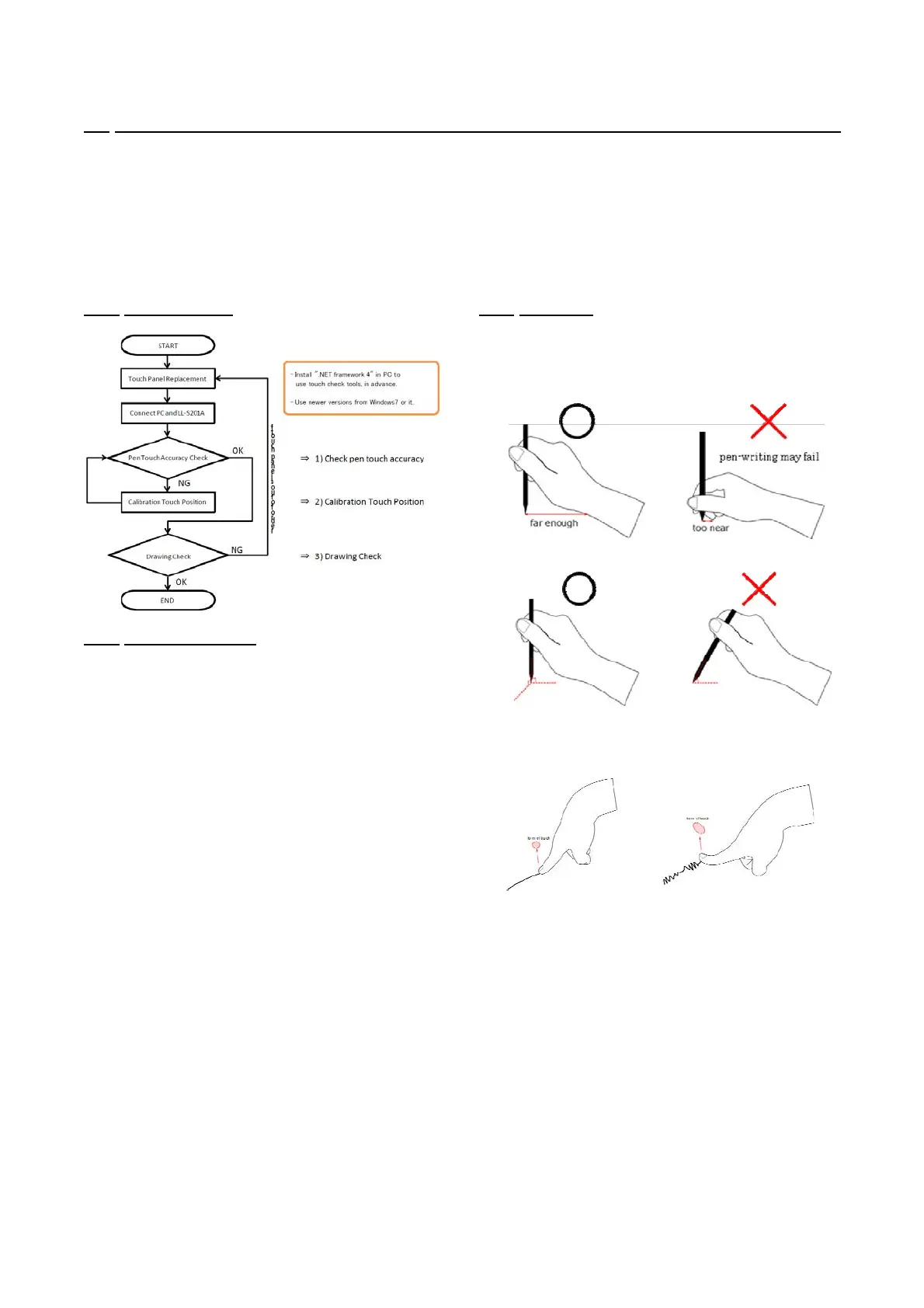

16-1. Operation flow
16-2. Setting-Limitation
Setting:
Before starting check and calibration
- Connect PC and L Display with USB and HDMI cable(or DP
cable),
- Set Display to primary display or set multi display mode to
duplicate or external only, if Display is connected as an external
display.
Limitation:
- In using touch pen, pen-writing with a hand on the screen is
allowed.
But at a point near from the area attached the hand, pen-writing
may fail.
16-3. Limitation
In using touch pen, pen-writing with a hand on the screen is
allowed.
But at a point near from the area attached the hand, pen-wr
In pen-writing, stand a pen perpendicularly on the touch panel.
In finger-writing, it may be unable to draw normally when pushing
strongly with the inside of a finger.
