PN-K321/K322B FIRMWARE UPDATA PROCEDURES 5-6

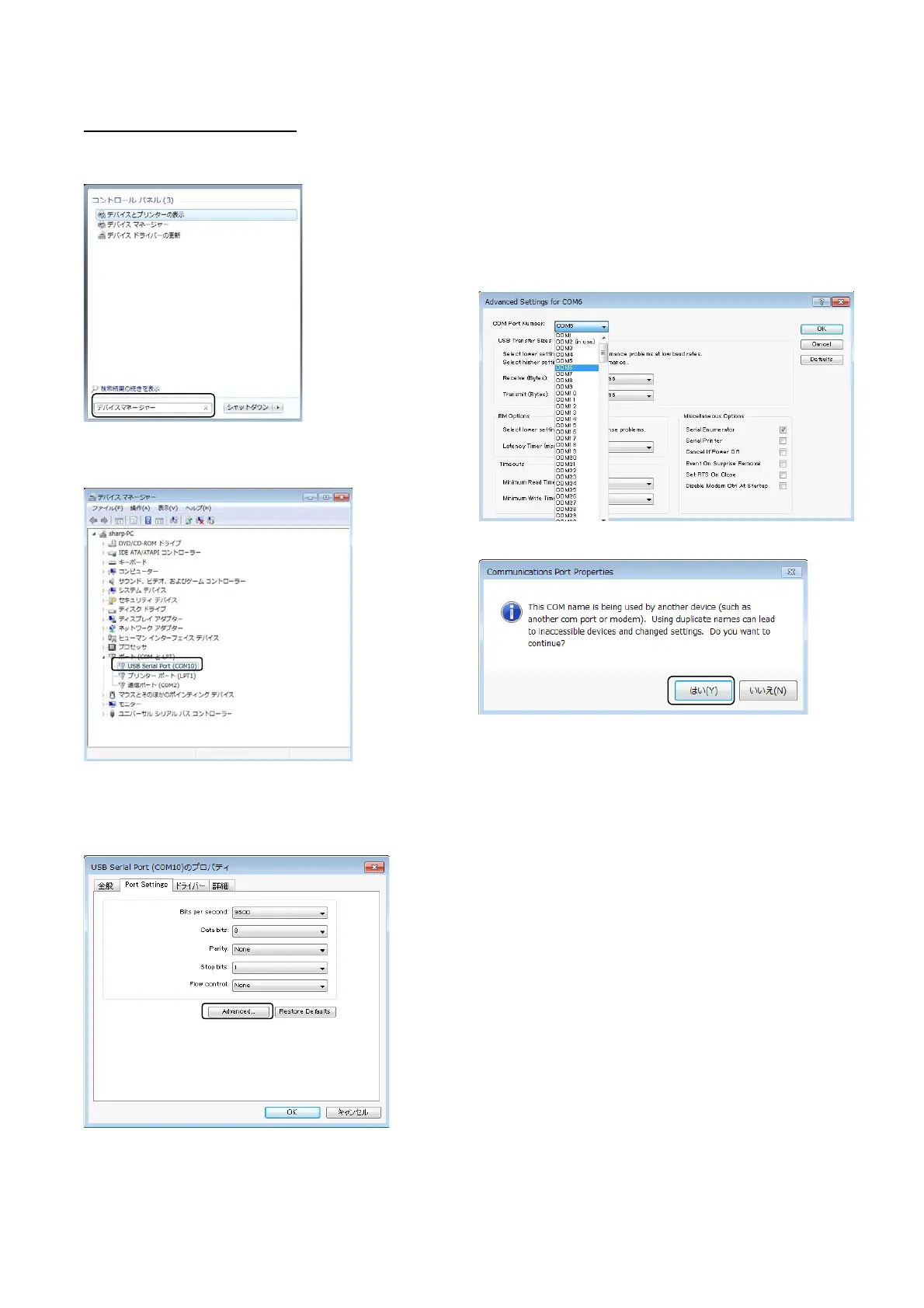

■ SETUP PROCEDURE(Windows7)
1) "device manager" is inputted into "search of program and file"
box.
2) "Device manager" is chosen from the displayed list, device
manager is started, and "a port (COM and LPT)" is displayed.
3) By the COM port currently used, it right-clicks and a "property"
is chosen, on the property screen of communication port, a
"Port Settings" tab is chosen and a "Advanced" button is
pushed.
4) COM number is chosen by "COM port number."
(COM6 is chosen in the example of a screen. )
(CAUTION)
Choose the COM number which is not displayed in "Port (COM
and LPT)" of the device manager. Although COM to choose may
have become "in use", selection is possible when not displayed in
"a port (COM and LPT).”
Choose "yes", when the following dialog is displayed.
Setup of a communication port is completed above.
To Next Page
