(4) Power source
1 The power source should be the rated voltage ±10% with the
capacity corresponding to the max. power consumption.
2 Do not use an extension cord, or operate any other equipment
from the same wall outlet.
(5) Grounding
To avoid electrical hazard, use the properly grounded wall outlet only.
(Carrying the machine)
When carrying the machine, remove the copy tray and hold the dent
portions on the bottom.
3. Installation procedure
(1) Optical system unlocking

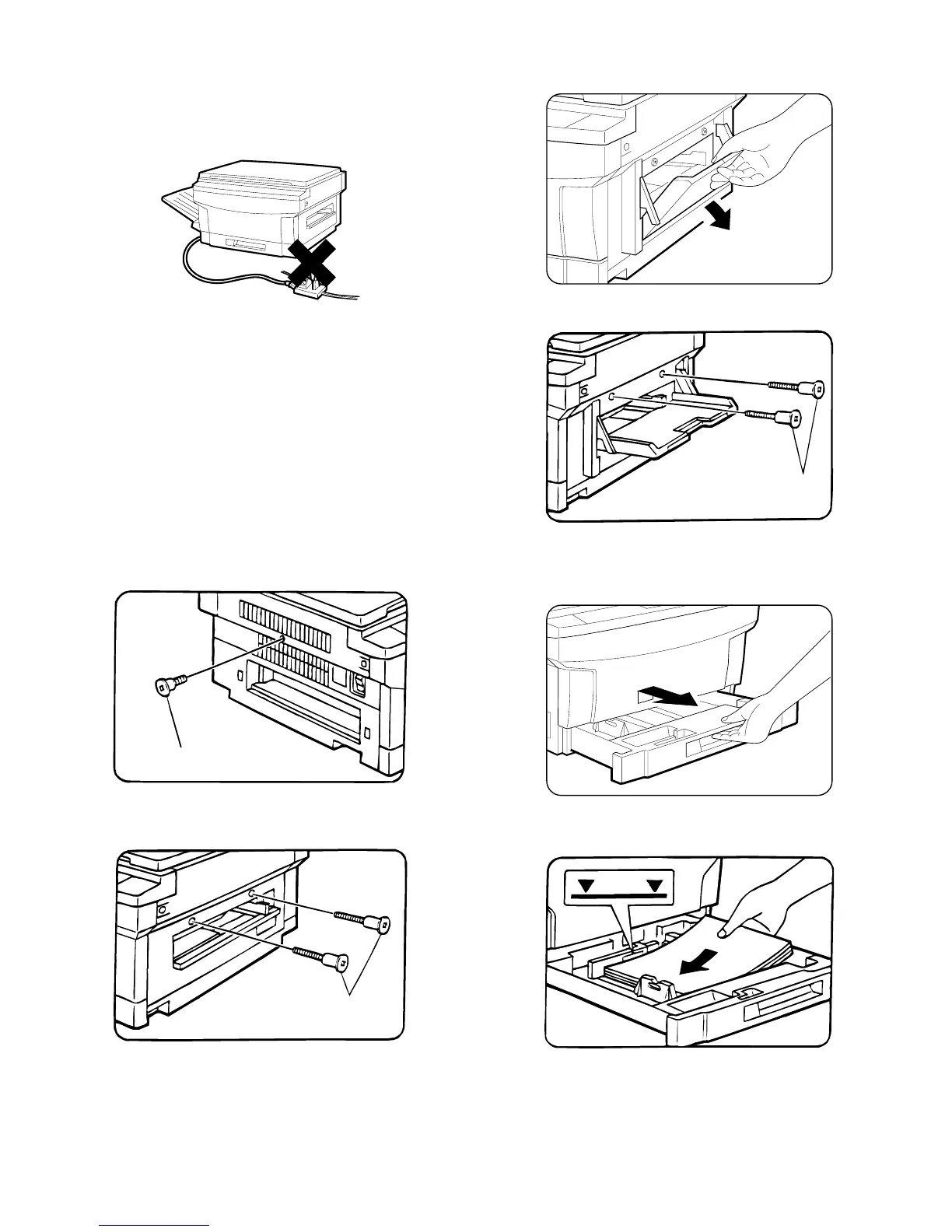

1 Unlock the No.2/No.3 mirror unit.
Remove the No.2/No.3 mirror unit fixing screw (1 pc.) on the left
side of the copier.
2 Unlock the No.4/No.5 mirror unit.
Remove the No.4/No.5 mirror unit fixing screws (2 pcs.) on the
right side of the copier.
[In the case of SF-2314/2414/2514 with SF-MF14 (Optional)
equipped.]
Open the paper feed tray on the right side of the copier.
Remove the No.4/No.5 mirror unit fixing screws (2 pcs.).
Then close the paper feed tray.
(2) Cassette setting
1 Pull out the cassette.
Lift the cassette and slowly pull it out from the copier until it stops.
2 Loading copy paper.
Set the copy papers in the cassette. Do not exceed the limit line
indicator.
Mirror unit fixing screw
Mirror unit fixing screw
Mirror unit fixing screw
4 – 3
