Gently insert the cassette fully into the copier.

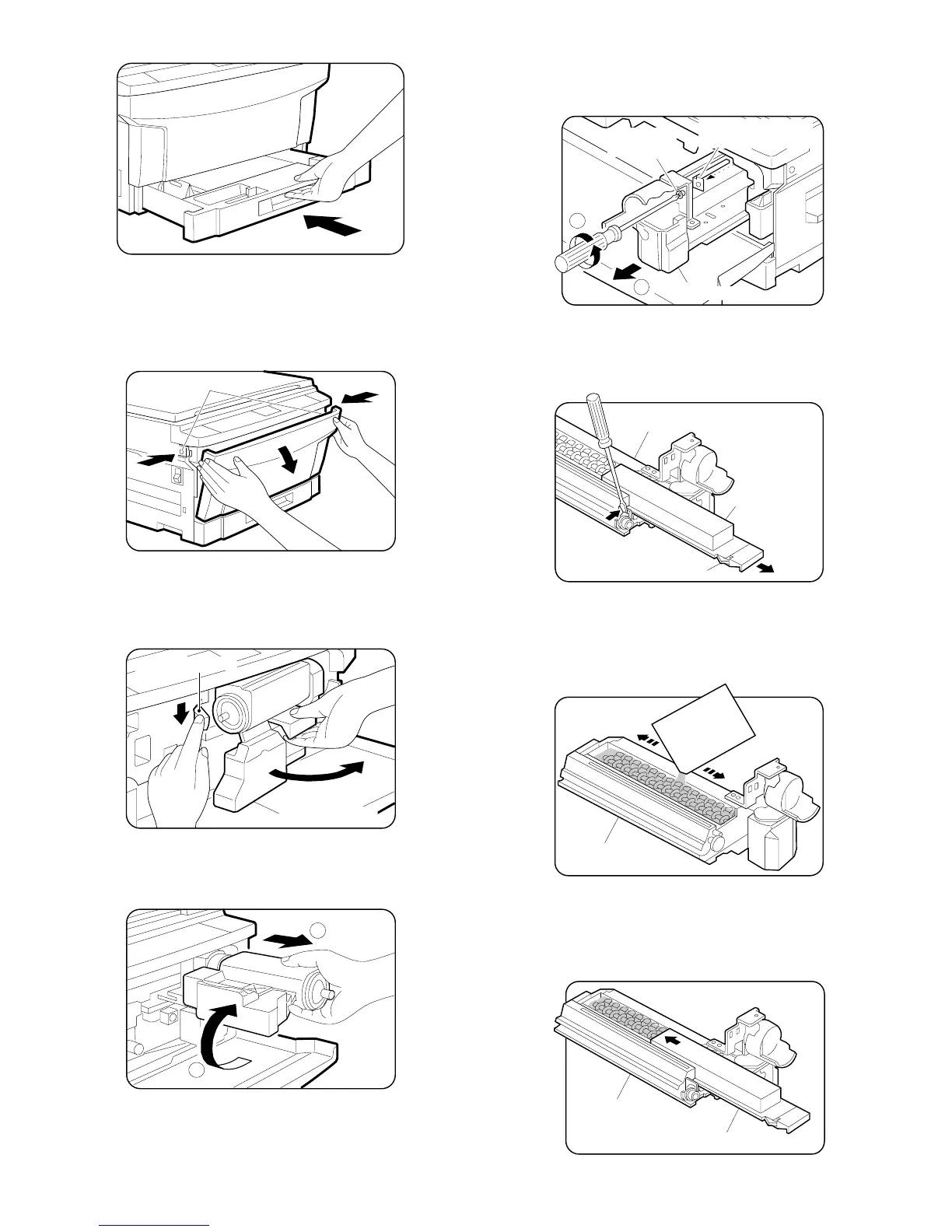

(3) Developer setting
1 Open the front cabinet.
Push the front cabinet open buttons which are on the left and right
sides of the copier, and open the front cabinet.
2 Open the toner cartridge.
While pressing the toner cartridge release lever (B), open the
toner cartridge.
3 Remove the toner cartridge.
Slowly turn the toner cartridge clockwise to remove.
4 Remove the developing unit.
Loosen the fixing screw (step screw) which is fixing the copier and
the developing unit, and slowly pullout the developing unit and
Lenz hold Plate from the copier.
5 Remove the developer tank.
Slightly open the pawl which is fixing the developing unit and the
developer tank with a screw driver, and pull out the developer
tank.
6 Supply developer.
Supply a bag of developer to the developer supply port of the
developing unit.
At that time, move the bag of developer to supply developer even-
ly.
7 Install the developer tank.
Insert the developer tank to the developing unit along the guide of
the developing unit.
At that time, check that the developer tank is securely fixed in the
developing unit.
Front cabinet open button
Toner cartridge
Release lever (B)
1
2
Developer unit
Fixing screw
(step screw)
1
2
Lenz hold plate
(SF-2414/2514 only)
Developing unit
Developing
tank
Pawl
Developing unit
Developing
Developing unit
Developing tank
4 – 4
