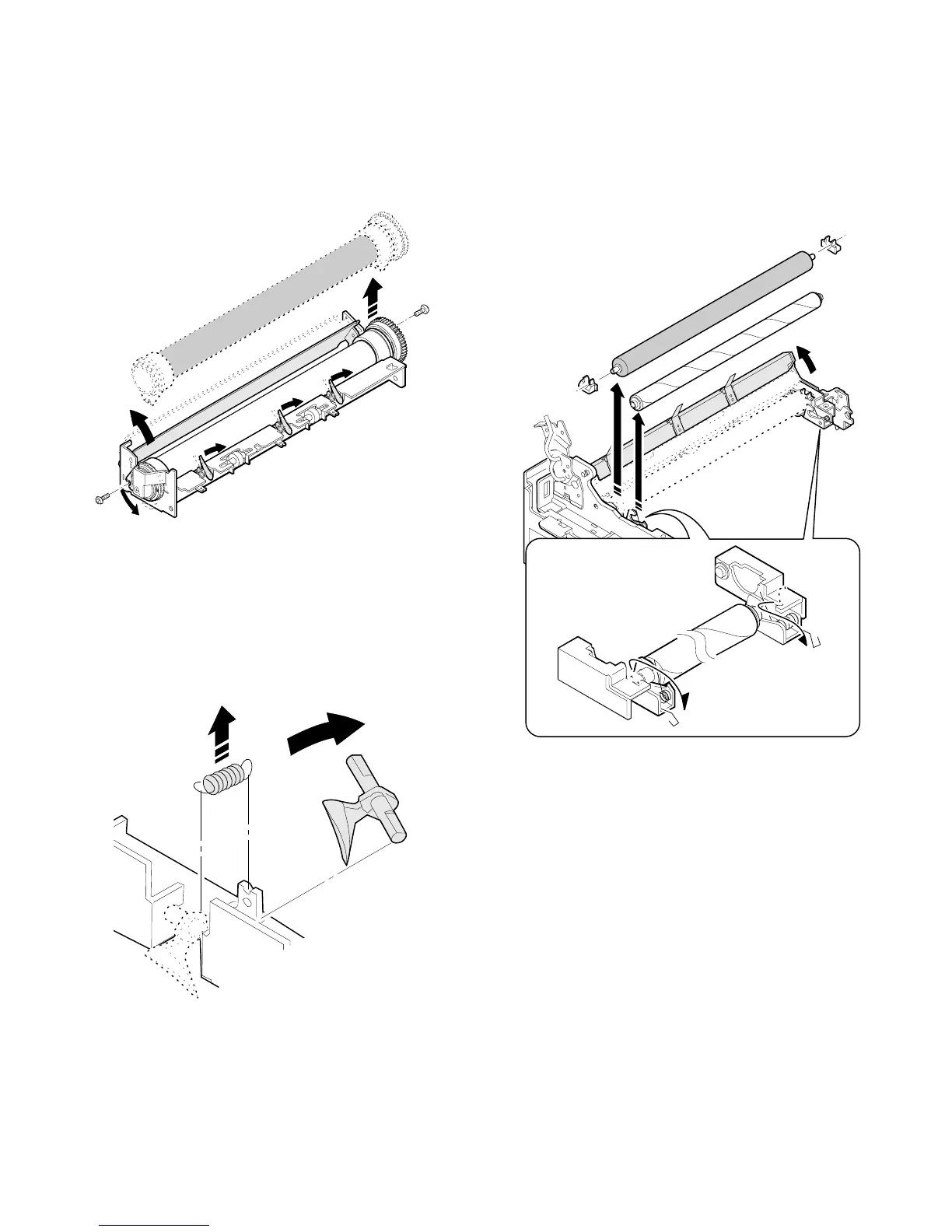

3-3. Upper heat roller ass’y removal
1 Remove the bearing fixing screws (2 pcs.) in the front and the rear
frames.
2 Put the paper guide to the paper exit side and separate the
separation pawl from the roller and fix it.
3 Rotate the fixing screw section of the bearing about 45 degrees
below and pull it upwards.
For assembly, reverse the disassembly procedures.
3-4. Upper separation pawl replacement
1 Remove the fuser unit and remove the cover.
2 Place the fuser unit so that the paper guide is in the lower side.
(The separation pawl is in the upper side.)
3 Remove the tension spring, hold the tip of the separation pawl and
remove it from the supporting section, and tilt it to remove.
For assembly, reverse the disassembly procedures.
3-5. Lower cleaning roller and lower heat roller
replacement
1 Remove the fuser unit.
2 Remove the CL roller springs (2 pcs.) which is fixing the lower
cleaning roller from the hook section.
3 Remove the lower cleaning roller.
4 Lift the paper exit guide, and remove the lower heat roller without
making contact between the roller and the scraper.
For assembly. reverse the disassembly procedures.
6 – 7
