6. Drum section

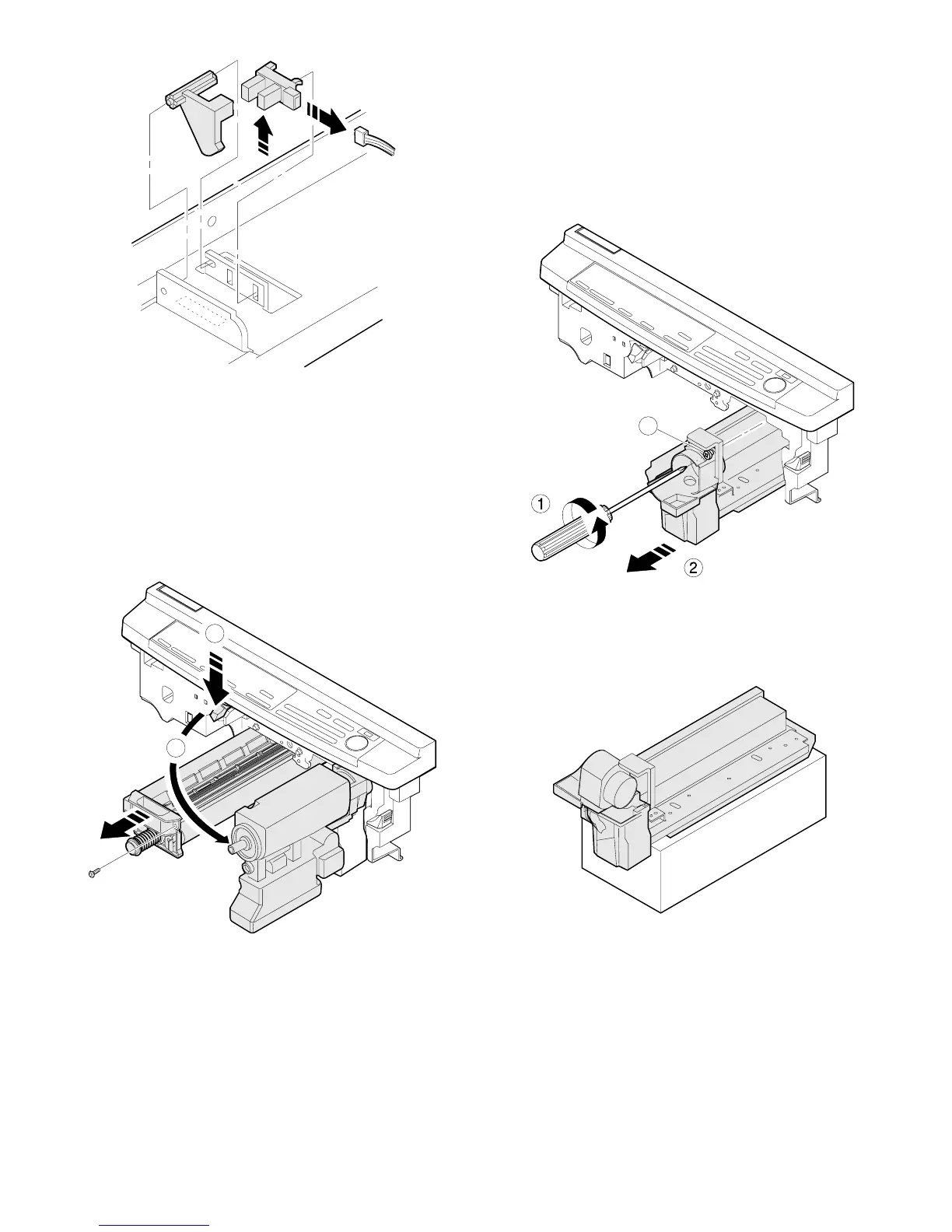

6-1. Drum unit removal
1 Open the front cover.
2 While pressing down the release lever A, open the toner
cartridge slowly. (Arrow B)
3 Remove the screw and remove the drum unit.
7. Developer section
7-1. Developer unit removal
1 Open the front cover.
2 While pressing down the release lever, open the toner cartridge
slowly and remove it.
3 Loosen the step screw A.
4 Pull out the developer unit.
7-2. Developer cartridge removal
1 Place the magnet roller of the developer unit on the box to protect
it.
A
B
A
6 – 16
