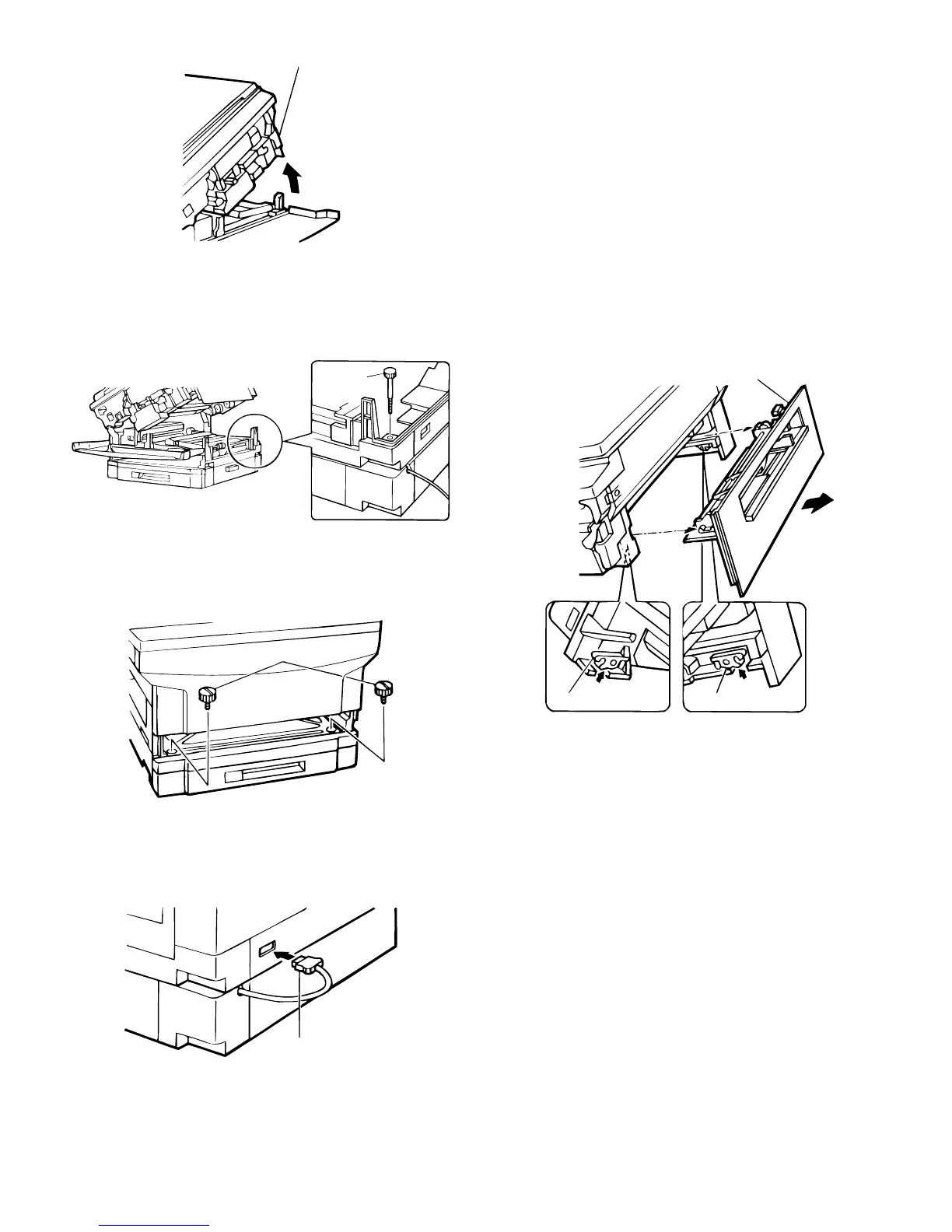

(4) Connect the main copier unit and the paper
feed unit.
1 Secure mounting screw A (1 pc) in the main copier unit (1 loca-
tion).
Then, gently close the upper unit and front cover.
2 Connect the paper feed unit and the main copier unit by securing
mounting screw B (2 pcs) in the mounting holes (2 locations)
located in the slot from which the paper tray was removed.
*
After these procedures have been completed, reload the paper
tray which was removed in step 2.
3 Insert the paper feed unit connector into the jack on the side of the
main copier unit.
6. Optional multi bypass feeder unit
Installation Manual
(1) Open the upper unit of the main copier unit.
1 Press the release buttons on the left and right sides of the main
copier unit’s front cover, then open the front cover.
2 Push the upper half release lever (green) to the right and down,
then gently open the upper unit.
(2) Release the lock for the manual bypass unit and
remove the manual bypass unit.
1 Release the manual bypass unit by pressing upward on the rock
claws (green; 2 locations) which lock it in place in the main copier
unit’s upper unit.
The manual bypass unit will come out toward you slighly.
2 Pull out upon the manual bypass unit to remove it from the main
copier unit.
Upper unit
Mounting
screw A
Mounting screw B
Connector
Manual bypass unit
Rock claw (latch)
Rock claw (latch)
4 – 8
