3-6. Scraper replacement
1 Remove the upper fuser unit.
2 Remove the paper exit paper guide fixing screw (step screw) in
the front frame side, and remove the paper exit paper guide.
3 Remove the scraper hook section from the paper exit paper guide,
and remove the scraper.
Note: When attaching the scraper, be careful not to deform it. Also
be careful to check that the scraper hook section is completely
inserted into the paper exit paper guide.
3-7. Thermistor/thermostat removal
* Note for assembly
• Be sure to bring the thermistor center into contact with the heat
roller.
• Clean and remove foreign materials from the thermistor surface
with alcohol.

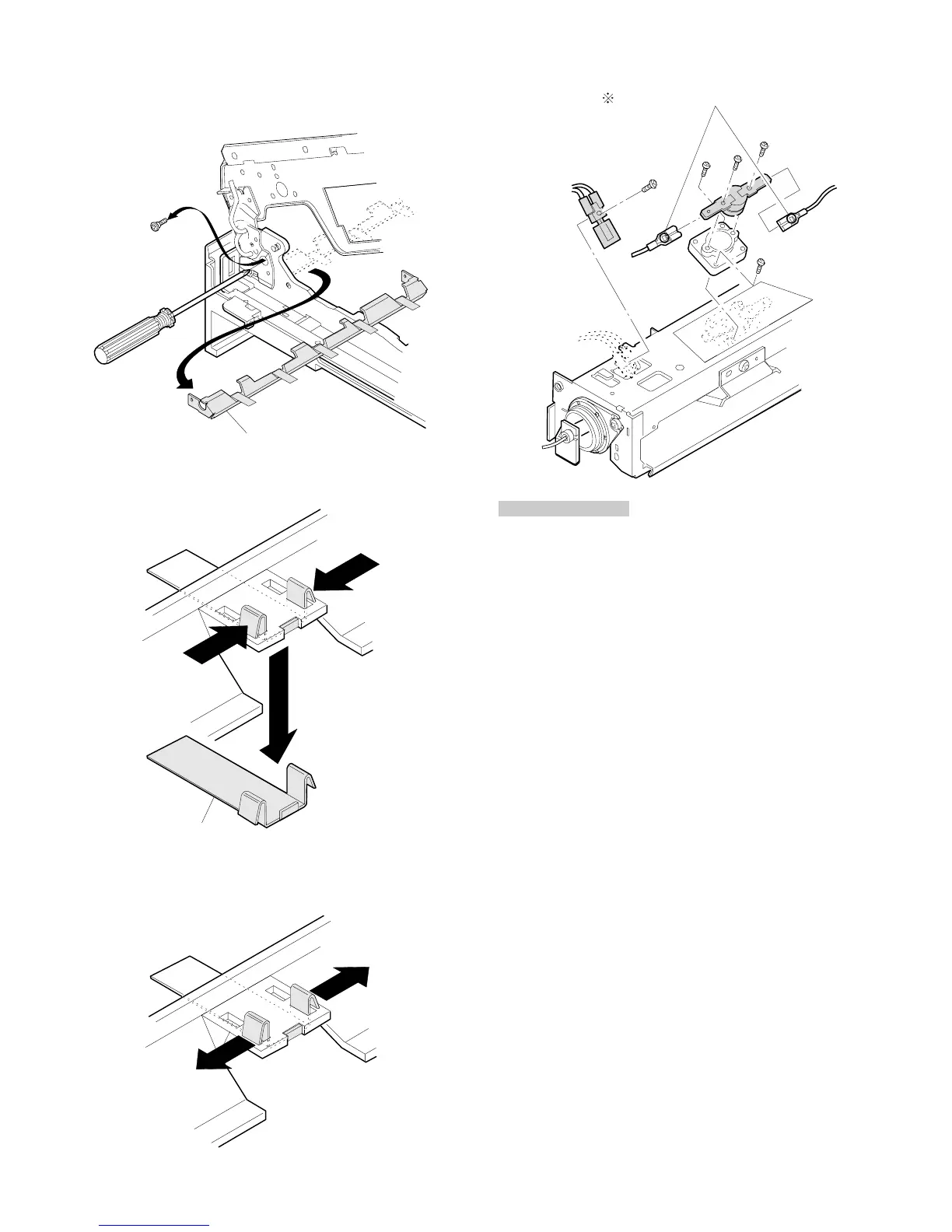

Paper exit paper guide
Scraper
Press this projection to desassemble
