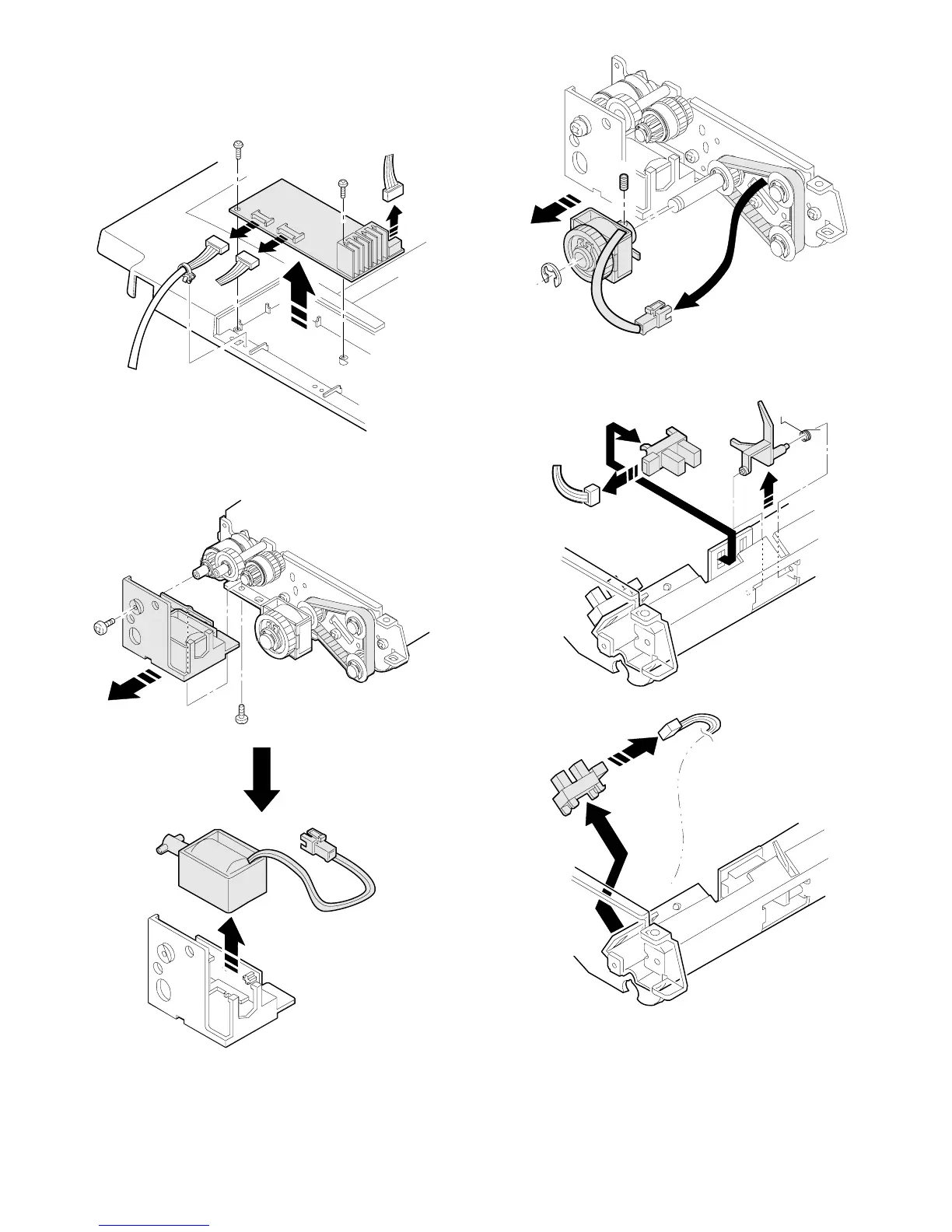

5-4. SPF control PWB replacement
1 Remove the SPF upper cover as shown in "5-1-1, 2."
2 Remove three connectors and two screws from the SPF control
PWB and remove the PWB.
5-5. Clutch/solenoid removal
5-6. Sensor removal
6 – 15
