Service and Maintenance Manual 3-137 960714-02B © 2007 I2407
SECTION 3 – COMPONENT REPAIR
STRIPPER PLATE SENSORS (con’t)
1. Remove the four guards identified in Figure 3-
346.
To replace the right stripper plate sensor,
follow steps 2 through 6:
2. Remove the mounting screw identified in
Figure 3-347. Once free, access the sensor
through the rear of the machine. Follow the
wire routing through the machine, and remove
any wire ties as necessary.
3. Locate the 6-position junction box, and unplug
the connector in port 6. This should free the
sensor completely from the machine. Gently
pull the wire, being careful of other wires still in
the machine (Figure 3-348).
4. Remove the sensor from the mounting block,
and install the new sensor (Figure 3-349).

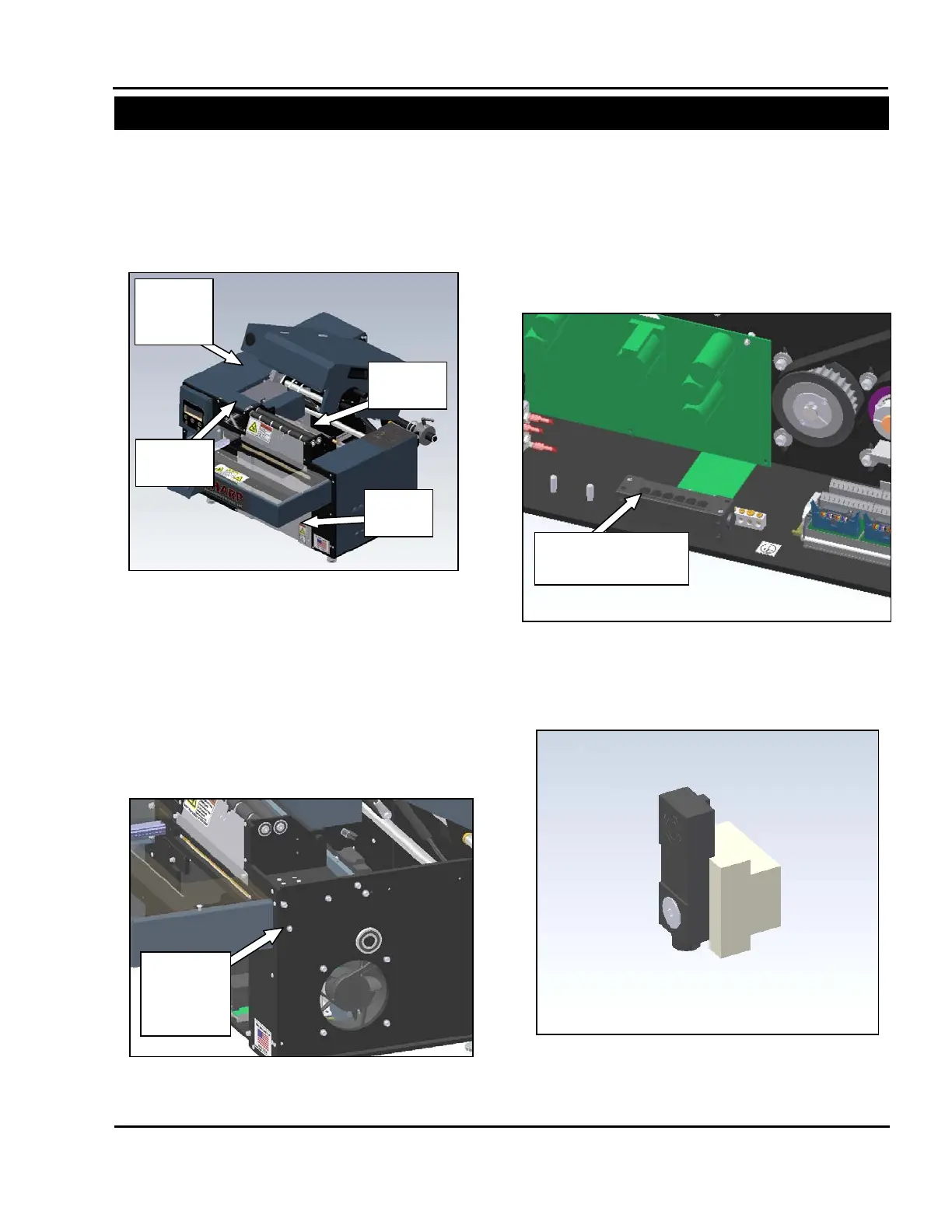

Figure 3-346. Guard Identification
Frame
Sensor
Mounting
Figure 3-347. Right Sensor Mounting Screw
(Receptacle 6)
Figure 3-348.Stripper Plate Sensor Plugs
Figure 3-349. Sensor Mounting Block
