Sending to the UP-700
Page / 12
Designs and specifications are subject to change without notice.
9. At the receiving UP-700;
Upon successful completion of the image data transfer, please perform a Program (SRV) Reset as
outlined on pg. 4.

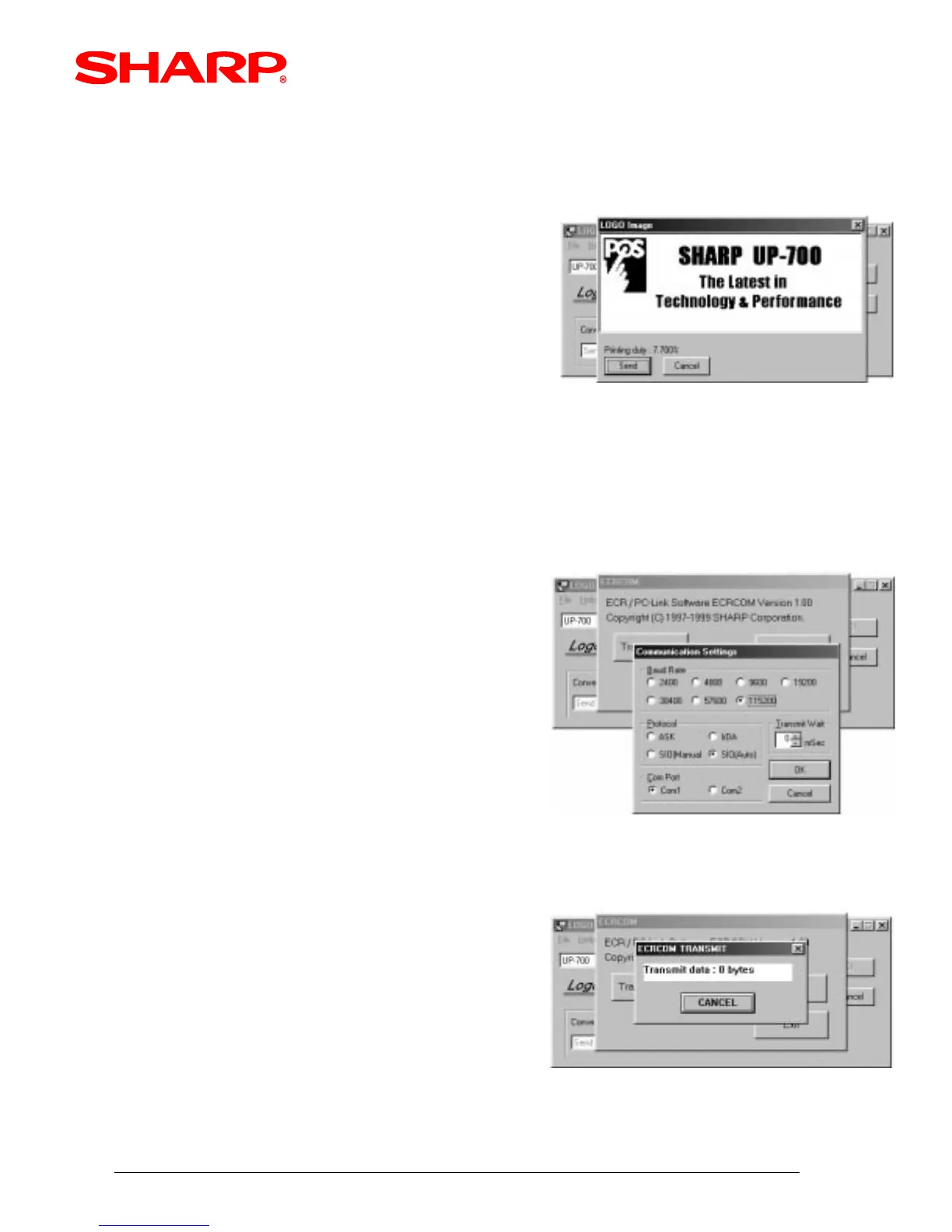

6. Once selected, if the image data complies with the specifications, the image will be displayed.
7. If the image is the correct graphics, then click the [ Send ] button to initiate sending the image to the
UP-700. (Fig. 15)
8. The communications setting menu will automatically appear so to verify the settings as follows;
(1) Select the required Baud Rate, Protocol and Communications port for the PC that would match
the UP-700 settings (Fig. 16).
Note:
For the Protocol setting, only SIO (Manual) and SIO (Auto) are eligible selections.
(FIG.16)
(FIG.15)
(3) Click [ OK ] when you have selected the necessary settings and the application will begin
downloading the image data to the UP-700. (Fig. 17)
(FIG.17)
To Next Page
