Error Code Decriptions
Page / 15
Designs and specifications are subject to change without notice.
Although the LOGOCONV.exe PC utility is simple in execution, there are three places during usage of this
utility where you may encounter errors.
(1) While opening an image data file that does not meet the specifications during transfer or
conversion operations.
(2) During communications if the communications encounters problems for some reason.
1. Error Display when the image data does not meet specifications. (Fig. 23)
2. The following Communications error could result which are related to the UP-700's SIO
communications function.
Code : Description
—————————————————
01 : COMMAND ERROR
02 : PARITY ERROR
03 : CHECKSUM ERROR
04 : DATA SIZE ERROR
05 : HARDWARE ERROR
06 : POWER OFF ERROR (Power off during communication)
07 : TIME OUT ERROR
08 : DSR OFF ERROR (PC’s DTR signal is “OFF”)
11 : TRANSMIT DATA SIZE ERROR
12 : BLOCK SEQUENCE ERROR
13 : NAK ERROR
15 : MACHINE TYPE ERROR (The different model’s data is received.)
Note:
The above error codes are printed on the UP-700's printer on the journal side.
ERROR DESCRIPTIONS

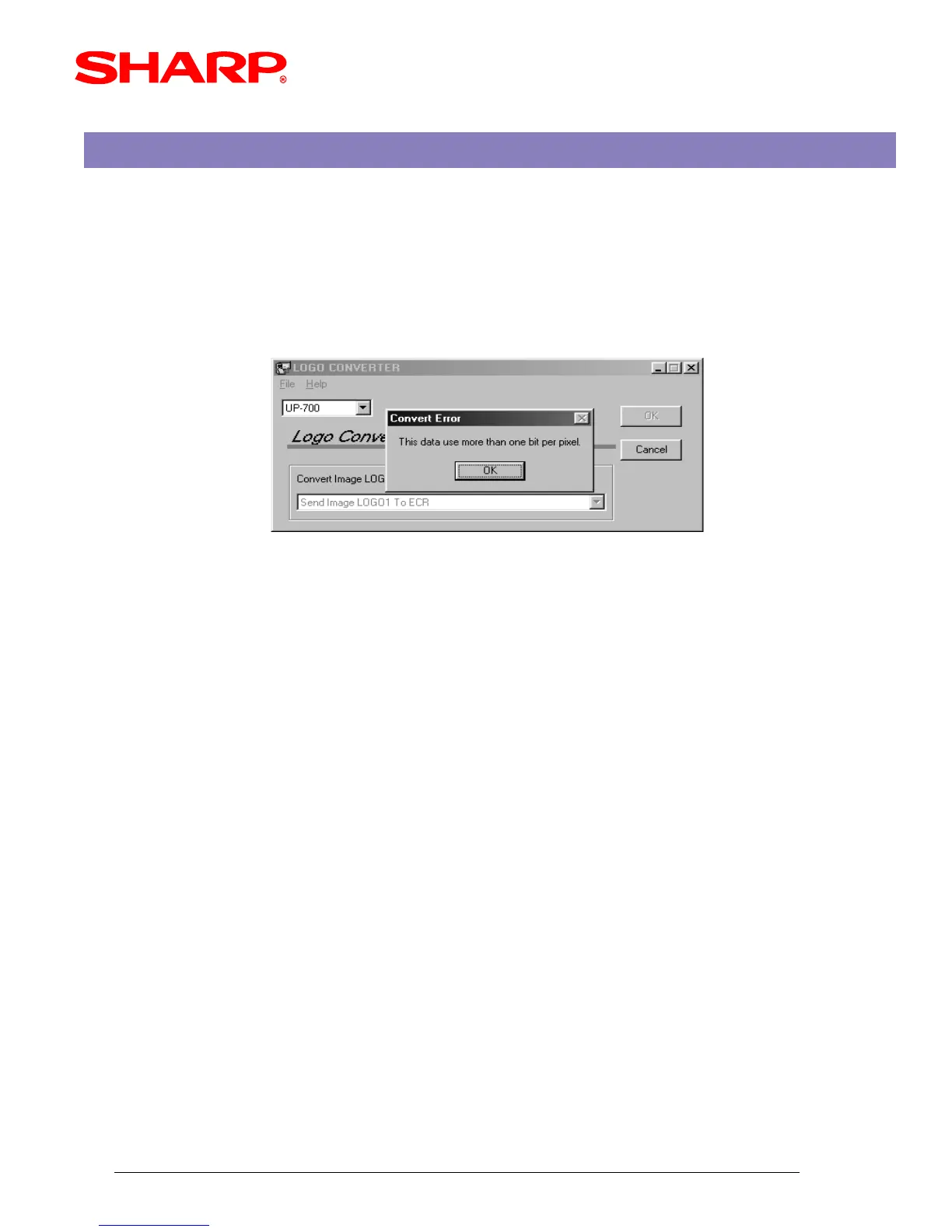

(FIG.23)
