1. Program (SRV) Reset:
To perform a Program Reset, the SRV key (p/n: LKGiM7113RCZZ) must be used. Please refer to
(fig. 2) when performing the below key sequence.
(1) Insert the SRV key and rotate it counterclockwise to the 6 o'clock position to the SRV' position.
(Please note that the display goes out)
(2) Count for 5 seconds.
(3) Rotate the SRV key clockwise to the SRV (7 o'clock) position.
(Please note that the display becomes lit and PRG. RESET *** is printed on the journal printer)
Failure to adhere to the above procedure may result in corrupt or broken RAM addressing

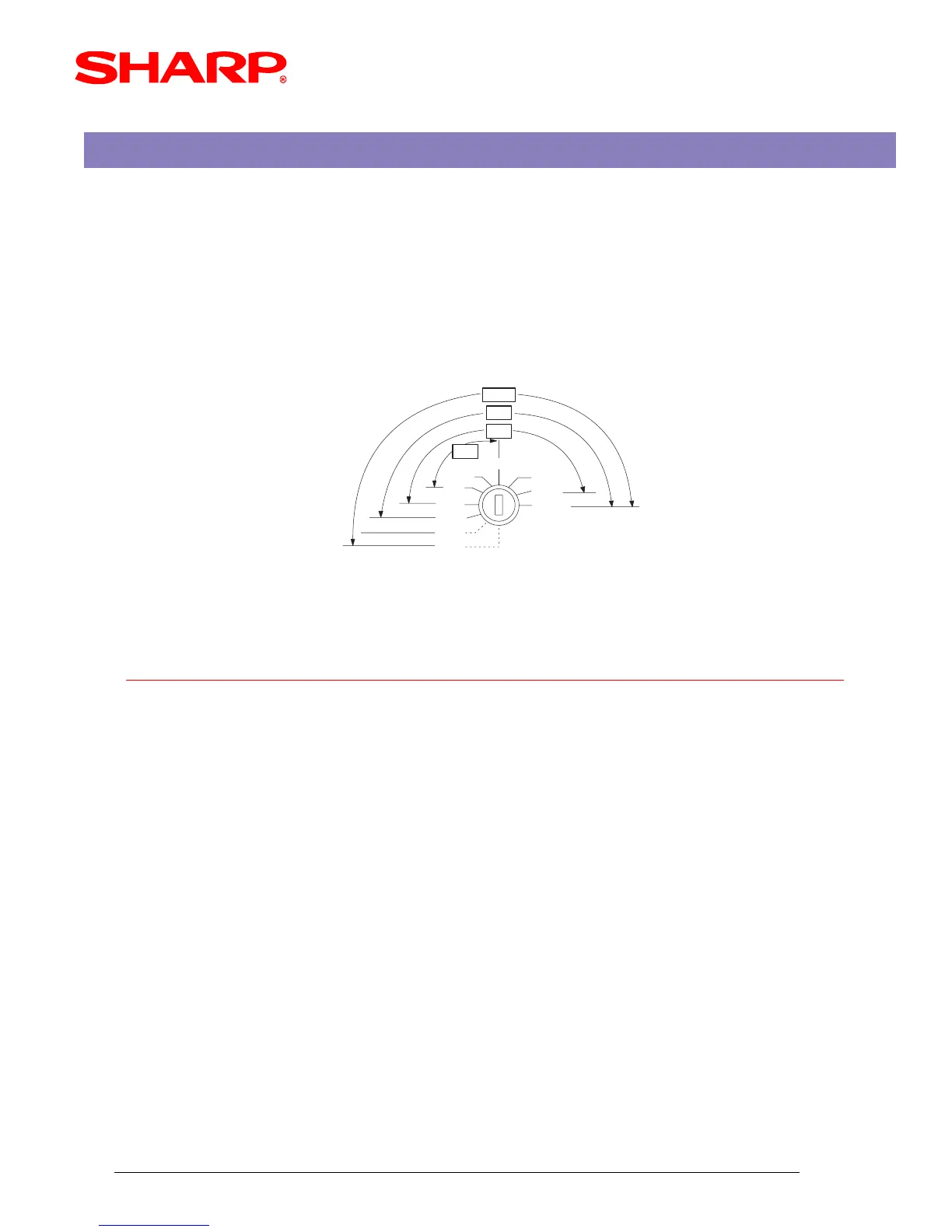

(FIG.2)
RESET PROCEDURES
X2/Z2
X1/Z1
MGR
REG
OP,X/Z
PGM1
OFF
PGM2
(SRV)
(SRV')
OP
SM
MA
SRV
