Sharp UX-108 Service Manual

UX-108U/178U/188U
FO-375U
Document guide upper
5

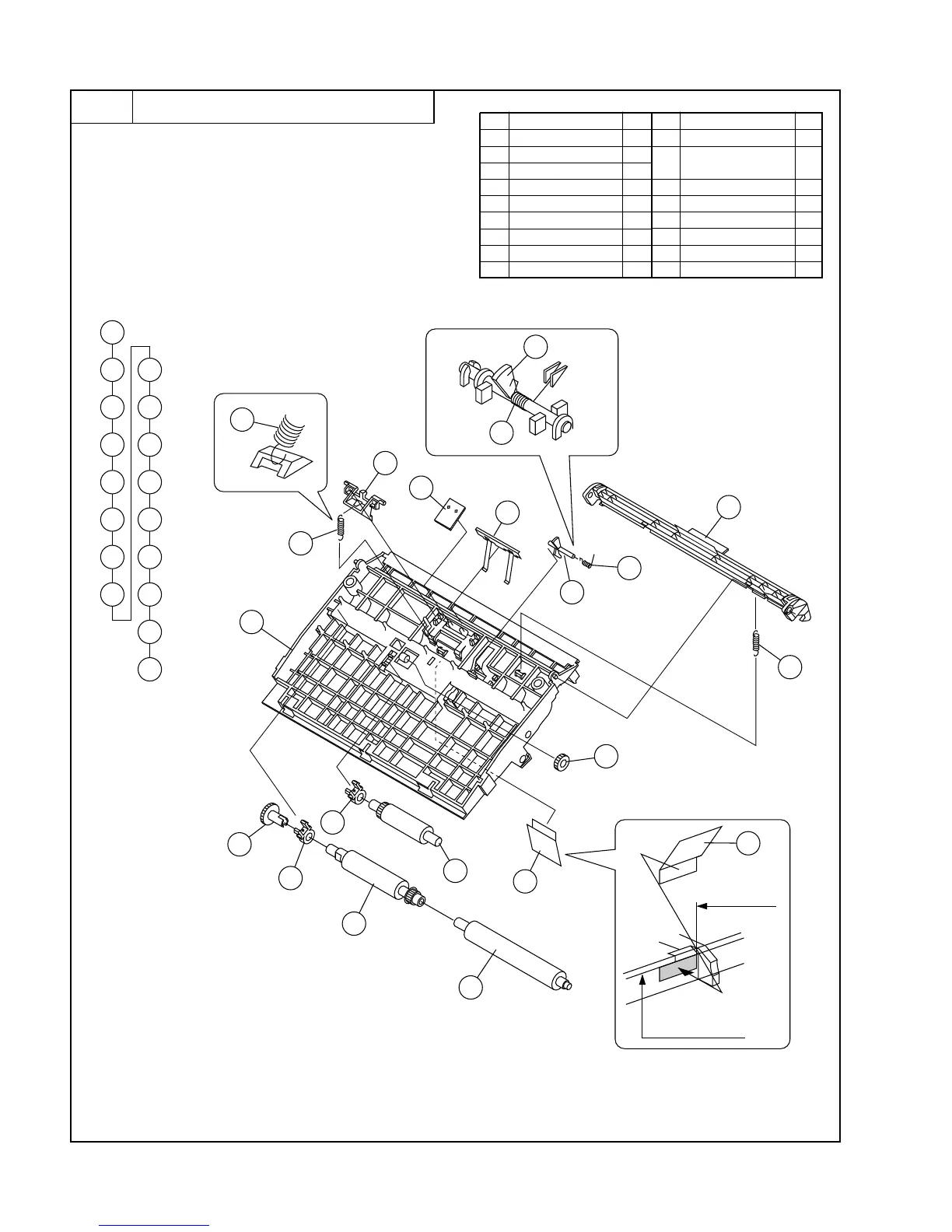

Parts list (Fig. 5)
Fig. 5
3 – 7
No. Part name Q’ty No. Part name Q’ty
1 Rear sheet 1
2 CIS gear, 29Z 1
3 CIS roller A ass’y 1
4 Transfer bearing 1
5 CIS roller B ass’y 1
6 Transfer roller 1
7 Transfer bearing 1
8 Idler gear, 20Z 1
9 Panel lock lever spring 1
10 Panel lock lever 1
11 Document sensor lever 1
spring
12 Document sensor lever 1
13 Separate spring 1
14 Separator plate 1
15 Paper feed spring 1
16 Separator rubber 1
17 Document guide upper 1
2
1
3
4
5
6
8
7
9
10
11
12
13
14
15
16
17
Applying
standard
Applying
standard
12
11
14
13
13
16
15
12
11
9
8
17
1
6
7
2
4
3
5
1
10
