UX-108U/178U/188U
FO-375U
8 – 1
CHAPTER 8. OTHERS

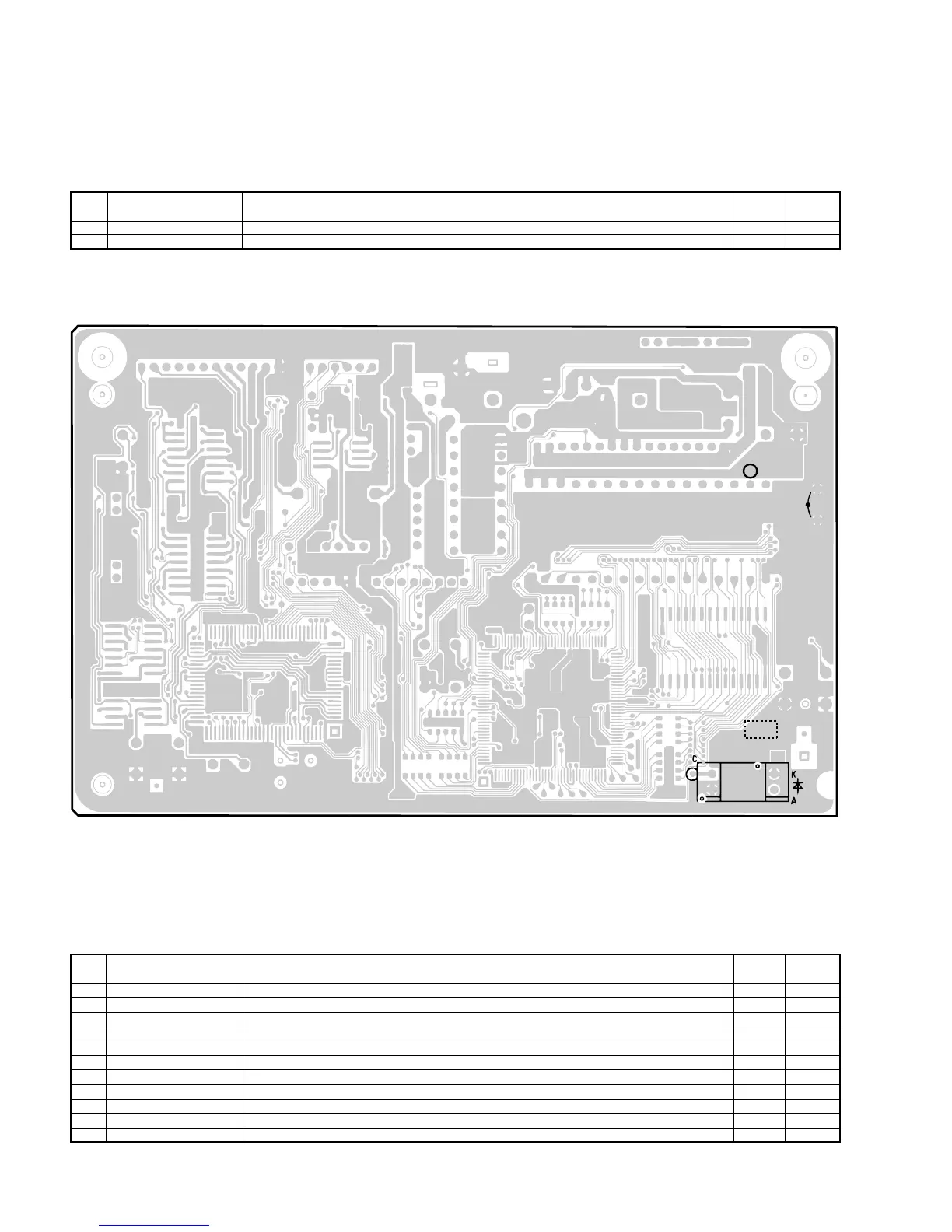

[1] Service tools
1. List
Relay board unit
NO. PARTS CODE DESCRIPTION Q’TY
PRICE
RANK
1 C P W B S 2 9 1 5 S C S 1 Relay board unit 1BN
2 P S H E Z 3 3 5 4 S C Z Z Shading wave memory standard paper 1AD
1 C C N W – 4 7 5 6 S C 0 1 SPEAKER RELAY CABLE 1AK
2 C C N W – 4 7 5 7 S C 0 1 PANEL RELAY CABLE 1AW
3 C C N W – 4 7 5 8 S C 0 1 CIS RELAY CABLE 1AQ
4 C C N W – 4 7 5 9 S C 0 1 HEAD RELAY CABLE 1AX
5 C C N W – 4 7 6 0 S C 0 1 CAM SWITCH RELAY CABLE 1AK
6 C C N W – 4 7 6 1 S C 0 1 CUTTER SWITCH RELAY CABLE 1AK
7 C C N W – 4 7 6 3 S C 0 1 MOTOR RELAY CABLE 1AP
8 Q C N W – 4 7 6 4 S C Z Z PAPER SENSOR RELAY CABLE 1BB
9 V H P R P i
–
5 7 4 / / / PHOTO TRANSISTOR [PSNS] 1AF
10 V R S - T S 2 A D 2 2 1 J RESISTOR (1/10W 220Ω ±5%)[R100] 1AA
11 Q P W B S 2 9 1 5 S C Z 4 EXTENSION PWB 1AR
NO. PARTS CODE DESCRIPTION Q’TY
PRICE
RANK
PSNS
(TP3)
PI1
DG
(TP1)
+5V
(TP2)
R100
