Sharp UX-108 Service Manual

UX-108U/178U/188U
FO-375U
Operation panel
6

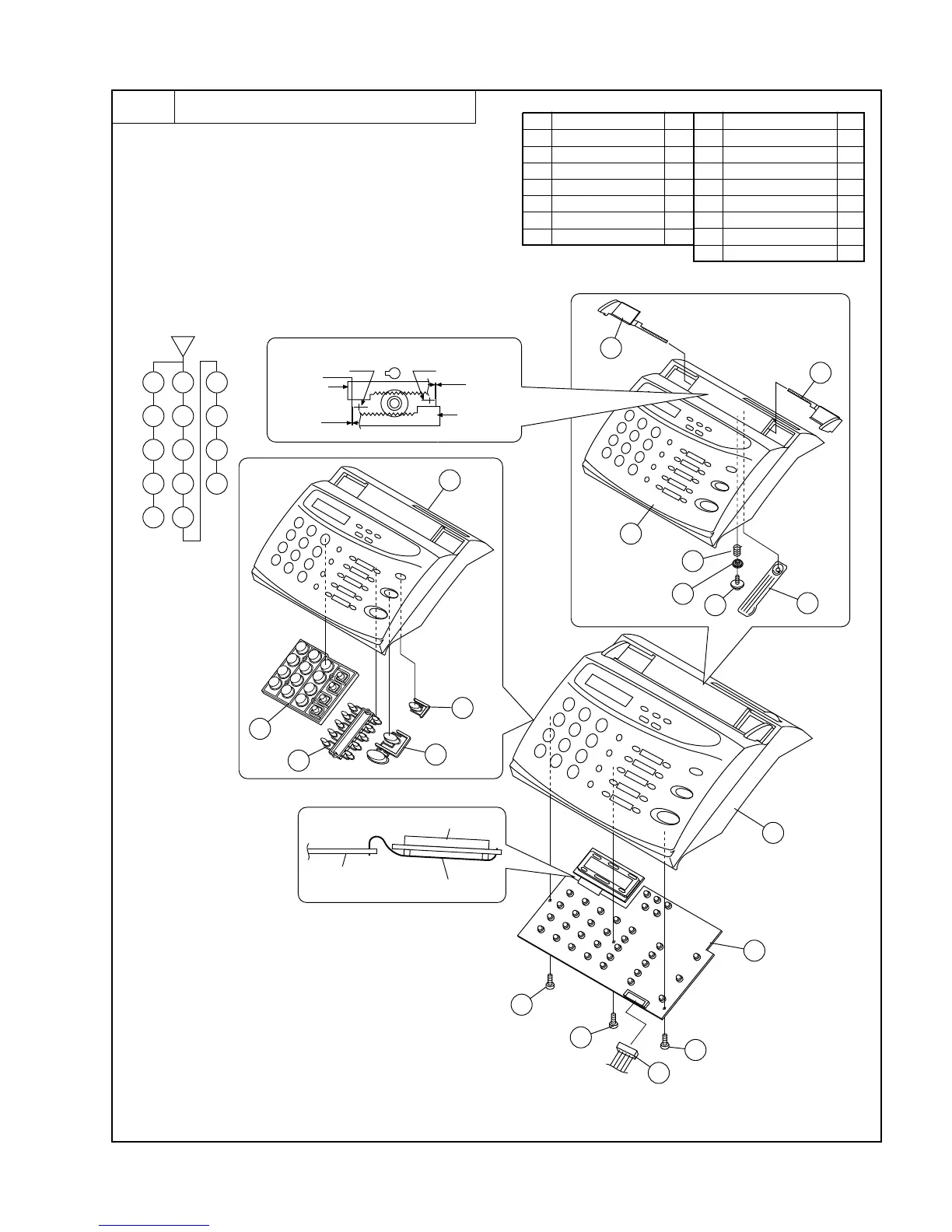

Parts list (Fig. 6)
Fig. 6
3 – 8
No. Part name Q’ty No. Part name Q’ty
1 Operation panel unit 1
2 Screw (2×6) 3
3 Operation panel cable 1
4 Operation panel PWB 1
5 Document tray 1
6 Screw 1
7 Pinion gear 1
8 Hopper spring 1
9 Hopper guide, right 1
10 Hopper guide, left 1
11 Stop key 1
12 Start key 1
13 Direct key 1
14 12 key 1
15 Operation panel 1
Operation
panel PWB
LCD cable
LCD PWB
Confim of HOPPER GUIDE position
HOPPER
GUIDE (R)
HOPPER
GUIDE (L)
2
3
4
5
6
1
8
7
9
10 11
12
13
14
15
15
1
10
9
8
6
7
5
11
12
13
14
2
2
3
2
4
1
RibRib
GAP 0
GAP 0
