Sharp UX-108 Service Manual

UX-108U/178U/188U
FO-375U

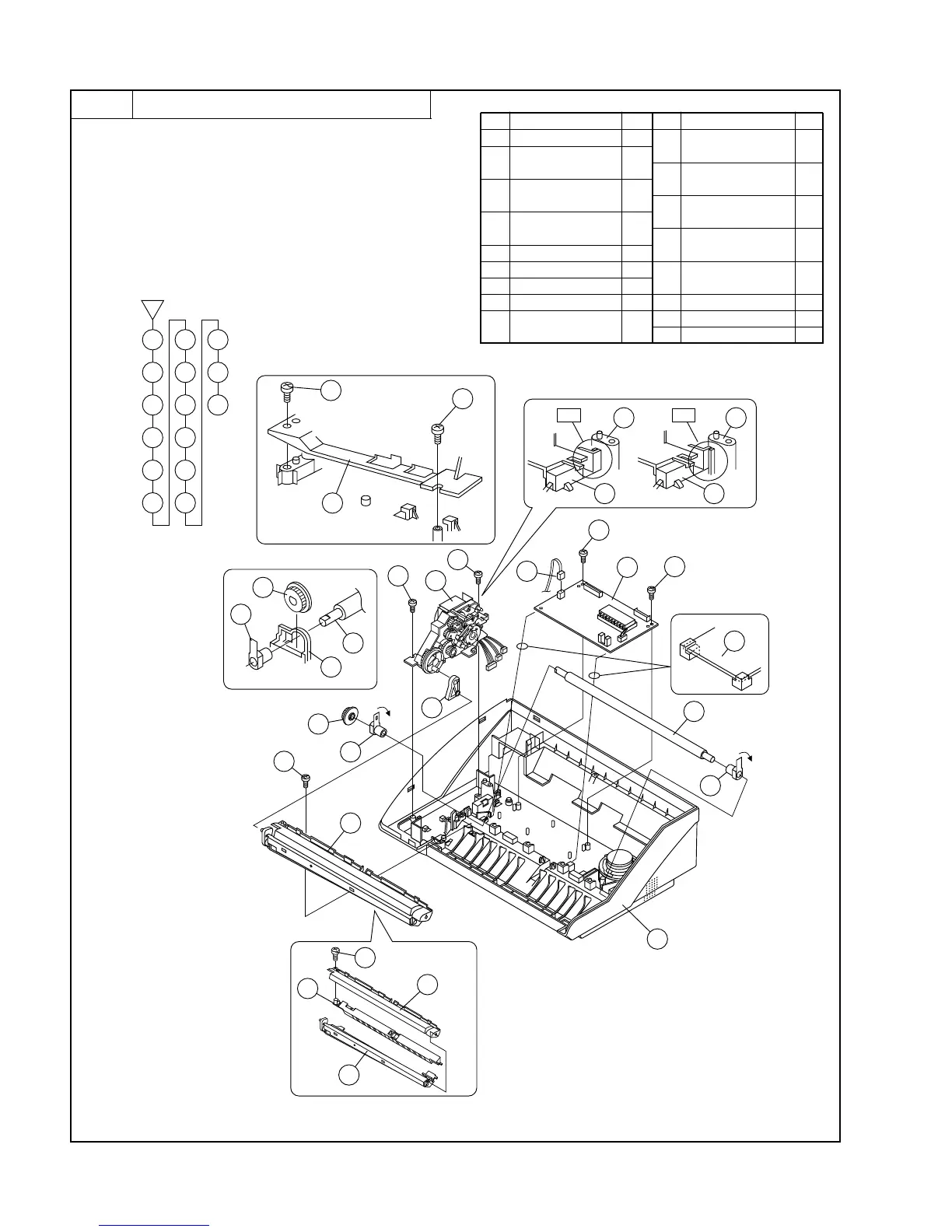

Parts list (Fig. 7)
Fig. 7
Drive unit, PWB and cutter7
3 – 9
No. Part name Q’ty No. Part name Q’ty
1 Mechanism unit 1
2 Screw (3×10) 2
(Cutter model)
2 Screw (3×10) 1
(Non Cutter model)
3 Cutter arm 1
(Cutter model only)
4 Drive unit 1
5 Platen gear 1
6 Platen roller 1
7 Platen bearing 2
8 Screw (3×10) 1
(Cutter model only)
9 Cutter unit 1
(Cutter model only)
10 Screw (3×10) 1
(Cutter model only)
11 Cutter cover 1
(Cutter model only)
12 Cutter guide 1
(Cutter model only)
13 Cutter 1
(Cutter model only)
14 Screw (3×10) 2
15 Speaker cable 1
16 Control PWB unit 1
2
3
4
5
16
1
7
6
8
9
10
11
14
15
12
13
1
5
7
6
1
2
2
4
2
4
2
15
14
14
16
6
16
7
3
5
7
8
9
10
11
12
13
1
4
1
4
OK NG
Cutter
model
only
