Sharp UX-108 Service Manual

UX-108U/178U/188U
FO-375U

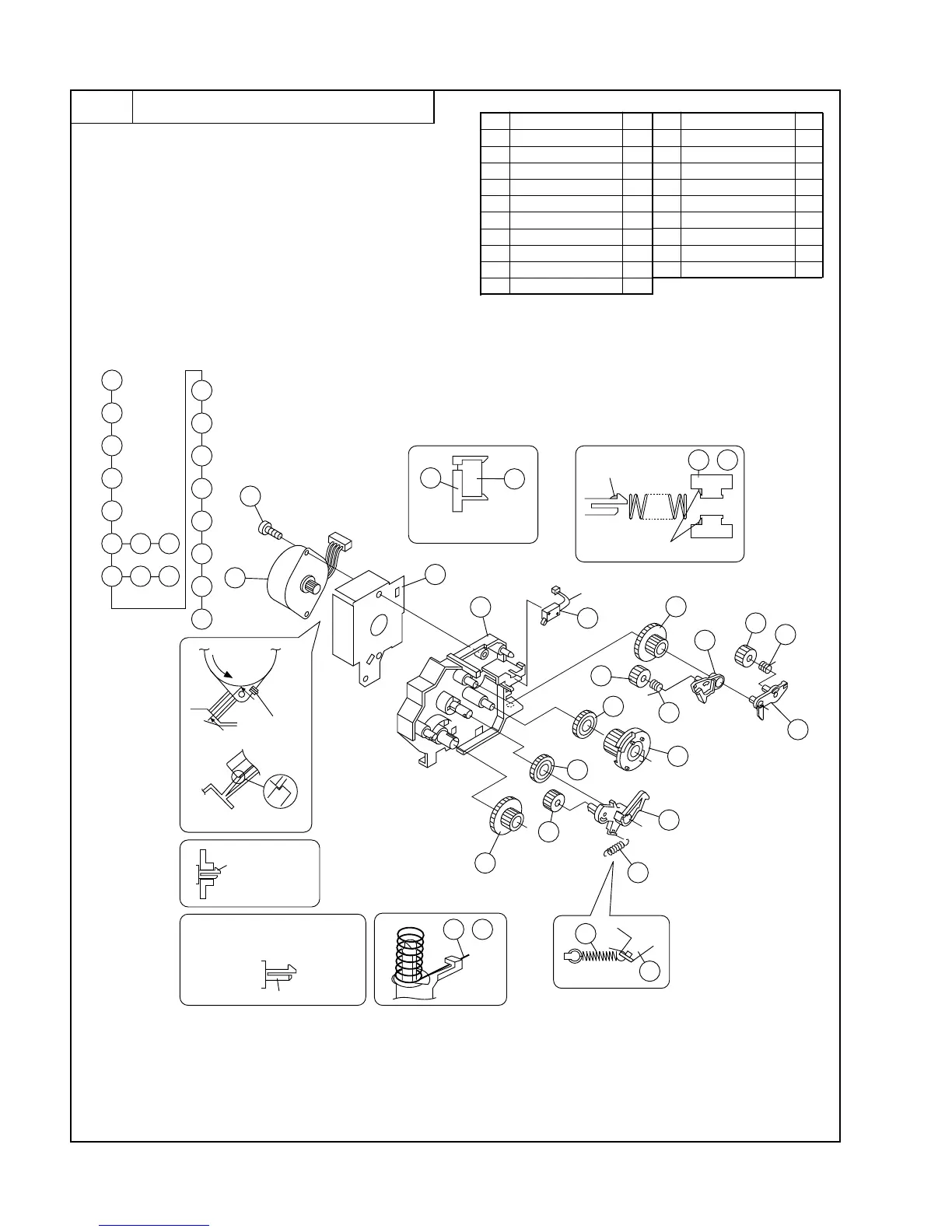

Drive frame (Non cutter model)
9
Fig. 9
3 – 11
Parts list (Fig. 9)
No. Part name Q’ty No. Part name Q’ty
1 Change lever spring 1
2 Planet gear, 17Z 1
3 Change lever A 1
4 Cam 1
5 Reduction gear, 17/36Z 1
6 Planet gear, 17Z 1
7 Planet gear spring 1
8 Planet gear lever A 1
9 Planet gear, 17Z 1
10 Planet gear spring 1
11 Planet gear lever B 1
12 Idler gear, 25Z 1
13 Cam switch 1
14 Reduction gear, 17Z 1
15 Idler gear, 25Z 1
16 Screw (3×10) 1
17 Motor 1
18 Motor heat sink 1
19 Drive frame 1
1
2
3
4
5
6
9
19
7
10
8
11
13
12
14
15
16
17
18
16
19
13
17
18
19
13
14
6
7
8
11
9
10
15
4
12
2
1
1
3
3
5
107
To be the switch
linked by hooks
Grease
Grease
Green
Lock the
MOTOR
by this rib
SECTION : A-A
A
A
Hook be doing
lock
NOTE) Apply certainly to
a part of a nail at the time
of GREASE application
GEAR attachment boss
,
96
,
