Sharp UX-178 Service Manual

UX-108U/178U/188U
FO-375U

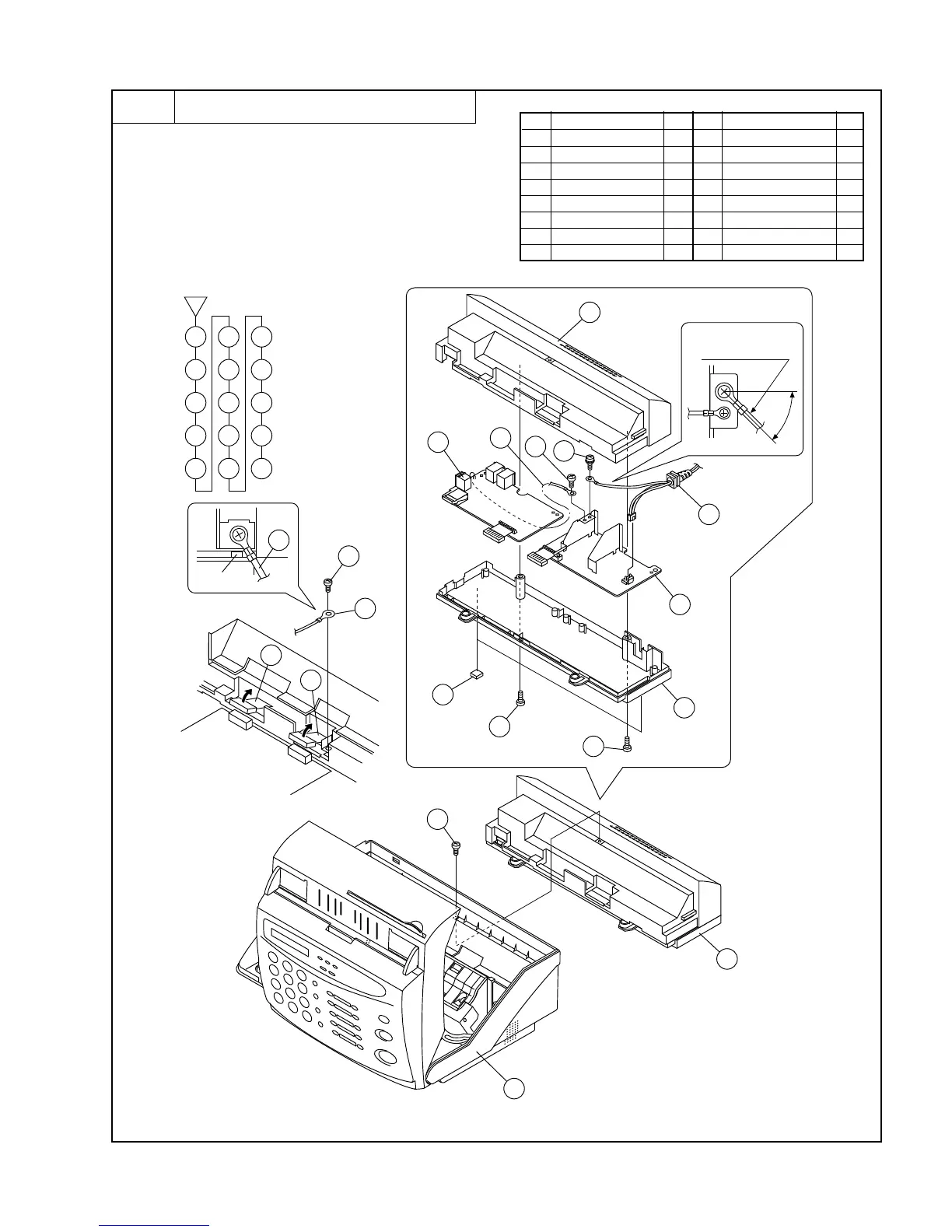

PWB case top, bottom and PWB
2
Parts list (Fig. 2)
Fig. 2
3 – 4
No. Part name Q’ty No. Part name Q’ty
1 Mechanism unit 1
2 Screw (3×6) 1
3 Head earth cable 1
4 Connector 2
5 Screw (3×10) 1
6 PWB case unit 1
7 Screw (3×10) 2
8 PWB case, top 1
9 Screw (4×6) 1
10 AC cord ass’y 1
11 Screw (3×6) 1
12 TEL ARG cable 1
13 Power supply PWB unit 1
14 TEL/LIU PWB unit 1
15 Rubber leg 2
16 PWB case, bottom 1
2
3
4
5
6
1
6
13
10
11
12
15
7
7
16
1
8
7
9
10
11
12
13
14
15
16
9
8
AC cord
earth cable
45˚
2
5
3
4
4
Rib
3
Control
PWB
14
