UX-108U/178U/188U
FO-375U

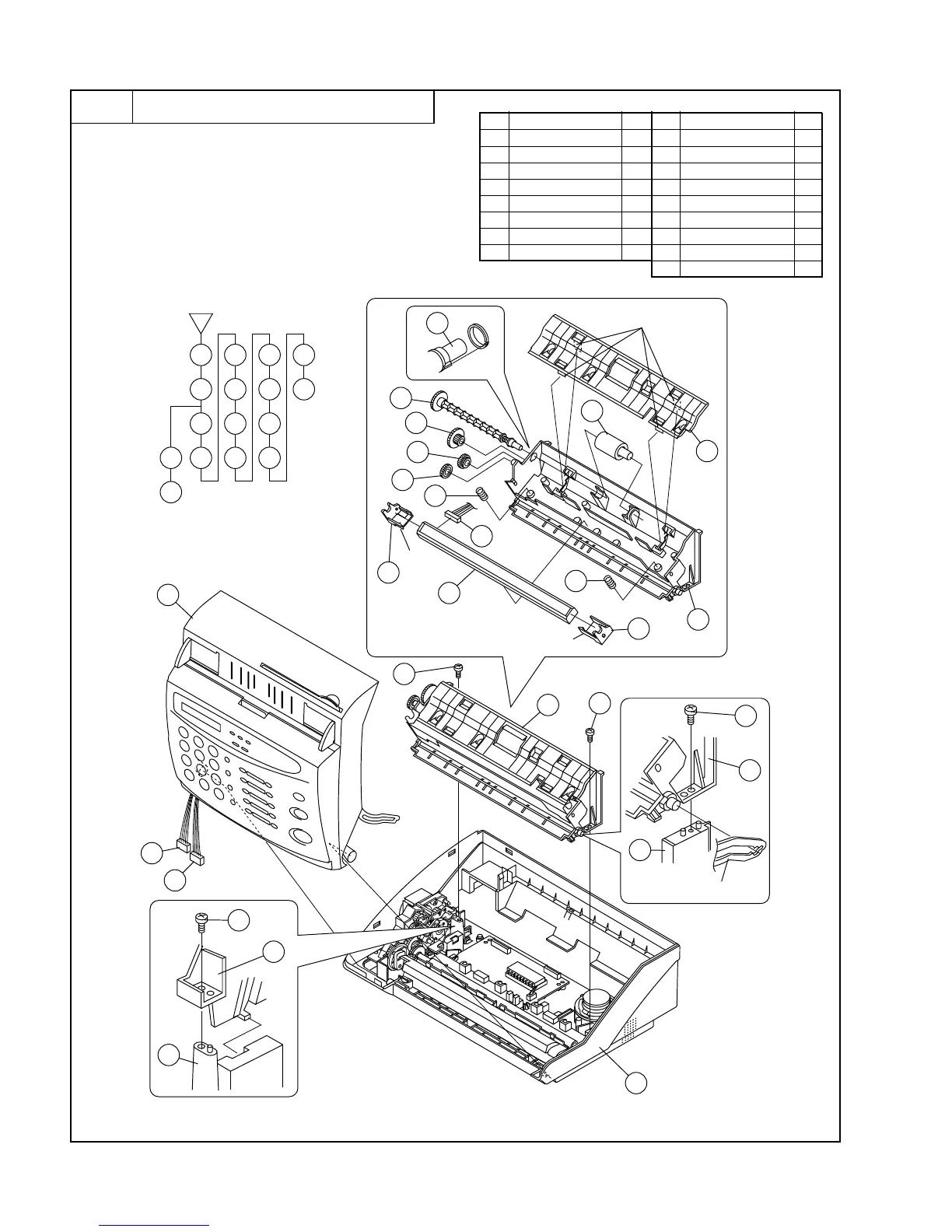

Operation panel unit and scanner frame
3
Parts list (Fig. 3)
Fig. 3
3 – 5
No. Part name Q’ty No. Part name Q’ty
1 Mechanism unit 1
2 Screw (3×10) 2
3 Scanner frame unit 1
4 Document guide lower 1
5 Reduction gear, 17/36Z 1
6 Reduction gear, 17/21Z 1
7 Idler gear, 25Z 1
8 Feed roller shaft 1
9 Feed roller 1
10 CIS cable 1
11 CIS support, right 1
12 CIS unit 1
13 CIS support, left 1
14 CIS spring 2
15 Scanner frame 1
16 Panel and head cable 2
17 Operation panel unit 1
2
3
4
516
17
1
7
6
8
9
10
11
14
15
12
13
8
4
15
9
8
5
6
14
7
10
14
11
2
2
3
2
3
1
16
16
17
1
13
12
Stopper plate
Hook
Hook
Hook
2
3
1
