UX-108U/178U/188U
FO-375U

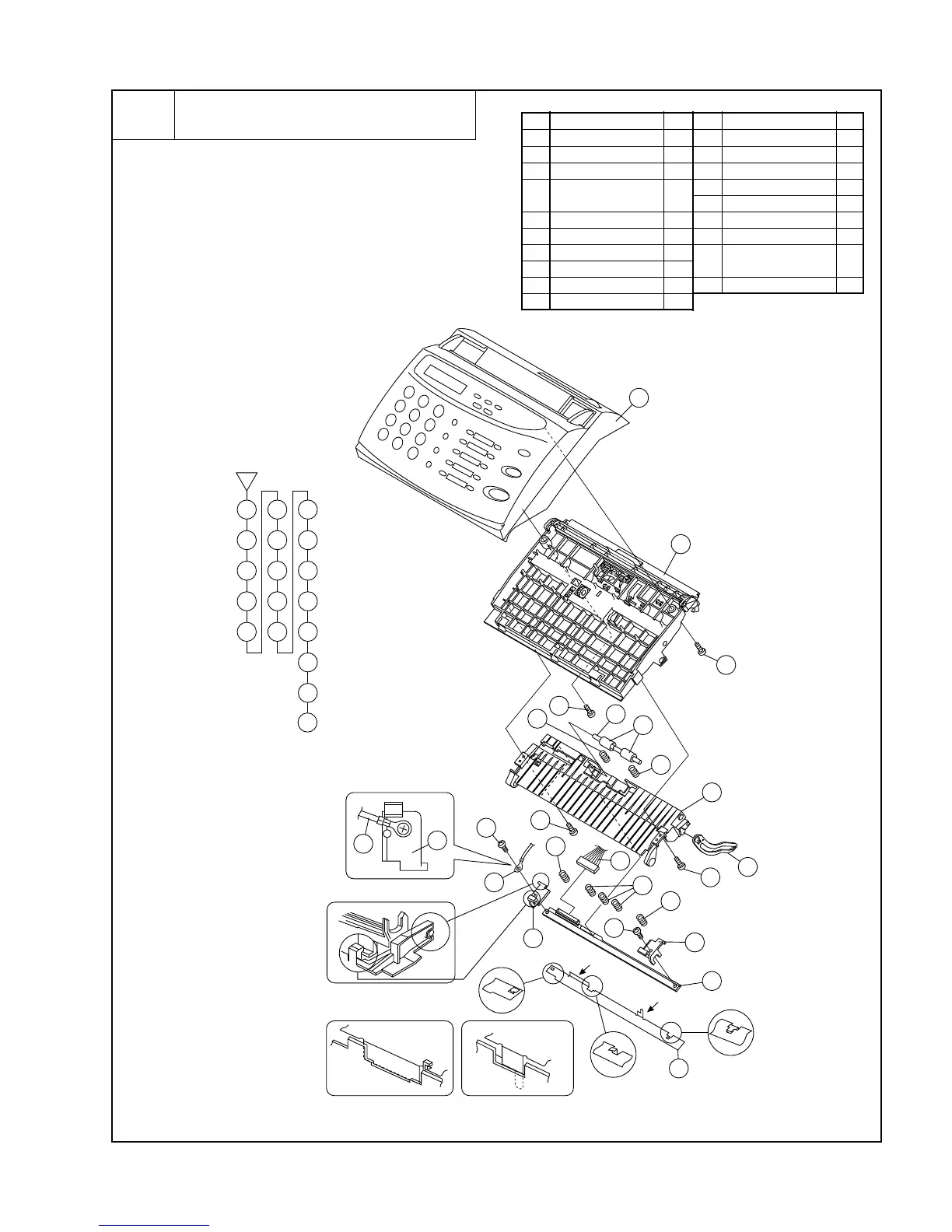

Document guide upper unit and head
frame
4
Parts list (Fig. 4)
Fig. 4
3 – 6
No. Part name Q’ty No. Part name Q’ty
1 Operation panel unit 1
2 Screw (3×10) 2
3 Support plate 1
4 Document guide upper 1
unit
5 Screw (3×10) 2
6 Head sheet 1
7 Head cable 1
8 Head spring A 2
9 Head spring B 3
10 Screw (3×6) 1
11 Head support, right 1
12 Screw (3×6) 1
13 Head earth cable 1
14 Head support, left 1
15 Thermal head 1
16 Pinch roller shaft 1
17 Pinch roller 2
18 Pinch roller pressing 2
spring
19 Head frame 1
1
4
2
16
2
17
18
18
12
13
14
6
5
9
8
10
11
15
5
3
19
8
7
13
14
B
A
View:A View:B
2
3
4
5
6
1
8
7
9
10
11
12
13
14
15
16
17
18
19
