Loading the Imaging Film
18
7

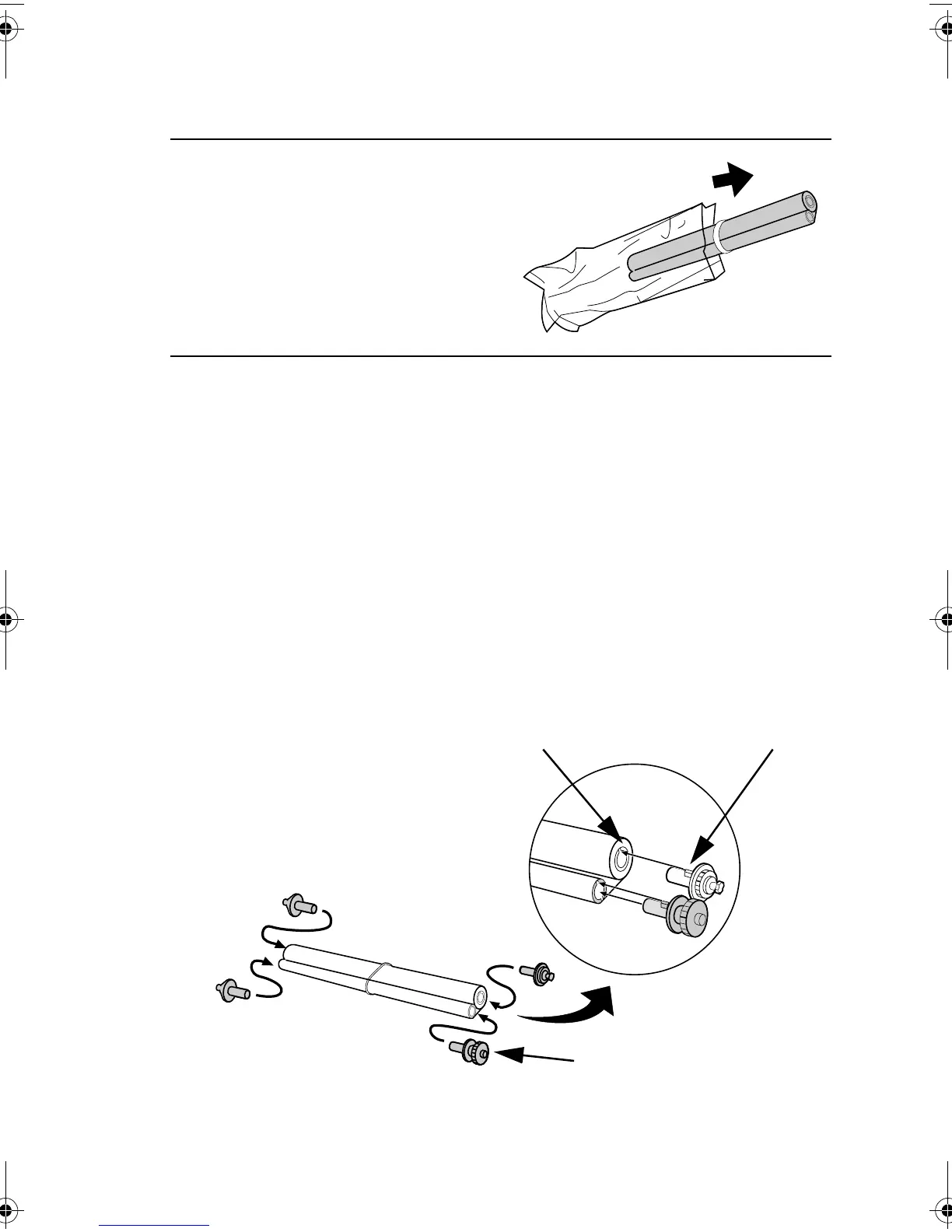

Insert the large gear into the green end
of the empty spool. Make sure the two
protrusions on the large gear fit firmly
into the slots in the end of the spool.
Insert the remaining three gears into
the spools, making sure the protrusion
on each gear fits firmly into one of the
slots in the end of each spool.
• If needed, pull the spools apart
slightly to allow the gears to fit (the
band will stretch).
6
Remove the new roll of imaging film
from its packaging.
• Do not yet remove the band that
holds the rolls together.
Slot
Protrusion
Large gear
