SHE EM - Mounting Options; Scope of Delivery; Mounting Accessories; Mounting

19
02/13424999459
SHE chain drive EM/S/MKAZ/UL

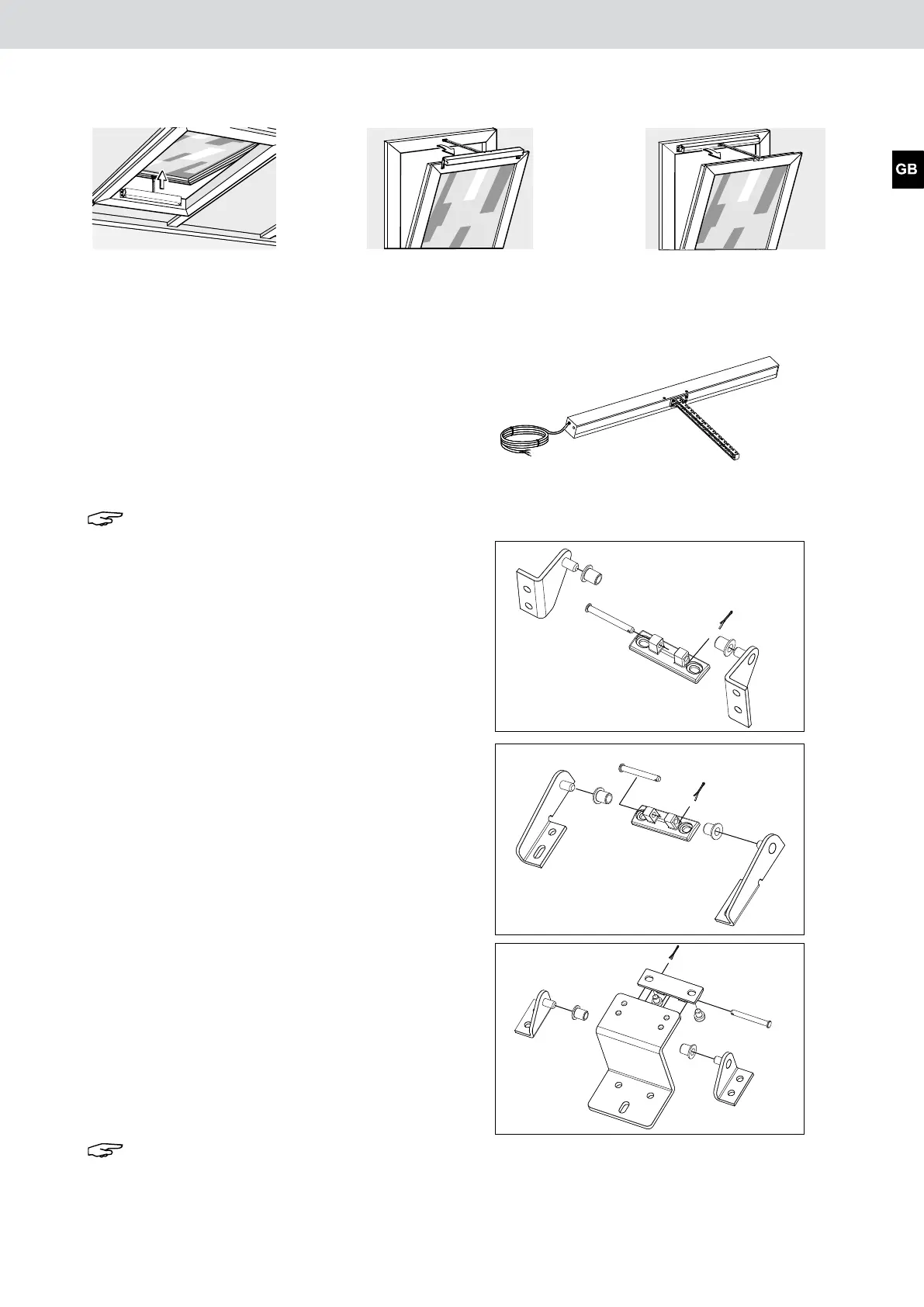

4 Mounting options
5 Scope of delivery
1 x SHE chain motor EM/S/MKAZ/UL
1 x
Power cabel PVC, 6 x 0,82 mm²,
approx. 6.5 feet (2 m) long
6 Mounting accessories
Note: The mounting accessories are not included
, please order separately.
Version 1. for mounting on the roof window
1 Swivel bracket SBEM/DF
2 Bearing bush
3 Hinge bracket
4 Pin
5 Locking pin
Version 2. for bottom-hung windows sash mounting
1SwivelbracketSBEM/KF0(ushmounted)or
swivel bracket SBEM/KF10 (with 0,39 inchprojection)
or SBEM/KF15 (with 0,59 inch projection)
2 Bearing bush
3 Hinge bracket
4 Pin
5 Locking pin
Version 3. for tilt window frame mounting
1SwivelbracketwithangleSBEM/R0(ushmounted)or
swivel bracket SBEM/R10 (with 0,39 inch projection) or
SBEM/R15 (with 0,59 inch projection)
2 Bearing bush
3 Hinge bracket
4 Pin
5 Locking pin
7 Mounting
Note: Minimum installation height
In the case of automatically opening and closing window sashes below a height of 8 Feet (2.44 m), suitable
structural or technical measures must be taken to prevent people from getting trapped.
1
1
2
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
1
2
Version 1: mounting on the
roof window
Version 2: bottom hung window
sash mounting
Version 3: Tilt windows frame
mounting
