SHE EM - Installation of Roof Windows

20 02/13424999459
SHE chain drive EM/S/MKAZ/UL

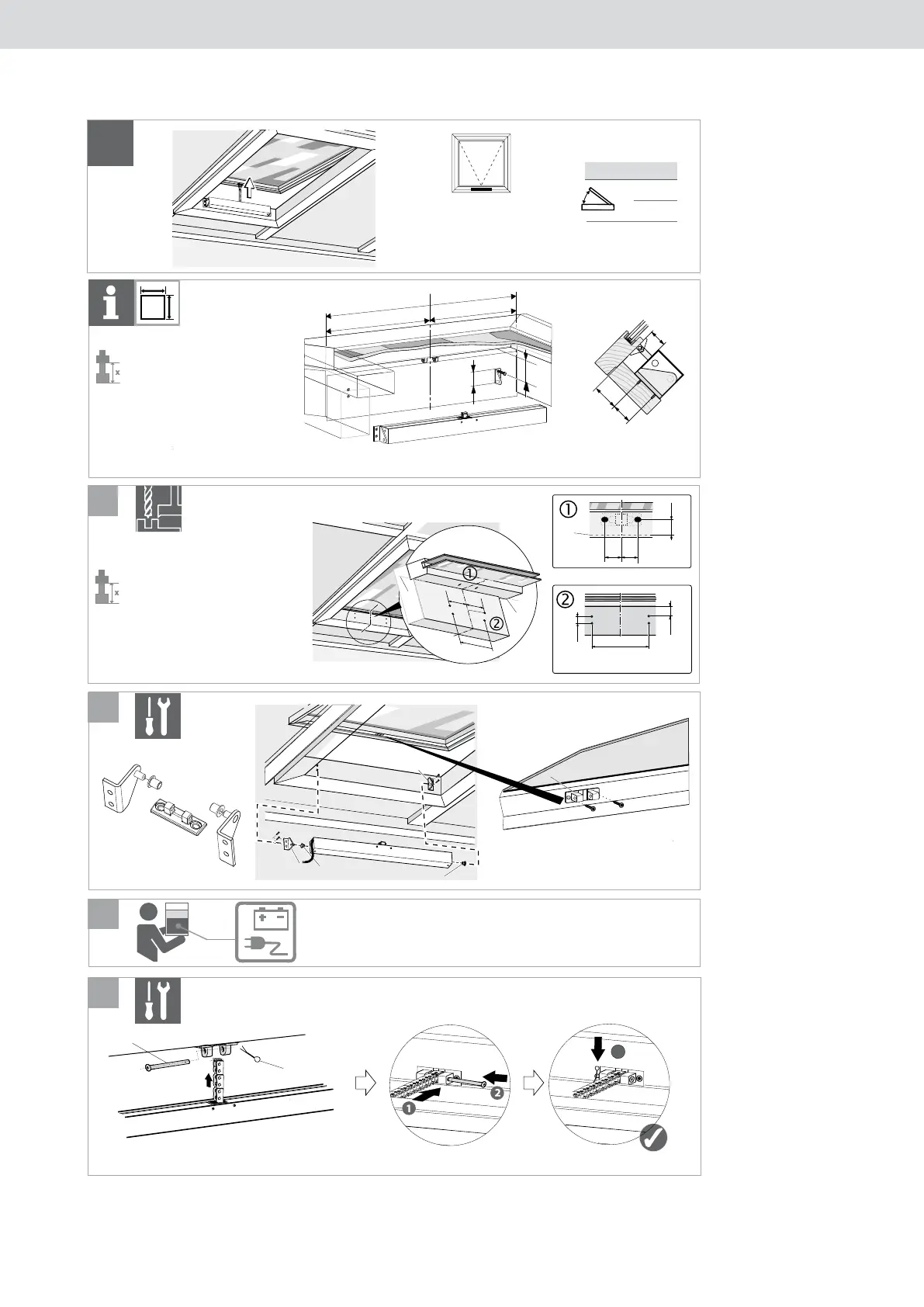

7.1 Installation of roof windows
Montage am Dachfenster
A
B
C
A/2
A/2
X= 21-511mm: A min. = 868mm
X= 21-603mm: A min. = 1060mm
X= 21-810mm: A min. = 1060mm
B = 40mm
C = 23mm
1
k
k
Z
Y/2
Y/1
k
Z
4
4
3
2
2
4
4
3
1
1
2
6
5
4
3
6
5
V1
1
3
B = 1.57 inch C = 0.91 inch
0.79 inch
1.1 inch
0.79 inch
0.71 inch
0.9 inch
0.59 inch
0.71 inch
0.9 inch
X = 12.87 inch stroke
A = 23.31 inch
X = 16.5 inch stroke
A = 26.97 inch
X = 20.12, 23.74 inch stroke
A = 34.17 inch
X = 31.89 inch stroke
A = 41.73 inch
X = 12.87 inch stroke
Y/1 = Y/2 = 11.16 inch
Z = 22.32 inch
X = 16.5 inch stroke
Y/1 = Y/2 = 12.97 inch
Z = 25.94 inch
X = 20.12, 23.74
inch stroke
Y/1 = Y/2 = 16.59 inch
Z = 33.19 inch
X = 31.89 inch stroke
Y/1 = Y/2 = 20.37 inch
Z = 40.75 inch
