SHE EM User Manual

21
02/13424999459
SHE chain drive EM/S/MKAZ/UL

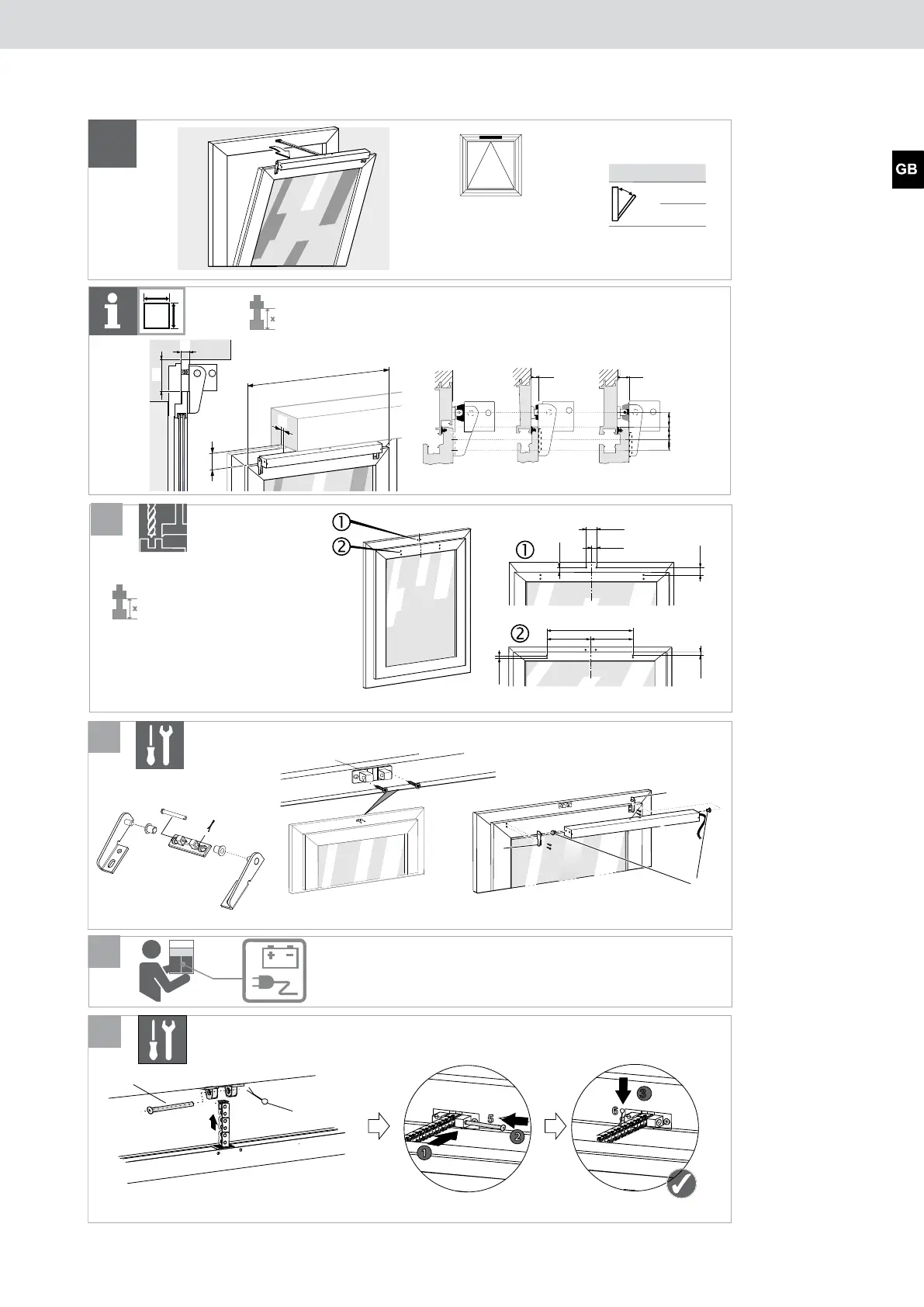

7.2 Botton hung window sash mouting
V2
Montage am Kippfenster (Flügelmontage)
40
40
40
In
Out
A
B
C
1
Z
Y/1 Y/2
1
2
4
3
2
1
2
3
4
4
5
6
C
B
6
5
4
3
6
5
1
3
B > 1.5 inch C = 0 inch (SBEM-KF0)
C = 0.39 inch (SBEM-KF10)
C = 0.59 inch (SBEM-KF15)
0.39 inch
0.59 inch
SBEM-KF0
SBEM-KF10
SBEM-KF15
0.73 inch
0.63 inch
0.59 inch
0.79 inch
0.73 inch
0.59 inch
0.63 inch
1.36 inch
1.57 inch
X = 12.87 inch stroke: A = 22.09 inch
X = 16.5 inch stroke: A = 25.71 inch
X = 20.12, 23.74 inch stroke: A = 32.95 inch
X = 31.89 inch stroke: A = 40.47 inch
X = 12.87 inch stroke:
Y/1 = Y/2 = 10.45 inch
Z = 20.91 inch
X = 16.5 inch stroke:
Y/1 = Y/2 = 12.26 inch
Z = 25.53 inch
X = 20.12, 23.74 inch stroke:
Y/1 = Y/2 = 15.89 inch
Z = 31.77 inch
X = 31.89 inch stroke:
Y/1 = Y/2 = 19.64 inch
Z = 39.29 inch
