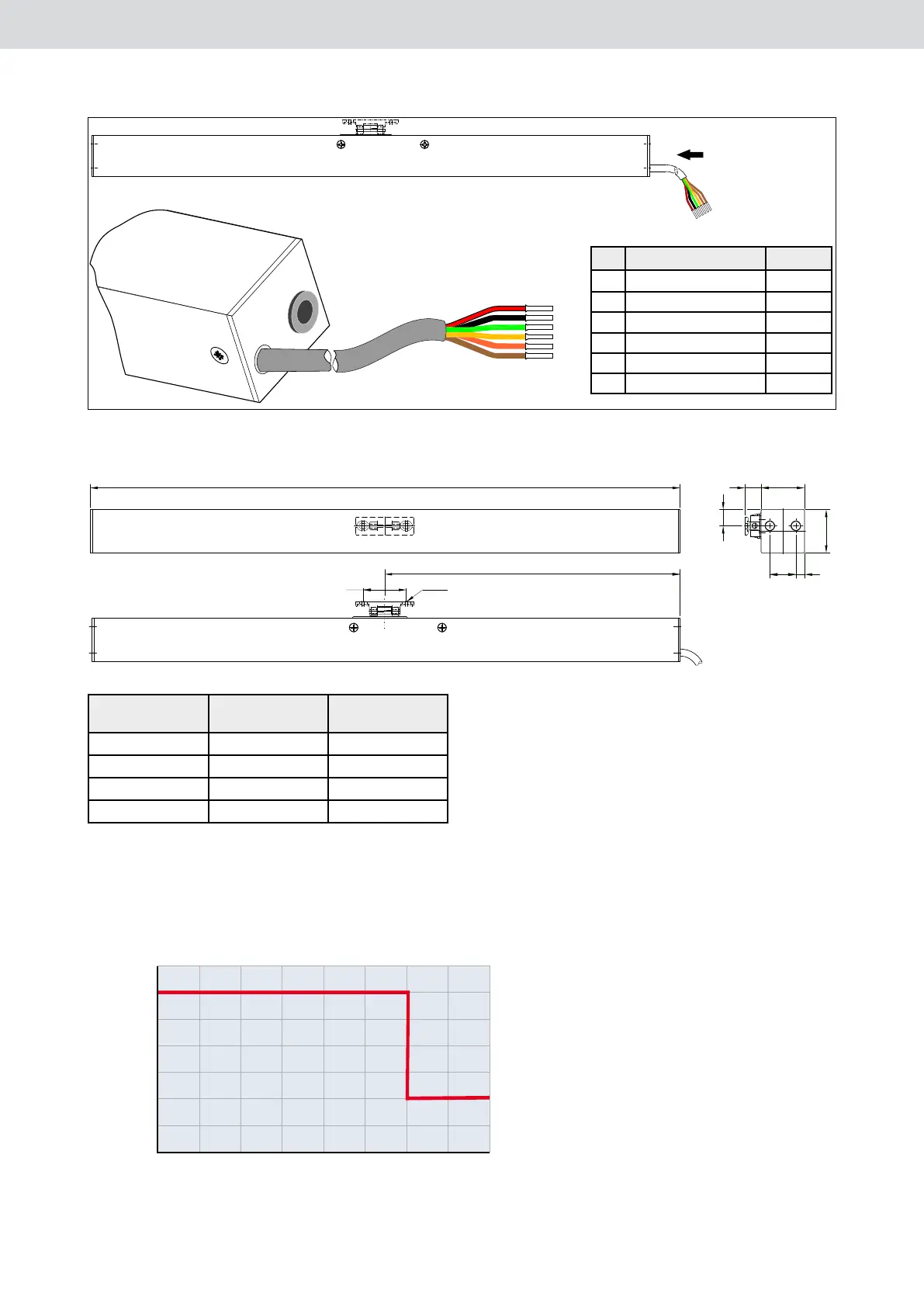

SHE EM - Power Cable Function and Wire Color; Drawing; Force-Distance Diagram

24 02/13424999459
SHE chain drive EM/S/MKAZ/UL
9 Drawing
10 Force-distance diagram
22.5
45
67.5
3.90
0
7.9 11.8 15.7 19.7 23.6 27.6 31.5
Pressing force in lbf
Stroke in inch
B
A
All measures in inch
0.6
1.57
0.94
0.31
0.6
1.57
Ø0.21.57
Power cable
8.2 Function and wire color of the pre-assembled power cable
A
A
1
2
3
4
5
6
No. Function wire color
1 +24V [open] | 0 V [close] red
2 0 V [close] +24 V [open] black
3 Signal contact open green
4 Signal contact open yellow
5 Signal contact close orange
6 Signal contact close brown
Chain drive Measure A [inch] Measure B [inch]
EM/327 25.04 10.73
EM/419 32.28 12.54
EM/511, 603 39.80 16.16
EM/810 39.80 19.90
