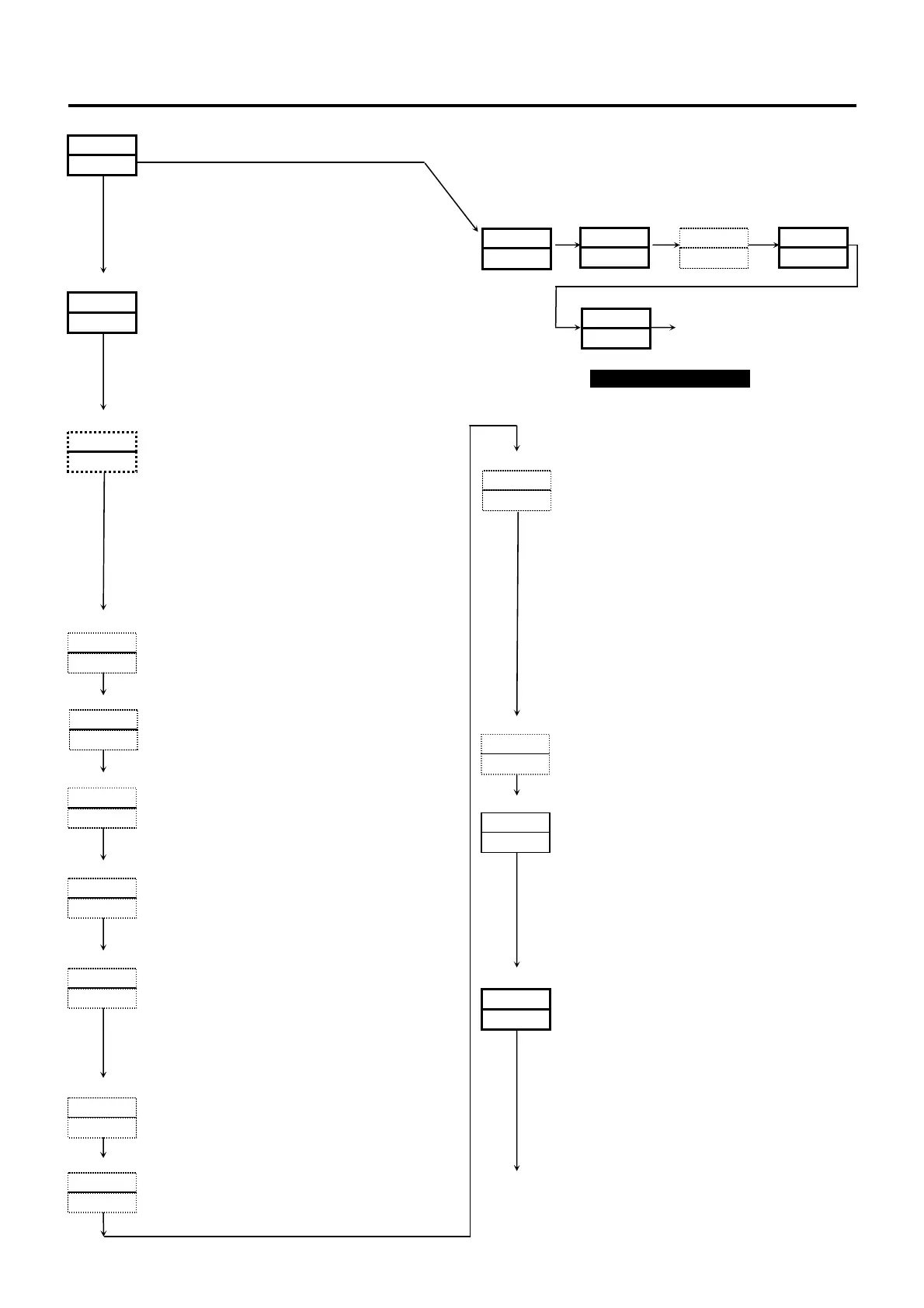

6. Screen explanation and setting items
0-0 Basic screen
ģÄ
Initial values: 0 or measuring range lower limit values
Setting range: Within measuring range (within SV limiter)
Measured value (PV) is displayed at the top and target set value (SV) is
displayed/modified on the bottom.
For details, see 5-5, section (1).
0-1 Standby action setting screen
Initial value: rSt ()
Setting range: rSt, run ()
Display only if the “4-13 DI mode setting screen” is set to RUN1 or
RUN2.
rSt (reset): Action stop, run (run): Selects execution action.
For standby action, see 5-5, section (4).
0-2 Output (OUT) monitoring screen
Displays measured value (PV) on the top and control output value of
output on the bottom.
Output is monitored when in automatic mode and setting is modified
when in manual mode.
Manual output setting range: 0.0–100.0 (%)
* Output monitoring screens (OUT) and automatic/manual output
Ɣ You can toggle between automatic and manual by pressing and
holding the ģ key for at least 3 seconds on the output screen, or
you can press the ģand Ģ keys simultaneously.
Ɣ The MAN lamp flashes during manual output.
For details, see 5-5, section (2).
0-3 Execution step No. monitoring screen
Displays execution step No. during program operation.
SV decimal point flashes when in hold (HLD) mode.
0-4 Remaining time of step monitoring screen
Displays remaining time of step during program operation.
SV decimal point flashes when in hold (HLD) mode.
0-5 Number of pattern executions monitoring screen
Displays number of patterns executed during program
operation.
SV decimal point flashes when in hold (HLD) mode.
0-6 Execution PID No. monitoring
Displays PID No. being executed.
Displayed only in RUN mode.
SV decimal point flashes when in hold (HLD) mode.
0-7 Ramp process halting screen
Initial value: run
Setting range: StoP, run
Note: Displayed during ramp process.
Halts ramp process.
Note: For information on ramp value setting, see 1-5–1-8 screens.
0-8 Hold execution setting screen
You can turn hold ON/OFF during program operation.
The program is temporarily halted by hold ON.
0-9 Advance execution setting screen
You can execute advance during program operation.
If ON is selected, the step currently being executed is completed and the
program forcibly jumps to the next step.
1-0 Initial screen 2-0 Initial screen 3-0 Initial screen 4-0 Initial screen
ģ ģ
ģ
5-0 Initial screen
ģ 0-0
FIX event values setting
FIX event is an event of fixed value control (FIX mode).
Program control event values are set by the program
screen group.
0-10 FIX event 1 (EV1) set value setting screen
Event No. and type of event are displayed on the top.
Initial value:
Higher limit deviation alarm (Hd): 2000 (digit)
Lower limit deviation alarm (Ld): -1999 (digit)
Outside higher/lower limit deviation alarm (od): 2000 (digit)
Inside higher/lower limit deviation alarm (id): 2000 (digit)
Higher limit absolute value alarm (HA): Measuring range higher limit value
Lower limit absolute value alarm (LA): Measuring range lower limit value
Setting range:
Higher/lower limit deviation alarm: -1999–2000 (digit)
Outside or inside higher/lower limit deviation alarm: 0–2000 (digit)
Higher/lower limit absolute value alarm: Within measuring range
Displayed when EV1 alarm code Hd–LA are assigned,
and action point of allocated alarm type is set.
For details, see 5-5, section (5).
The screens are masked in the program mode (FIX OFF).
0-11 FIX event 2 (EV2) set value setting screen
Same as 0-10 screen above except EV2 instead of EV1.
The screens are masked in the program mode (FIX OFF).
0-12 Auto tuning (AT) action control screen
Initial value: oFF
Setting range: oFF, on
AT is executed by on selection and is canceled by oFF selection.
This screen is not displayed for manual output or for output 1
proportional band (P) OFF setting.
Not displayed if STANDBY is set for 0-1 standby action setting
screen. During AT execution, key operation other than AT
cancel and key lock setting is not accepted.
For AT action, see 5- 5, section (3).
0-13 Latching release screen
Initial value: rSt1
Setting range: rSt1, rSt2, ALL
Note: Displayed only when event latching is selected.
If event latching is ON, even if event conditions no longer exist
after event action, the event continues to be output. (Event selfhold)
Cancels self-hold of the event.
Setting and corresponding event No:
rSt1: EV1, rSt2: EV2
ALL: EV1, EV2, and all
If latching can be canceled, all SV lamps on the concerned setting
screen flash. Pressing the ģ key cancels the concerned event.
To 0-0 Basic screen
jm
h
jm
©mrh
|
jm
jm
hi
jm
h²hh
jm
i
~i
jhhh
~j
qqq
~
~
~
jm
¦¦i
|
|
~
~
~
|
i
Å
Å
Å
Å
Å
Å
Å
Å
Å
Å
Å
Å
Å
Å
|
i
To Next Page
