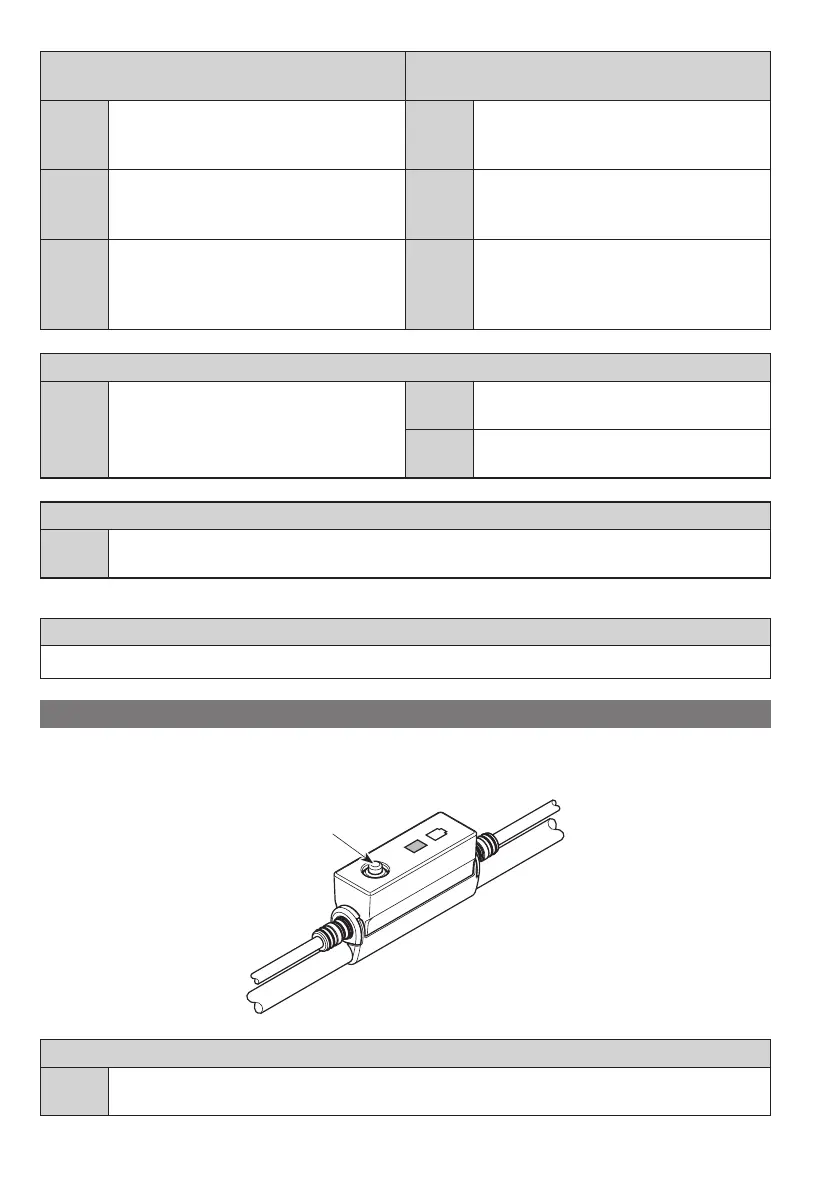

Left switch
(default: for assistance)
Right switch
(default: for electronic shifting)
Assist-X
At riding: increase assistance.
At setting: move the setting menu cursor,
adjust settings,etc.
Shift-X
At riding: shift gears to increase pedal
resistance.
Assist-Y
At riding: decrease assistance.
At setting: move the setting menu cursor,
adjust settings,etc.
Shift-Y
At riding: shift gears to decrease pedal
resistance.
Assist-A
At riding: change the travel data display on
the cycle computer.
At setting: switch between the screens, confirm
settings.
Shift-A
At riding: switch between automatic and
manual gear shifting (for electronic
internal geared hub).
Cycle computer (SC-E6100)
Function
button
At riding: change the travel data display on
the cycle computer.
At setting: switch between the screens, confirm
settings.
Light
button
Turn the lights ON/OFF.
Power
button
Turn the power ON/OFF.
Cycle computer (SC-E7000)
Function
button
At riding: change the travel data display on the cycle computer.
At setting: switch between the screens, confirm settings.
NOTE
When the bicycle uses a rear derailleur, be sure to shift gears while pedaling.
Junction [A] (EW-EN100)
EW-EN100 is used instead of cycle computer.
It is attached to the brake outer casing or brake hose and located near the handle bar.
Button
Junction [A]
Button
Press: change the assist mode each time you press it.
Press and hold (about 2 seconds): turn the light ON/OFF
