19
Installation/removal

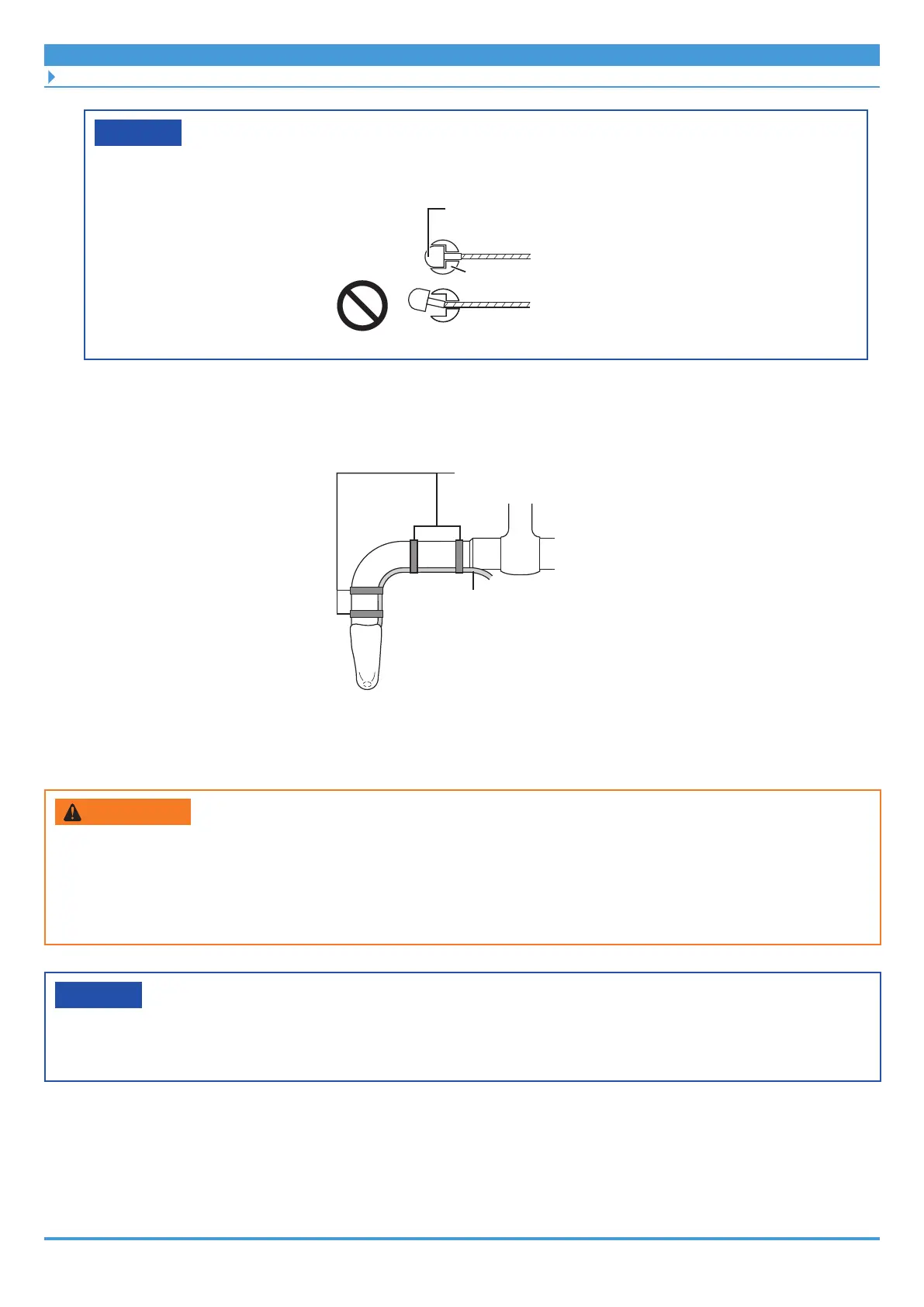

Installing the SM-CB90
NOTICE
• Make sure that the inner end is firmly fit into the cable hook.
Cable hook
2. Temporarily secure the outer casing to the handlebar (by using tape or
a similar material).
Outer casing
Installing the SM-CB90
WARNING
• The cable adjustment nut and quick release lever are not provided with the BR-
RS811-R; be sure to use the SM-CB90 (cable adjuster). When the brake shoes are worn
down, it becomes impossible to adjust the shoe clearance by hand. Also confirm that
the SM-CB90 is in the “Close” position before riding the bicycle.
NOTICE
• Be sure to install the SM-CB90 so that it does not contact the frame when the
handlebars are turned.
To Next Page
